American Precision Die Casting: A Complete Guide

American precision die casting is a high-pressure metal forming method that forces molten aluminum or zinc alloy into hardened steel dies to produce dimensionally consistent, complex parts. It delivers tight tolerances, high surface quality, and excellent repeatability at production volumes. For engineers and procurement managers sourcing precision components, understanding this process is essential to making the right manufacturing decisions.

This guide covers everything you need to know: how the process works, which materials and tolerances are achievable, what common pitfalls to avoid, and what best practices separate good castings from great ones. Whether you’re evaluating suppliers or designing a new part for production, this article gives you a practical, no-fluff foundation.

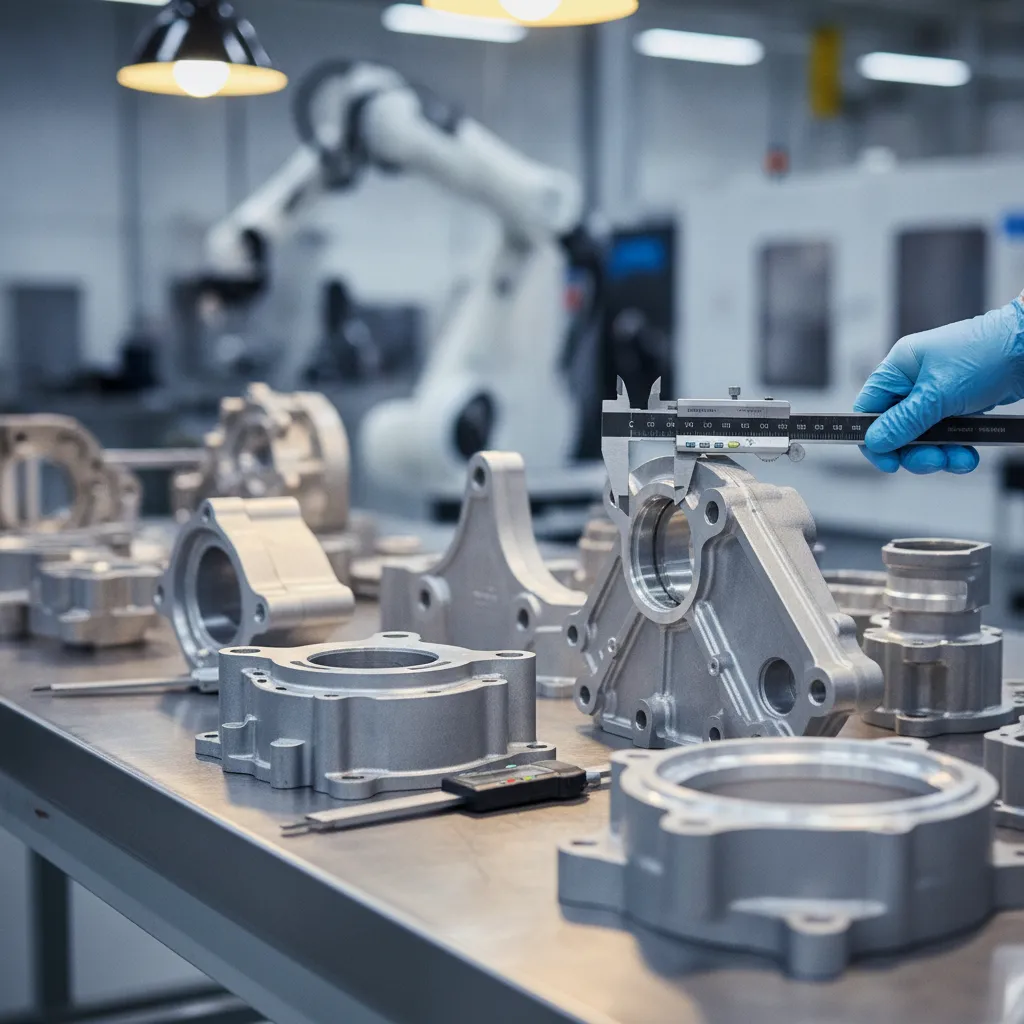

What Is American Precision Die Casting?

American precision die casting is a manufacturing process that injects molten metal under high pressure into a reusable steel mold (called a die) to produce near-net-shape metal parts with tight dimensional tolerances and smooth surface finishes. It is one of the most efficient methods for high-volume production of complex metal components.

Definition and Core Characteristics

The term “precision” distinguishes this process from conventional die casting by its emphasis on tighter tolerances, more controlled process parameters, and stricter quality inspection. According to the North American Die Casting Association (NADCA), die casting is defined as a versatile process for producing engineered metal parts by forcing molten metal under high pressure into reusable steel molds. Precision die casting takes that foundation and applies tighter process controls throughout.

Key characteristics of the process include:

• High injection pressures ranging from 1,000 to 30,000 psi, depending on alloy and part geometry
• Rapid cycle times, often producing parts in seconds per shot
• Dimensional repeatability across thousands or millions of parts
• Ability to produce thin walls, complex geometries, and integrated features in a single operation
• Surface finishes typically in the range of Ra 1.6 to 3.2 microns as-cast

Why “American” Precision Die Casting Matters

The “American” designation carries real significance in 2026. Domestic production means compliance with U.S. manufacturing standards, shorter supply chains, and easier quality auditing. The reshoring trend that accelerated through 2024 and 2025 has made American-made precision castings especially valuable for defense, medical, and automotive customers who need traceable, auditable supply chains.

Aluminum alloy 380 is the dominant material in U.S. precision die casting operations. It offers an excellent balance of fluidity during casting, mechanical strength, and corrosion resistance. Other common alloys include A383, A360, and zinc-based alloys like Zamak 3 and Zamak 5 for smaller, more intricate parts.

How the Process Works

Precision die casting works by melting a metal alloy and injecting it under high pressure into a hardened steel die, where it solidifies rapidly into the shape of the mold cavity, then gets ejected and inspected before moving to secondary operations.

Step-by-Step Process Breakdown

The process follows a defined sequence. Each step directly affects the dimensional accuracy and surface quality of the finished part.

1. Die preparation: The steel die halves are cleaned, lubricated with a release agent, and closed under hydraulic clamping force. Clamping tonnage ranges from 100 to 4,000 tons depending on part size.
2. Metal melting: The aluminum or zinc alloy is melted in a furnace and held at a precise temperature. For aluminum alloy 380, that’s typically 620–680°C.
3. Injection: Molten metal is ladled or pumped into a shot sleeve, then a hydraulic plunger drives it into the die cavity at high velocity and pressure. This happens in milliseconds.
4. Solidification: The metal cools and solidifies in the die, typically within 2–30 seconds depending on wall thickness and alloy.
5. Ejection: Die halves open and ejector pins push the casting out. The part retains the shape of the cavity with high fidelity.
6. Trimming: Flash (thin excess metal at parting lines) is removed by trimming dies or manual deflashing.
7. Inspection: Dimensional checks, visual inspection, and non-destructive testing (NDT) methods like X-ray or dye penetrant are applied per quality plan.
8. Secondary operations: CNC machining, drilling, tapping, anodizing, powder coating, or assembly are performed as required.

Hot Chamber vs. Cold Chamber Die Casting

There are two primary machine configurations used in American precision die casting operations.

Hot chamber machines keep the injection mechanism submerged in molten metal. They’re faster and work best with low-melting-point alloys like zinc and magnesium. Cycle times are short, often under 10 seconds.

Cold chamber machines require the metal to be ladled into a separate shot sleeve before each injection. They handle higher-temperature alloys like aluminum. They’re slower than hot chamber machines but essential for aluminum die casting.

Pro Tip: When designing a part for precision die casting, draft angles of 1–3 degrees on vertical walls are essential. Without adequate draft, ejection forces can damage the part surface and reduce die life significantly. Work with your casting engineer before finalizing the CAD model.

Industry analysts suggest that cold chamber aluminum die casting accounts for the majority of American precision die casting production by volume, driven by the automotive and defense sectors’ preference for aluminum’s strength-to-weight advantages.

Key Benefits of American Precision Die Casting

American precision die casting delivers high-volume, dimensionally consistent metal parts faster and more cost-effectively than most competing processes, with tolerances and surface finishes that often eliminate or reduce secondary machining requirements.

Production Efficiency and Cost Advantages

Die casting is one of the few processes where complexity is essentially free. Adding ribs, bosses, holes, and threaded inserts into the die design costs the same per-part as a simple block. That’s a fundamental economic advantage over machining, where every feature adds cycle time and cost.

Key production benefits include:

• Cycle times of 30–90 seconds per part for aluminum, enabling thousands of parts per day per machine
• Near-net-shape output that minimizes raw material waste compared to subtractive machining
• Long die life, typically 100,000 to 500,000 shots for aluminum dies, spreading tooling cost over large quantities
• Ability to produce multiple parts per shot with multi-cavity dies, further reducing per-unit cost
• Consistent part-to-part repeatability that simplifies downstream assembly and reduces inspection burden

Quality and Material Performance

Precision die cast aluminum parts offer mechanical properties that satisfy demanding structural and thermal requirements. Alloy 380 delivers a tensile strength of approximately 317 MPa and a yield strength of 159 MPa, which is more than adequate for most automotive and industrial enclosure applications.

From a quality standpoint, American precision die casting operations certified to ISO 9001 and NADCA standards provide:

• Documented process controls with statistical process control (SPC) monitoring
• Full dimensional inspection reports against customer drawings
• Material certifications with chemical composition traceability
• Non-destructive testing options including X-ray, dye penetrant, and pressure testing

In practice, a well-run American precision die casting operation can hold as-cast tolerances of ±0.05mm on critical dimensions. Post-machining on critical bearing bores or mating surfaces brings those features to ±0.001mm, meeting the tightest engineering requirements.

Pro Tip: Don’t specify post-machining tolerances on every feature. Identify the 3–5 truly critical dimensions that drive fit and function, apply tight tolerances only there, and let the remaining features hold as-cast tolerances. This cuts machining cost by 20–40% without compromising part performance.

Common Challenges and Mistakes

The most common failures in precision die casting projects stem from poor part design, inadequate supplier qualification, and misaligned tolerance expectations, not from the process itself.

Design and Engineering Pitfalls

A common mistake is designing a die cast part as if it were a machined part. Die casting has specific design rules that, when ignored, lead to porosity, sink marks, cold shuts, and dimensional drift. These defects are expensive to correct after tooling is cut.

Watch for these design errors:

• Uniform wall thickness violations: Abrupt changes in wall thickness create thermal gradients during solidification, leading to shrinkage porosity. Target wall thickness of 2–4mm for aluminum and maintain transitions gradually.
• Insufficient draft angles: Walls without draft stick in the die, causing surface tears and ejection damage. A minimum of 1° on exterior walls and 2° on interior walls is standard practice.
• Undercuts without side actions: Undercuts require side cores or lifters in the die, which add tooling cost. Redesigning to eliminate undercuts can save thousands in die cost.
• Over-specified tolerances: Applying ±0.025mm tolerances to non-functional features inflates machining cost with no quality benefit.
• Ignoring parting line placement: Poor parting line location creates flash on functional surfaces and complicates deflashing operations.

Supplier Qualification Mistakes

One pitfall to watch for is selecting a die casting supplier based on price alone without verifying process capability. A supplier quoting a low piece price but lacking SPC monitoring, proper furnace temperature controls, or calibrated inspection equipment will deliver inconsistent parts that cost far more in rework and field failures.

Qualification criteria to verify before awarding a precision die casting program:

• ISO 9001 certification with a current, audited quality management system (QMS)
• NADCA membership and adherence to NADCA Product Specification Standards
• Documented process capability studies (Cpk values of 1.33 or higher on critical dimensions)
• Calibrated CMM (coordinate measuring machine) equipment with traceable calibration records
• Demonstrated experience with your specific alloy and part geometry

A manufacturing client recently faced a situation where an unqualified supplier delivered 10,000 aluminum housings with porosity defects that only appeared during pressure testing at final assembly. The rework and delay cost exceeded the tooling investment. Proper upfront supplier qualification would have prevented it entirely.

Best Practices for 2026

The most effective precision die casting programs in 2026 combine rigorous design-for-manufacturing (DFM) reviews, real-time process monitoring, and integrated secondary operations under one manufacturing partner to eliminate handoff errors and compress lead times.

Design for Manufacturing (DFM) Integration

DFM (design for manufacturing) is the practice of optimizing a part’s design for the specific process that will produce it. For die casting, this means involving your casting supplier during the concept and detail design phases, not after the drawing is finalized.

Effective DFM for precision die casting includes:

• Running mold flow simulation (using tools like MAGMASOFT or ProCAST) to predict fill patterns, thermal gradients, and porosity risk before cutting steel
• Reviewing draft angles, wall transitions, and parting line placement with the die designer
• Identifying which dimensions require post-machining and which can hold as-cast tolerances
• Evaluating whether insert casting (embedding steel inserts during casting) can replace secondary assembly operations
• Confirming secondary finishing requirements (anodizing, powder coating, chromate conversion) early, since surface treatment specifications affect dimensional allowances

Process Control and Quality Assurance

As of 2026, leading this method operations use real-time shot monitoring systems that capture injection velocity, pressure, and fill time for every shot. Deviations from established process windows trigger automatic alerts before defective parts reach the next operation.

At GC INDUS, we’ve found that integrating die casting with CNC post-machining under one roof eliminates the dimensional variation that accumulates when parts transfer between suppliers. Our full inspection protocols, including CMM measurement and surface finish verification, ensure every part ships within tolerance.

Best practices for quality assurance in 2026:

• Establish a Control Plan aligned to AIAG (Automotive Industry Action Group) APQP (Advanced Product Quality Planning) methodology for automotive programs
• Use SPC on critical dimensions with control charts updated in real time
• Conduct First Article Inspection (FAI) per AS9102 or customer-specific requirements before production release
• Implement a non-conformance management system with root cause analysis and corrective action tracking
• Audit die condition and wear at defined shot count intervals to prevent gradual dimensional drift

Pro Tip: Request a Process Capability Study (Cpk report) from your die casting supplier before approving production. A Cpk of 1.33 means the process produces defective parts at a rate of roughly 64 parts per million. A Cpk below 1.00 means your tolerances are wider than the process variation — parts will fail inspection regularly.

Frequently Asked Questions

1. What is american precision die casting used for?

this strategy is used to produce complex, high-volume metal components for automotive (transmission housings, engine brackets, EV battery enclosures), military and defense hardware, electronics enclosures, industrial equipment, and consumer products. Any application requiring dimensionally consistent aluminum or zinc parts at production scale is a candidate for this process.

2. What tolerances can precision die casting achieve?

As-cast, precision die casting typically holds tolerances of ±0.025mm to ±0.1mm on critical dimensions, depending on part size, alloy, and die condition. For tighter requirements, post-casting CNC machining on critical features can achieve tolerances as tight as ±0.001mm. Not every feature needs machining, so specifying tolerances selectively is key to cost control.

3. What materials are used in American precision die casting?

Aluminum alloys are the most common, with alloy 380 being the industry standard for general-purpose applications. A383 and A360 are used for thin-wall and pressure-tight parts respectively. Zinc alloys (Zamak 3, Zamak 5) are preferred for small, intricate parts requiring very tight tolerances. Magnesium alloys are used where weight reduction is the primary driver.

4. How does precision die casting compare to sand casting?

Precision die casting produces tighter tolerances, smoother surfaces, and thinner walls than sand casting, but requires higher tooling investment. Sand casting is more economical for low volumes and large parts, while die casting wins on cost-per-part at volumes above roughly 5,000 units annually. Die casting also offers better dimensional repeatability across a production run.

5. What is the typical lead time for a precision die casting program?

Die tooling fabrication typically takes 8–16 weeks depending on die complexity and supplier capacity. First article samples follow within 2–4 weeks of tooling completion. Production lead times after tooling approval are generally 3–6 weeks per order. Programs with integrated post-machining and surface treatment can add 1–3 weeks depending on operations required.

6. What quality certifications should a precision die casting supplier hold?

ISO 9001 is the baseline quality management certification required by most customers. IATF 16949 is required for automotive supply chains. ISO 13485 is mandatory for medical device applications. NADCA membership and adherence to NADCA Product Specification Standards is a strong indicator of process discipline. Suppliers serving defense customers may also need AS9100 certification.

7. Can precision die casting produce parts with internal cavities or undercuts?

Internal cavities can be created using removable cores, though this adds tooling cost and complexity. Undercuts require side actions (slides) in the die, which are achievable but increase die cost and cycle time. Redesigning to minimize or eliminate undercuts is always the preferred approach. Complex internal channels are often better addressed through post-casting drilling or by splitting the part into two cast halves.

8. What secondary operations are commonly performed after die casting?

Common secondary operations include CNC machining (milling, drilling, tapping), deburring and deflashing, heat treatment for improved mechanical properties, and surface treatments such as anodizing, chromate conversion coating, powder coating, and electroplating. Assembly operations, including press-fit inserts, fastener installation, and sub-assembly joining, are also performed by full-service precision die casting suppliers.

Conclusion

this approach remains one of the most capable and cost-effective processes for producing complex, high-volume metal components with consistent dimensional accuracy. The combination of high injection pressures, precision steel tooling, and rigorous process controls makes it the preferred choice across automotive, defense, electronics, and industrial applications.

Success in this process comes down to three things: designing parts specifically for die casting, selecting a supplier with verified process capability and relevant certifications, and specifying tolerances intelligently. Get those three right, and die casting delivers excellent value at scale.

At GC INDUS, we combine die casting with full CNC post-machining, surface treatment, and assembly under one roof, holding tolerances to ±0.001mm and shipping to 300+ global clients with full inspection documentation. Whether you need a single prototype or a production run, our ISO 9001 and ISO 13485 certified processes ensure your parts arrive right, on time, every time. Request a fast quote to discuss your precision die casting requirements with our team.
