Chip Management in High-Speed CNC Operations

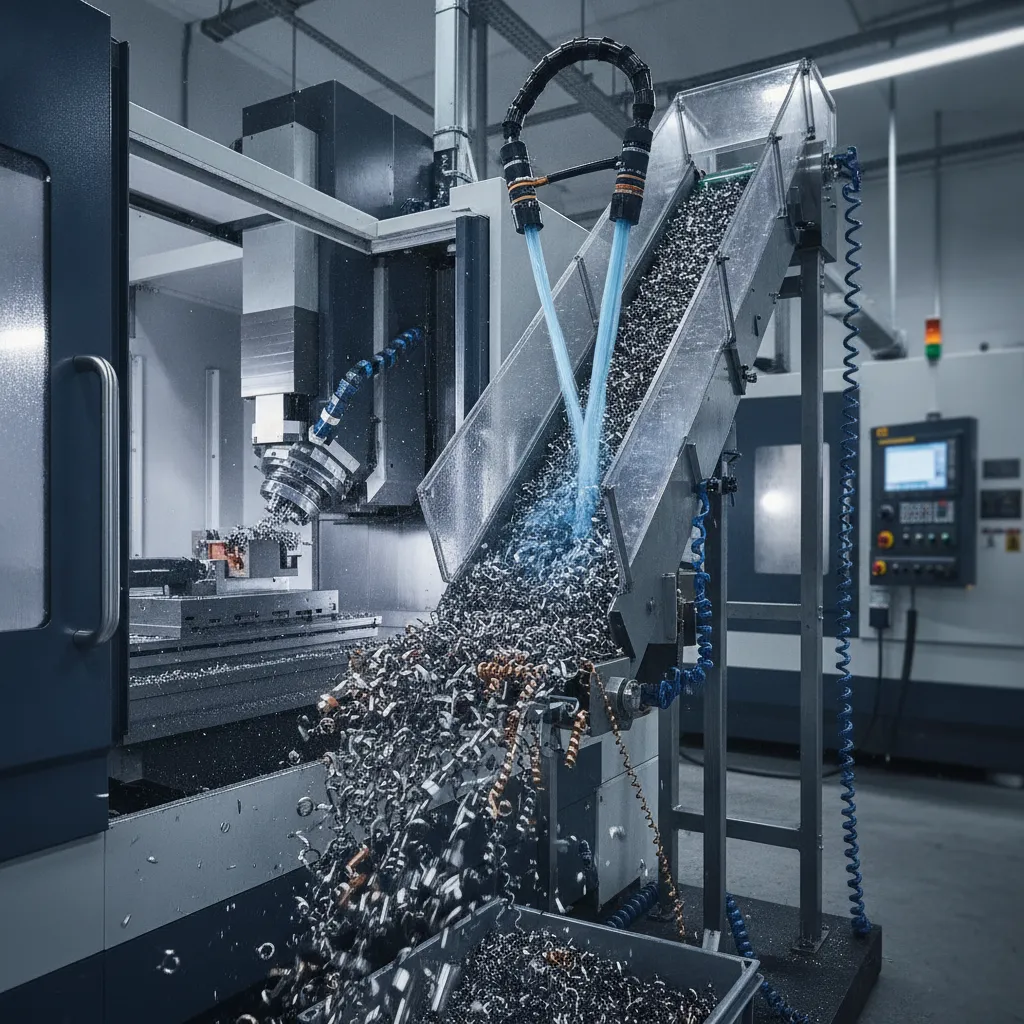

Understanding chip management CNC operations is essential for any shop serious about production consistency. Chip management in CNC operations refers to the systematic control, removal, and disposal of metal chips produced during machining. Without it, chips accumulate around cutting zones, causing tool breakage, poor surface finish, and unplanned downtime. Effective chip management combines the right cutting parameters, coolant strategy, and removal systems, and directly determines tool life, part quality, and how consistently a shop hits its production targets.

According to DATRON’s CNC chip management resource, addressing chip evacuation proactively — rather than reactively — is one of the highest-leverage improvements a machining operation can make. This is particularly relevant for chip management CNC operations.

What Is Chip Management in CNC Operations and Why Does It Matter?: chip management CNC operations

Chips are the material a cutting tool removes from a workpiece, and how they form, move, and exit the machine determines whether a production run succeeds or fails.

Every CNC cutting operation produces one of three chip types, each behaving differently inside the machine envelope. Continuous chips form long, ribbon-like strands that tangle around tooling if not broken or evacuated quickly. Segmented chips, common in harder alloys, break into curved sections that pile up in pockets and chip conveyors. Discontinuous chips fracture into small, loose pieces that scatter across the work zone and can be re-ingested by the cutter on the next pass. Material, feed rate, cutting speed, and tool geometry all determine which type a given operation produces.

“Chip control is not an afterthought — it is a core process variable. Shops that treat chip evacuation as part of the cutting strategy, not a cleanup task, consistently outperform those that don’t on tool life and surface finish metrics.” — Dr. John Ziegert, Professor of Mechanical Engineering, Clemson University

Common Chip-Related Problems That Disrupt CNC Production: Bird Nesting and Re-Cutting

Chip management in CNC operations is not simply a housekeeping task — it is a production variable. Poor chip control is a leading cause of unplanned CNC downtime, with chip-related tool failures responsible for a significant share of interrupted production runs. Two failure modes dominate: bird nesting, where continuous chips wrap around the spindle or tool holder until the machine faults out, and re-cutting, where evacuated chips re-enter the cutting zone and act as loose abrasives against the insert’s flank face.

Re-cutting is particularly damaging. Chips trapped between the tool and workpiece accelerate flank wear measurably, shortening insert life and degrading surface finish on every subsequent pass. The damage compounds — a worn insert generates worse chips, which cause more re-cutting, which wears the insert faster still. Proper chip management CNC operations protocols break this cycle before it starts.

How Proper Chip Management Extends Tool Life and Reduces Machine Downtime

Effective chip management spans three distinct stages: chip formation control (selecting feeds, speeds, and tool geometry to produce a chip type that evacuates cleanly), chip evacuation (coolant strategy, air blast, and conveyor design), and downstream handling (collection, separation, and recycling of swarf). Shops that treat all three stages as a system, rather than reacting to chip problems after they occur, reduce consumable spend and machine idle time simultaneously.

That cost-control framing matters. A shop running 10 CNC machining centers that cuts average tool changeover frequency by 15% through better chip evacuation recovers dozens of spindle hours per month. The investment is in process discipline, not necessarily in new equipment.

How Chip Accumulation Damages Milling Performance and What to Do About It

Chip buildup degrades surface finish, dimensional accuracy, and tool life faster than almost any other variable in CNC milling operations.

The most common failure mode is bird nesting — chips wrapping around the cutting tool rather than evacuating cleanly. It occurs most often in long-chipping materials like aluminum and austenitic stainless steel, where continuous chip strands tangle in the flutes under high spindle speeds. High-helix end mills (35°–45° helix angle) with polished flutes break the chip earlier and direct it away from the cut zone, significantly reducing wrap frequency compared to standard geometry tools. When considering chip management CNC operations, this point stands out.

Chip re-cutting is a separate but equally damaging problem. When evacuated chips fall back into the cut, they score the workpiece surface and spike cutting forces — the first measurable sign is a sudden increase in spindle load readings on the machine controller. In aluminum, chip re-cutting can shift Ra surface roughness from 0.8 µm to over 3.2 µm in a single pass, pushing finished parts well outside tolerance without any change to the programmed toolpath.

“In high-speed aluminum machining, the difference between a clean cut and a scrapped part often comes down to whether chips are evacuated in the first milliseconds after formation. Coolant pressure and flute geometry are your primary levers.” — Tom Lipton, Senior Applications Engineer, Manufacturing Technology Institute

Troubleshooting Tool Breakage and Poor Surface Finish Caused by Chip Issues

Effective chip management in CNC operations follows a defined diagnostic sequence rather than guesswork. When surface finish degrades or tool life drops unexpectedly, work through these four steps in order:

1. Check chip color and shape against material benchmarks. Discolored or powdery chips in aluminum signal excessive heat; tight curls in steel indicate correct chip formation. Deviation from the expected shape identifies the problem category before any parameter changes.
2. Verify coolant flow rate and nozzle aim. A misaligned nozzle can leave the cut zone dry even when the pump reads normal pressure. Confirm the coolant stream reaches the cutting edge directly, not the shank.
3. Adjust feed per tooth before touching spindle speed. Increasing feed per tooth produces a thicker chip that evacuates more reliably. Reducing speed first is a common mistake — it lowers chip velocity and worsens re-entry risk.
4. Inspect flute geometry for built-up edge (BUE). BUE on the cutting edge alters the effective rake angle and causes erratic chip formation. A 10× loupe inspection takes under two minutes and confirms whether the tool is still serviceable.

How Chip Disposal Frequency Affects Overall Milling Efficiency and Cost

Chip bin overflow is a preventable cause of re-entry contamination and a direct safety hazard. When bins fill past capacity, hot swarf migrates back toward the work envelope — particularly in machines without enclosed chip conveyors — increasing the probability that chips re-enter the cut.

Shops running high-volume aluminum work should empty chip bins at fixed intervals tied to material removal rate, not shift end. A bin emptied every two hours on a high-feed aluminum job costs nothing in downtime; a re-cut surface on a precision part can mean scrapping the entire workpiece. At GC INDUS, chip evacuation schedules are built into the machining process plan for every job, ensuring that tolerance requirements — including parts held to ±0.001mm — are not compromised by a preventable housekeeping lapse. For more information, see Field Marketing Resource Management Challenge.

Best Chip Management Strategies by Material and Machine Type

Chip management CNC operations vary significantly by material and machine — what works for aluminum on a mill will fail on a lathe cutting stainless steel. Tailoring your approach to the specific combination of workpiece material and machine configuration is the foundation of any reliable chip control strategy.

Industry-Specific Approaches for Aluminum, Steel, and Composite Materials

Aluminum produces long, stringy chips that wrap around tooling and re-enter the cut. The standard countermeasure is high-pressure coolant at 70 bar or above directed at the cutting edge, paired with 3-flute end mills that have large chip gullets to evacuate material quickly before it compacts.

Steel and stainless steel generate shorter chips, but those chips retain significant heat. Chip breaker geometries machined into carbide inserts curl and fracture the chip before it grows — through-spindle coolant delivers fluid directly to the cut zone and outperforms flood coolant in deep pockets where heat concentration is highest.

Composites such as CFRP and G10 fiberglass behave differently from metals entirely. They produce fine abrasive dust rather than discrete chips. Standard chip conveyors cannot capture this material, and liquid coolant can saturate the laminate. Dedicated vacuum extraction systems positioned at the spindle are the correct solution — not coolant at all. For a visual overview of how chip management CNC operations differ across material types, this machining demonstration on YouTube illustrates key evacuation principles in practice.

Chip Management Differences Between Mills, Lathes, and Turning Centers

Lathes and turning centers generate continuous ribbon chips that tangle in the chuck or turret if left unmanaged. Programmable chip-breaking cycles — short dwell moves or brief axis reversals built into the CNC control — interrupt chip formation reliably without operator intervention. For those exploring chip management CNC operations, this matters.

Mills face a different problem: chip accumulation in pockets and blind bores where gravity does not assist evacuation. Coolant alone is insufficient in these geometries. Combining directed air blast with coolant clears chips from confined features more effectively than either method used alone.

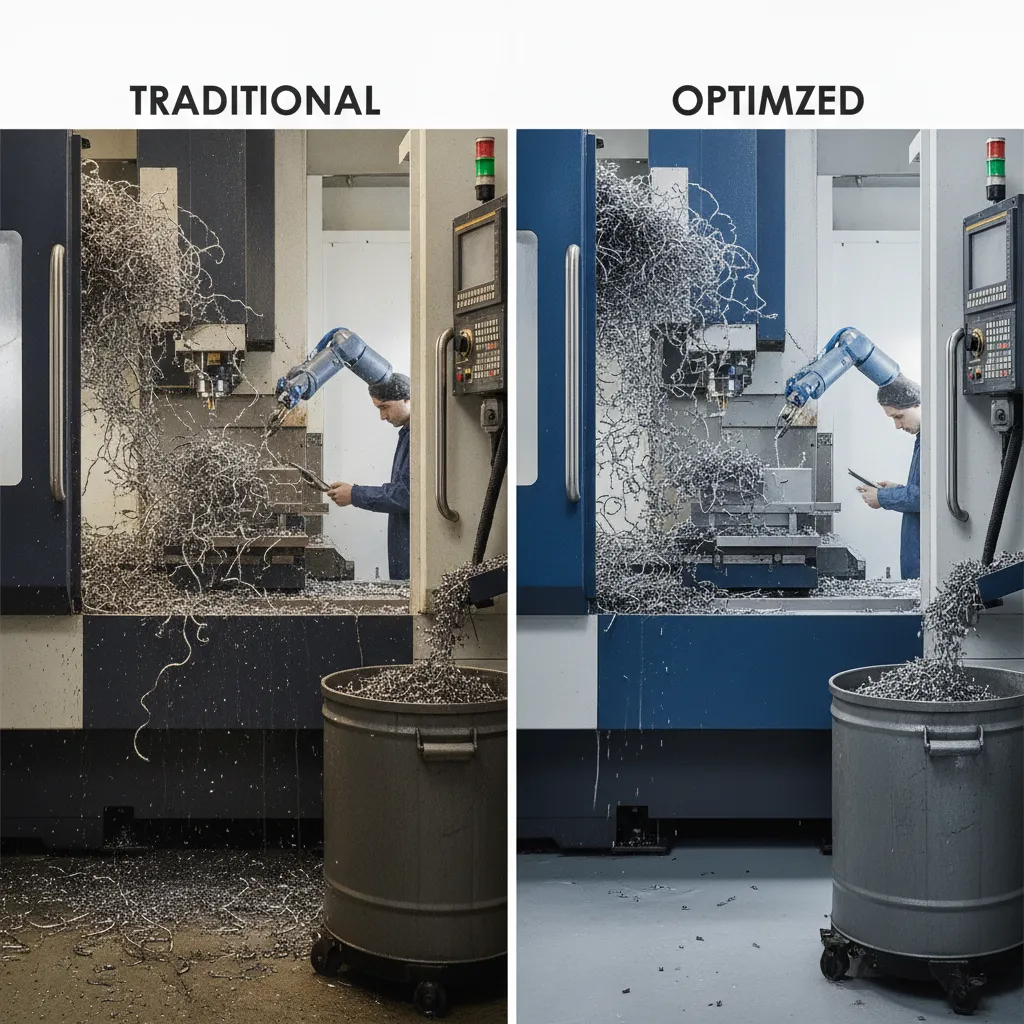

Automated Chip Removal Systems vs. Manual Chip Management: Cost and ROI Compared

Automated chip removal pays for itself within 12–24 months at medium production volumes; manual methods cost less upfront but carry significant hidden labor and risk expenses.

Cost-Benefit Analysis: Automated Chip Removal vs. Manual Methods

Manual chip management in CNC operations looks cheap until you account for operator time. Clearing chips from a mid-volume machine typically consumes 30–60 minutes per shift. At a burdened labor rate of $25–$40 per hour, that translates to $3,000–$7,500 per machine annually — before factoring in unplanned downtime caused by chip accumulation or tool damage.

Entry-level chip conveyor systems for a single CNC machining center run $4,000–$12,000 installed. At two-shift operation, payback periods typically land between 12 and 24 months, driven primarily by recovered labor hours and reduced spindle downtime.

Chip briquetters add capital cost — $15,000–$40,000 per unit — but the material recovery math changes the equation. Aluminum briquettes sell at 60–80% of scrap billet price, compared to just 20–30% for loose chips. For shops running high volumes of aluminum swarf, that gap funds a meaningful portion of the equipment cost. GC INDUS applies this logic across its CNC milling and turning operations, where aluminum and stainless steel chip volumes make material recovery a real line item, not an afterthought.

Automated systems also reduce injury exposure from handling hot, sharp swarf — a factor that affects OSHA compliance costs and insurance premiums in metalworking environments. Any honest ROI model includes those figures.

How Production Volume and Machine Type Shift the Break-Even Point

Manual chip management remains cost-effective below roughly 1,000 parts per month per machine, or in job-shop environments running fewer than two shifts. Below that threshold, capital recovery on conveyors or briquetters stretches beyond three years, which erodes the financial case. This directly impacts chip management CNC operations outcomes.

As volume climbs, the break-even point shifts decisively toward automation. Machine type also matters: Swiss lathe and 5-axis machining centers produce finer, more tangled chip forms that clog coolant systems faster, accelerating the ROI case for conveyors and crushers compared to standard turning centers producing larger, more manageable chips.

Tools and Systems to Integrate Into Your CNC Workflow for Effective Chip Management

A complete chip management system for CNC operations combines matched hardware, coolant integration, and deliberate toolpath programming — built in phases to match your actual chip volume. According to the Society of Manufacturing Engineers (SME), integrating chip management decisions at the CAM programming stage — rather than addressing them on the shop floor — is the most cost-effective approach available to modern machining operations.

Integrating Chip Management Systems With Existing CNC Software and Workflows

Start with toolpath strategy before spending on hardware. In CAM platforms like Mastercam, Hypermill, and Fusion 360, trochoidal milling and peck drilling cycles directly control chip load and evacuation — program them as chip management decisions, not as geometric afterthoughts. Shorter chips produced by trochoidal passes are easier to convey and less likely to nest around the cutter.

Modern chip conveyors from suppliers such as Mayfran, Hennig, and LNS connect to machine tool PLCs via M-code triggers for basic start/stop synchronization. No separate software license is required — the conveyor runs as a standard auxiliary output, compatible with virtually any current CNC control.

Coolant management and chip management are inseparable. A high-pressure coolant unit running at 70–150 bar, paired with a clean coolant return loop, prevents chip fines from contaminating the sump and typically extends coolant change intervals by 30–50%. Neglecting filtration undoes the benefit of any conveyor system. For additional technical guidance on fluid management in machining environments, the U.S. Environmental Protection Agency’s metalworking fluids resource provides useful regulatory and best-practice context.

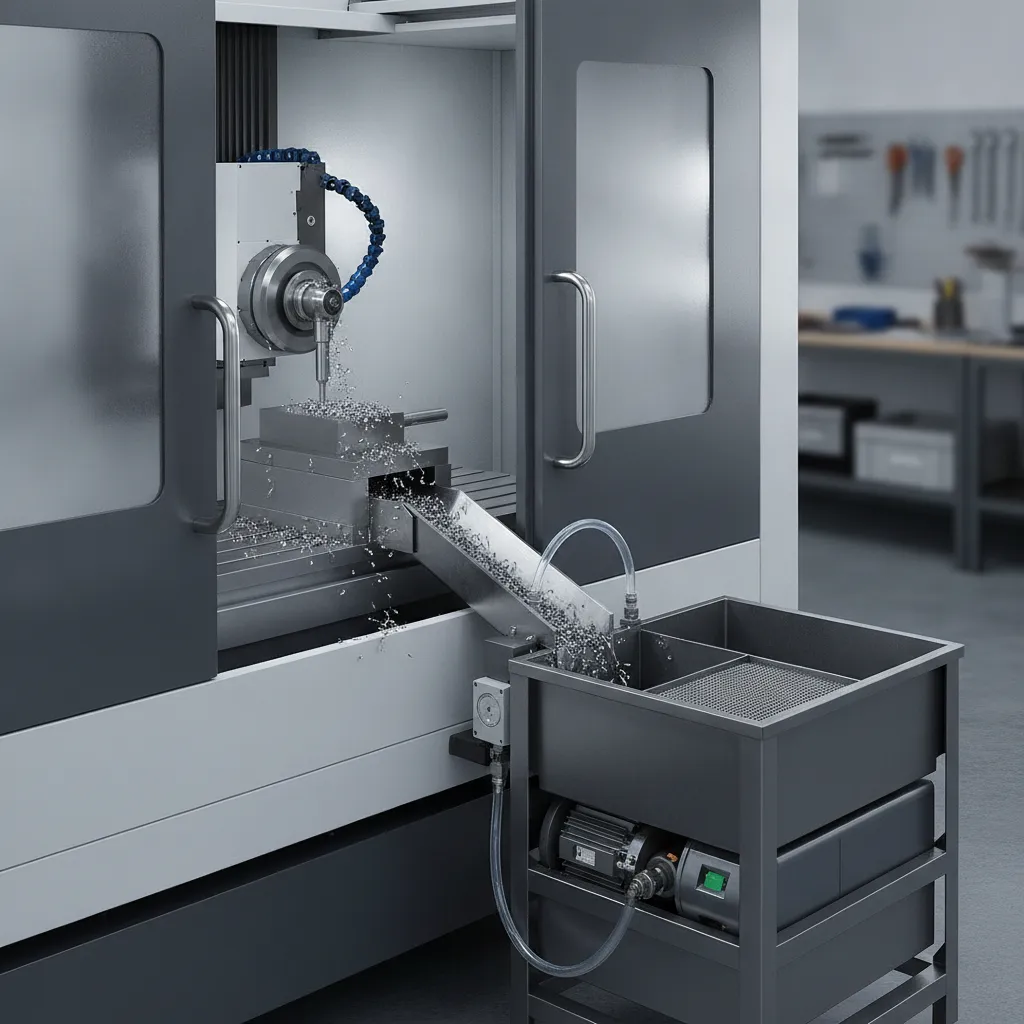

Recommended Technologies for Optimizing Chip Handling in Your Shop

Build the hardware stack in phases to avoid over-investing before you understand your chip volume. The core components, added in order of priority, are:

1. Optimized toolpaths and coolant nozzle positioning — zero capital cost, immediate impact on chip morphology and evacuation.
2. Chip conveyor — select hinge-belt type for long, stringy turnings from steel or titanium; scraper-type for short, granular chips from aluminum or cast iron.
3. Coolant filtration unit — paper-band or magnetic drum filters matched to your chip material.
4. Chip crusher — reduces bulky turnings to a manageable volume before the conveyor or bin.
5. Briquetter — evaluate only once monthly scrap volume justifies the capital; briquettes recover significantly more coolant per kilogram of swarf and command higher scrap prices.

At GC INDUS, chip management CNC operations are built into the process plan from the first toolpath — not addressed after a quality issue surfaces. That discipline, combined with high-pressure coolant systems and matched conveyor selection, is part of how we hold tolerances to ±0.001mm across production runs for medical device and OEM clients.

“The shops that struggle most with chip-related downtime are the ones that treat chip removal as a maintenance task rather than a process engineering decision. When you design chip evacuation into the toolpath and fixturing from the start, the problem largely solves itself.” — Dr. Radu Pavel, Chief Technology Officer, TechSolve Manufacturing Research Institute

Frequently Asked Questions

What is bird nesting in CNC machining and how do you prevent it?

Bird nesting occurs when long, stringy chips wrap around the cutting tool or spindle, disrupting the cut and risking tool breakage. It is most common when machining ductile materials like aluminum or stainless steel with chip-breaker-free tooling. Prevent it by selecting insert geometries with built-in chip breakers, programming interrupted cuts, adjusting feed rates to produce shorter chip segments, and using directed coolant or air blast to clear chips before they accumulate around the tool. This is particularly relevant for chip management CNC operations.

How often should chip bins and conveyors be cleared during a production run?

Chip bins and conveyors should be cleared before they reach 75–80% capacity to prevent backpressure on the conveyor motor and chip re-cutting at the work zone. In high-volume aluminum machining, that can mean clearing every 2–4 hours. For steel or titanium, where chip volume is lower but weight is higher, check capacity every shift. Set a timed interval based on your material removal rate rather than relying on visual checks alone.

Does chip management affect coolant performance and coolant change frequency?

Yes, poor chip management directly degrades coolant quality and shortens its service life. Chips left in the coolant sump act as a heat sink and introduce fine metallic fines that accelerate bacterial growth and raise coolant concentration variability. Removing chips promptly through conveyors or chip wringers keeps fines out of the sump, stabilizes coolant concentration, and can extend coolant change intervals by 30–50% depending on the material and coolant type.

What chip morphology should you aim for when machining aluminum versus steel?

For aluminum, target short, curled chips — often called “comma” or “C-shaped” chips — that break cleanly and do not reweld to the cutting edge. Long stringy chips in aluminum signal feeds that are too low or a missing chip breaker. For steel, aim for tightly curled or segmented chips; continuous ribbon chips indicate excessive cutting speed or insufficient chip-breaker engagement. In both cases, chips that are too fine or powdery suggest the tool is rubbing rather than cutting, which accelerates wear.

How does chip management in CNC operations affect workplace safety and regulatory compliance?

Effective chip management CNC operations protocols significantly reduce workplace injury risk from hot, sharp swarf. Loose chips on machine floors and work surfaces are a leading cause of cuts and burns in machining environments. Automated conveyors and enclosed chip handling systems limit direct operator contact with swarf, reducing recordable incidents. Regulatory bodies including OSHA require employers to control metalworking hazards, and documented chip management procedures support compliance during inspections and audits.

Conclusion

Chip management in CNC operations is not a housekeeping task — it directly controls tool life, surface finish, coolant health, and machine uptime. Three actions make the biggest difference: match your chip conveyor type to your material and chip morphology before the machine runs its first cycle; set chip bin clearance intervals based on material removal rate, not visual inspection; and keep chips out of the coolant sump to protect fluid concentration and extend change intervals.

If you are sourcing precision components and want to verify that a contract manufacturer controls these variables at the process level, ask GC INDUS for a process capability review alongside your next quote — it takes the same information you already have in your STEP file.
