5 Axis CNC Machining
5 Axis CNC Machining for High-Precision Components
At GC INDUS, we specialize in 5 Axis CNC Machining for high-precision components with complex geometries. Our advanced multi-axis machining capabilities enable us to produce tight-tolerance parts with excellent accuracy, surface finish, and repeatability. We serve a wide range of industries, delivering reliable custom CNC machining solutions for both prototyping and production runs.
Advantages of 5 Axis CNC Machining Services
5-axis machining allows for greater flexibility and precision compared to traditional 3-axis machining. With the ability to move cutting tools along five different axes simultaneously, this process offers:
Enhanced Precision – Achieve complex shapes and tighter tolerances with fewer setups.
Reduced Lead Times – Minimize repositioning and improve production efficiency.
Superior Surface Finish – Fewer tool changes result in smoother, high-quality surfaces.
Complex Geometries – Manufacture intricate parts that would be impossible with conventional machining.
Cost Efficiency – Reduce material waste and optimize production costs.
Start Your 5 Axis CNC Machining Project Today
Upload Your CAD Files and Get a Quote Within 24 Hours
5 Axis CNC Machining Applications Across Industries
GC INDUS provides 5-axis CNC machining services for industries that require the highest levels of accuracy and complexity, including:
Aerospace & Defense – Precision components for aircraft, satellites, and military applications.

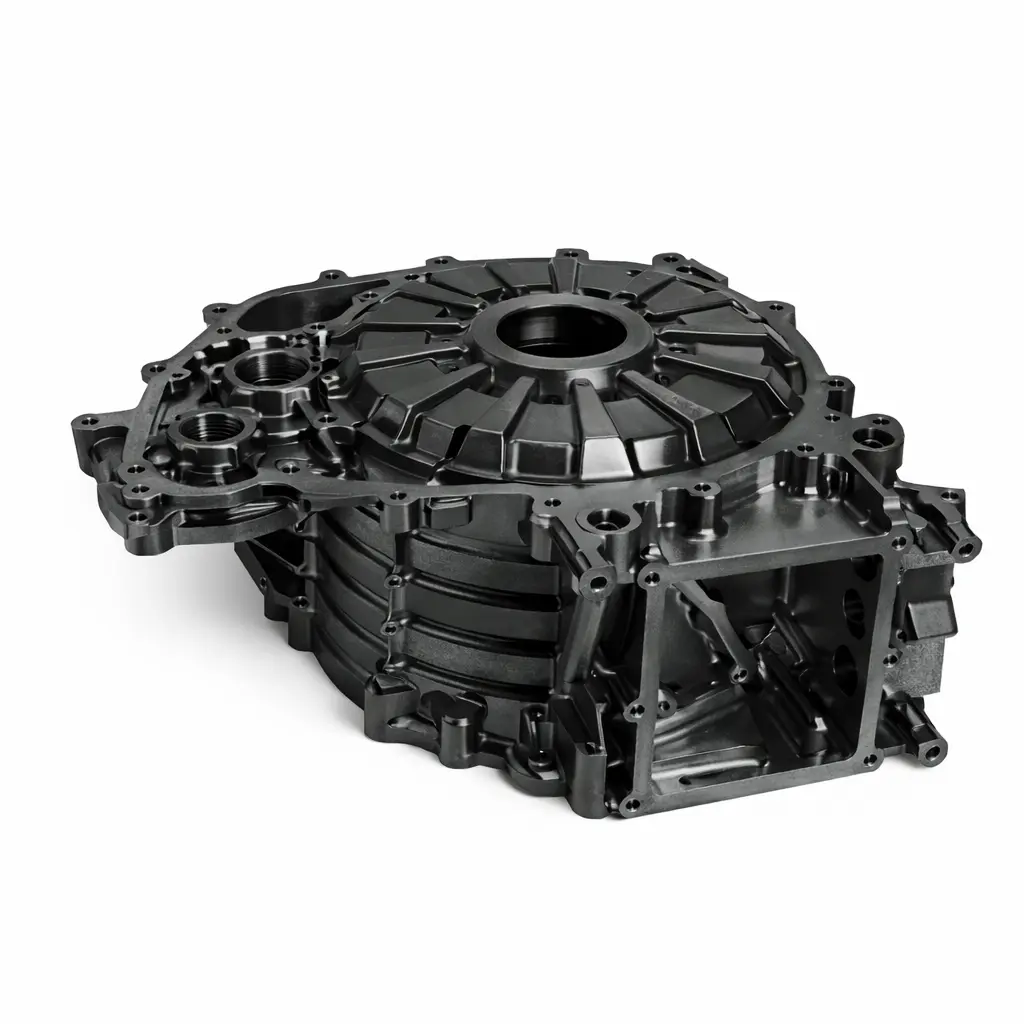

Automotive – High-performance engine and suspension parts.
Medical & Healthcare – Surgical instruments, implants, and medical device components.
Robotics & Automation – Complex robotic parts and automation components.
Energy & Electronics – High-tolerance parts for energy and electronic applications.
5 Axis CNC Machining Capabilities for Precision Parts
Equipped with state-of-the-art 5-axis CNC machines, GC INDUS offers:
Tolerances up to ±0.001mm
Multi-material machining – Aluminum, titanium, stainless steel, plastics, and more.
High-speed machining for fast turnaround times.
Surface treatments & finishing – Anodizing, plating, powder coating, and more.
Prototype to full-scale production – From small batches to large-volume runs.
Start Your 5 Axis CNC Machining Project Today
Upload Your CAD Files and Get a Quote Within 24 Hours
5 Axis CNC Machining FAQs
What is 5 axis CNC machining and how does it work?
5 axis CNC machining is an advanced manufacturing process that allows a cutting tool to move along five different axes simultaneously to machine complex parts with high precision. Unlike traditional 3-axis machining, which only moves along the X, Y, and Z directions, 5 axis machining adds two additional rotational axes. This allows the workpiece or cutting tool to rotate and approach the material from multiple angles.
With this capability, complex geometries such as curved surfaces, deep cavities, and intricate contours can be machined in a single setup. The machine follows programmed toolpaths generated from CAD/CAM software, ensuring consistent accuracy and repeatability. This technology is widely used in industries that demand high precision and complex designs, including aerospace, medical devices, automotive, and robotics. By reducing the number of setups required during manufacturing, 5 axis machining improves efficiency, reduces errors, and produces parts with superior surface quality.
What are the main advantages of 5 axis CNC machining compared to 3 axis machining?
The biggest advantage of 5 axis CNC machining is its ability to machine complex parts in fewer setups while maintaining high precision. Traditional 3 axis machining often requires multiple repositioning steps to reach different surfaces of a part. Each repositioning can introduce alignment errors and increase production time. In contrast, 5 axis machining allows the cutting tool to approach the part from multiple angles in a single operation.
This capability significantly improves machining efficiency and reduces the need for custom fixtures. It also enables better surface finishes because the tool can maintain the optimal cutting angle throughout the process. Additionally, 5 axis machining allows manufacturers to produce complex shapes such as turbine blades, impellers, and aerospace components that would be extremely difficult or impossible to create using conventional machining methods. Overall, the technology enhances precision, reduces lead times, and improves manufacturing flexibility.
What types of parts are typically produced using 5 axis CNC machining?

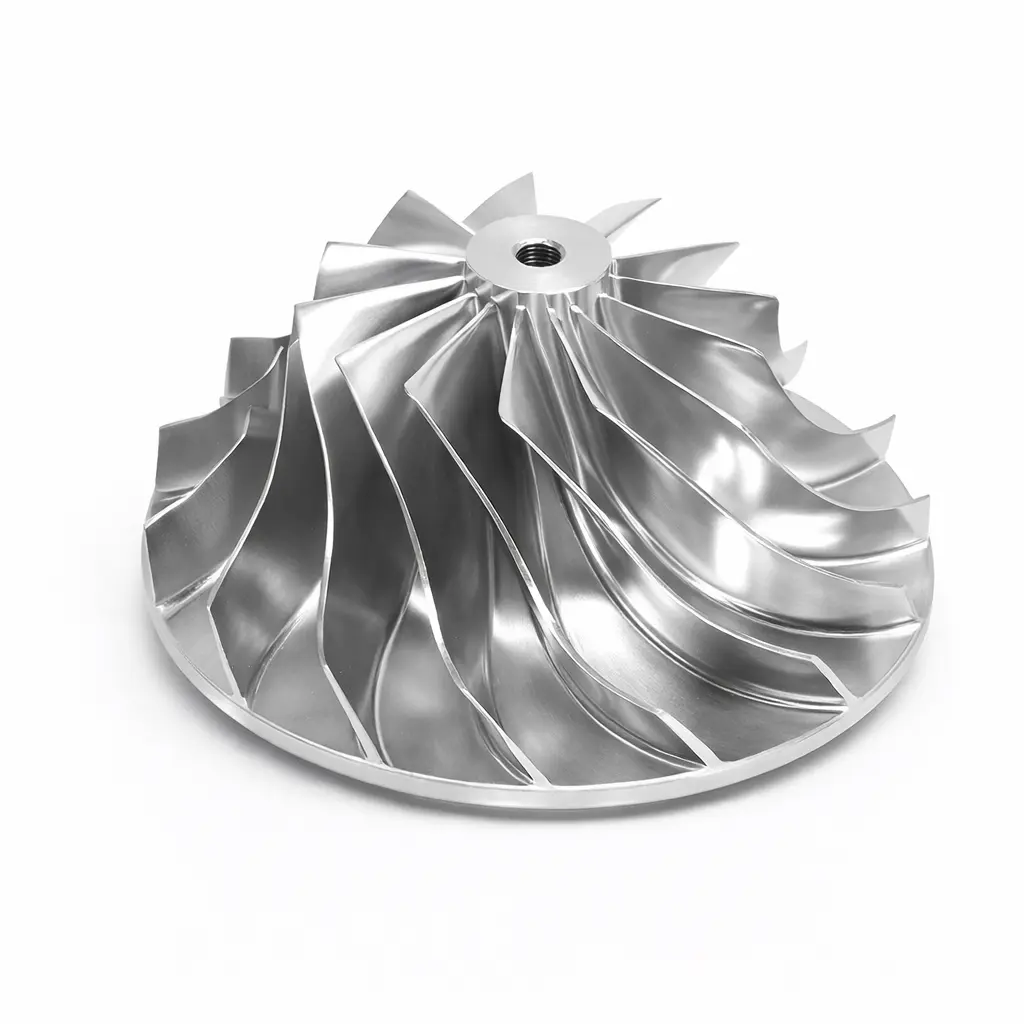

5 axis CNC machining is commonly used to manufacture parts with complex geometries and tight tolerance requirements. Typical components include turbine blades, impellers, aerospace structural parts, medical implants, mold components, and high-precision automotive parts. These parts often feature curved surfaces, deep cavities, or multi-angled features that require machining from multiple directions.
For example, aerospace components often require lightweight structures with intricate designs to improve performance and reduce weight. Medical devices such as orthopedic implants require extremely precise shapes and smooth surfaces to meet strict medical standards. In addition, mold and tooling industries rely on 5 axis machining to produce complex mold cavities with excellent surface finishes. Because of its flexibility and precision, 5 axis machining is widely used whenever complex shapes and high performance are required.
What materials can be machined using 5 axis CNC technology?
5 axis CNC machining can process a wide variety of materials, including metals and engineering plastics. Common metal materials include aluminum alloys, stainless steel, carbon steel, titanium, brass, copper, and various alloy steels. These materials are widely used in industries such as aerospace, automotive, and industrial equipment manufacturing.
Engineering plastics such as PEEK, ABS, nylon, PTFE, and polycarbonate can also be machined using 5 axis CNC machines. These materials are often used in applications requiring lightweight structures, electrical insulation, or chemical resistance. The choice of material depends on the part’s mechanical requirements, operating environment, and cost considerations. Advanced cutting tools and machining strategies allow 5 axis machines to maintain high accuracy and surface quality even when working with difficult materials such as titanium or hardened steels.
What tolerance levels can be achieved with 5 axis CNC machining?
5 axis CNC machining is capable of achieving extremely tight tolerances, typically ranging from ±0.01 mm to ±0.005 mm depending on the material, part complexity, and machining conditions. In high-precision industries such as aerospace and medical manufacturing, even tighter tolerances may be required and can be achieved with specialized equipment and advanced inspection processes.
The high precision of 5 axis machining is mainly due to its ability to reduce the number of setups during production. Fewer setups mean fewer opportunities for alignment errors. In addition, modern CNC machines use high-accuracy servo systems and advanced control software to maintain precise tool positioning. Combined with strict quality control methods such as coordinate measuring machine (CMM) inspections, 5 axis machining ensures that critical dimensions meet exact engineering specifications.
How does 5 axis machining improve surface finish and part quality?
5 axis machining significantly improves surface finish because the cutting tool can maintain an optimal angle relative to the workpiece throughout the machining process. In traditional machining, the tool may approach the surface at less efficient angles, which can cause tool marks or uneven finishes. With 5 axis movement, the tool can follow the contours of the part more smoothly.
Another advantage is that complex surfaces can be machined in a single continuous operation rather than multiple steps. This reduces the chance of surface mismatches or visible transitions between machining operations. Additionally, shorter cutting tools can often be used, which improves rigidity and reduces vibration. The result is a smoother surface finish, better dimensional accuracy, and improved overall part quality, especially for components with complex shapes.
Is 5 axis CNC machining suitable for both prototypes and mass production?
Yes, 5 axis CNC machining is suitable for both prototype development and production manufacturing. For prototypes, the technology allows engineers to quickly produce complex parts that closely match the final design. This helps verify functionality, fit, and performance before full-scale production begins.
For production manufacturing, 5 axis machining can significantly reduce cycle times by eliminating multiple setups and minimizing manual operations. This improves efficiency and consistency when producing multiple parts. Although the initial setup and programming for 5 axis machining may require more planning, the benefits in terms of precision, repeatability, and production speed often make it an excellent choice for both low-volume and medium-volume production.
What industries benefit the most from 5 axis CNC machining?
Many advanced industries rely heavily on 5 axis CNC machining due to its precision and ability to produce complex parts. Aerospace is one of the primary industries, where lightweight yet strong components such as turbine blades, structural parts, and engine components must meet extremely strict quality standards.
The medical industry also benefits from 5 axis machining, especially for manufacturing orthopedic implants, surgical instruments, and dental components. Automotive manufacturers use the technology for high-performance engine components and precision tooling. Other industries include robotics, energy equipment, and mold manufacturing. In all these sectors, the ability to produce complex parts with high accuracy and efficiency makes 5 axis machining a critical manufacturing technology.
What are the cost considerations of 5 axis CNC machining?
While 5 axis CNC machining machines and programming are more advanced than traditional machining, the overall manufacturing cost can often be reduced for complex parts. This is because 5 axis machining reduces the number of setups, eliminates the need for multiple fixtures, and shortens production cycles.
Additionally, the improved precision reduces the likelihood of rework or scrap parts. For highly complex geometries, using a 3 axis machine may require multiple operations and manual adjustments, which increases labor costs and production time. In such cases, 5 axis machining can actually be more cost-effective. However, for very simple parts, traditional machining may still be the more economical choice.
