Compression Molding
Compression Molding Service

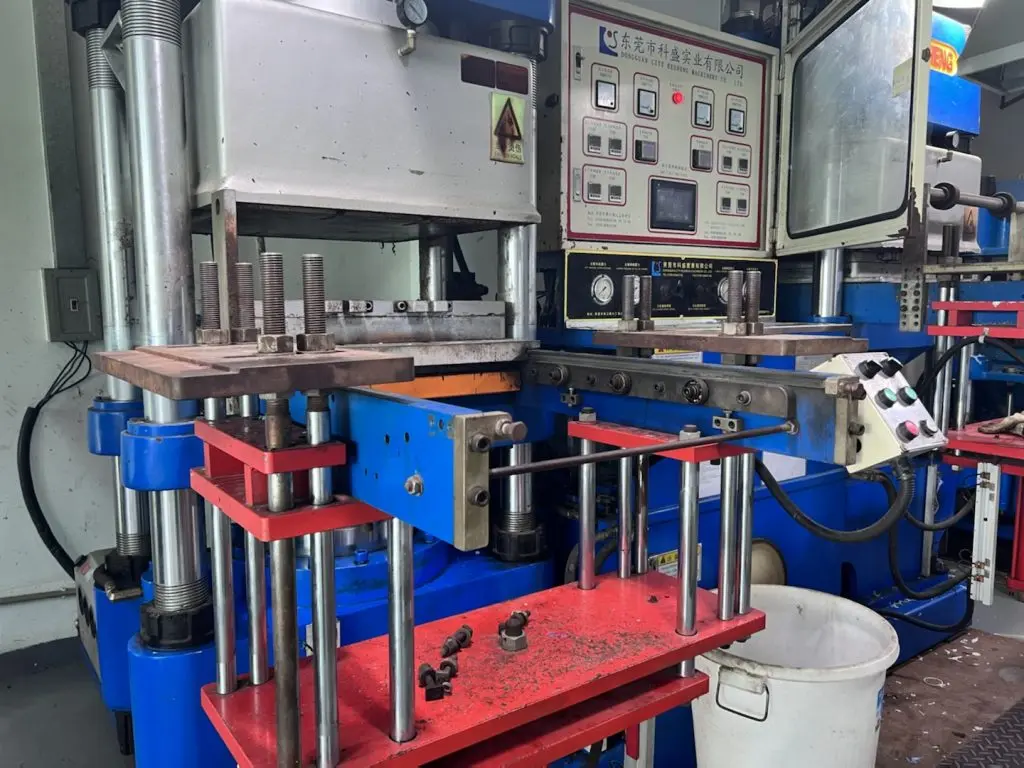

GC Indus provides professional compression molding manufacturing services for high-performance polymer and composite components used in demanding industrial environments. Compression molding is a manufacturing process in which pre-measured material is placed into a heated mold cavity and compressed under high pressure until the material flows and cures into the desired shape.
This process is widely used for thermoset plastics, rubber materials, and fiber-reinforced composites, enabling the production of strong, durable parts with excellent structural integrity and dimensional stability.
At GC Indus, we combine advanced molding equipment, precision mold design, and strict process control to deliver consistent, high-quality molded components. Our compression molding services support both prototype development and large-scale mass production, ensuring reliable results for a wide range of industries.
In addition to molding, we provide secondary machining, trimming, finishing, assembly, and quality inspection, allowing customers to receive complete solutions from design to finished product. Whether your project requires high-strength composite parts, electrical insulation components, automotive structural parts, or industrial rubber products, GC Indus offers efficient and cost-effective compression molding solutions.
Custom Compression Molding Solutions
Thermoset Plastic Molding
Suitable for parts requiring high temperature resistance, electrical insulation, and structural stability

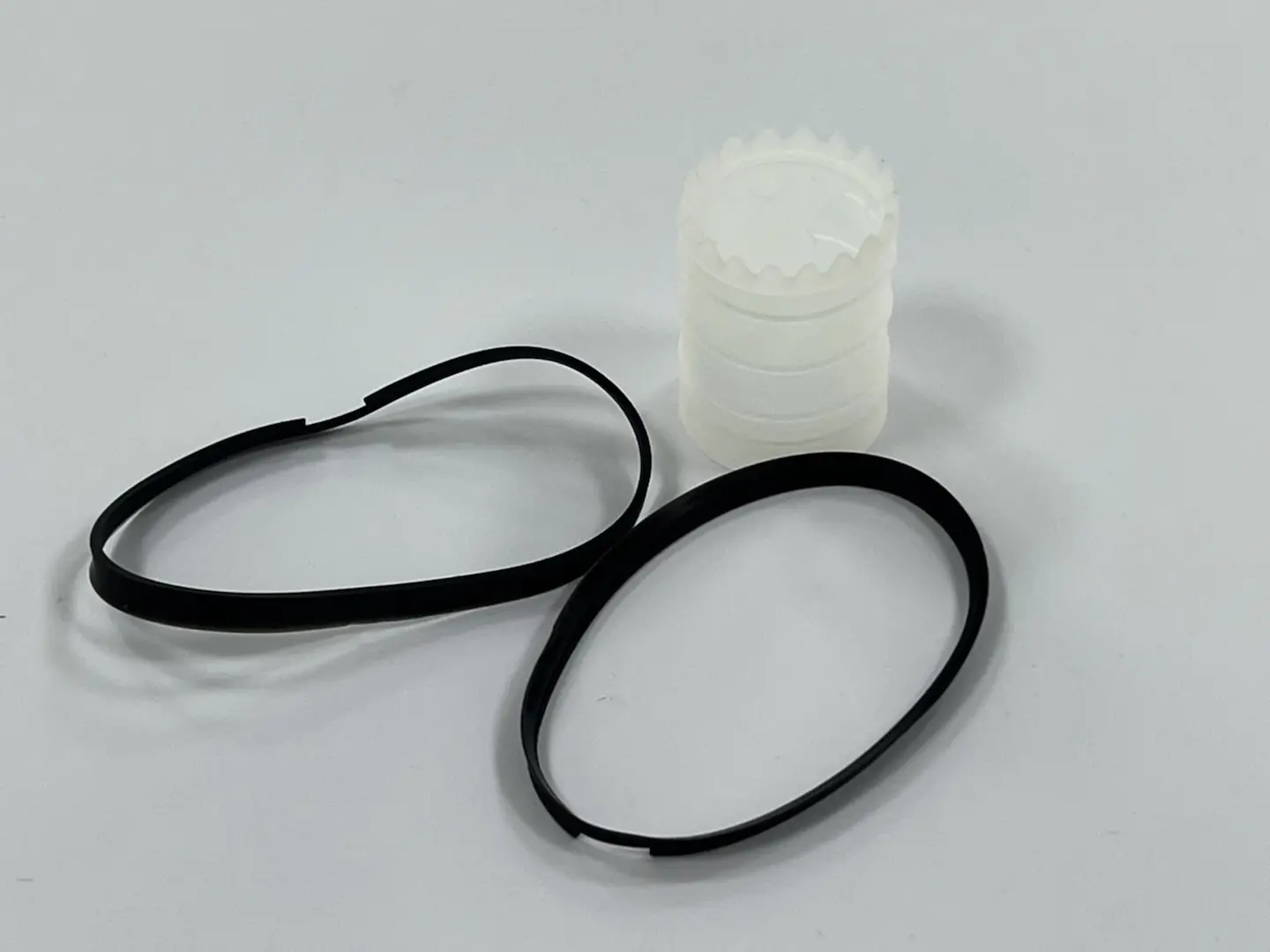

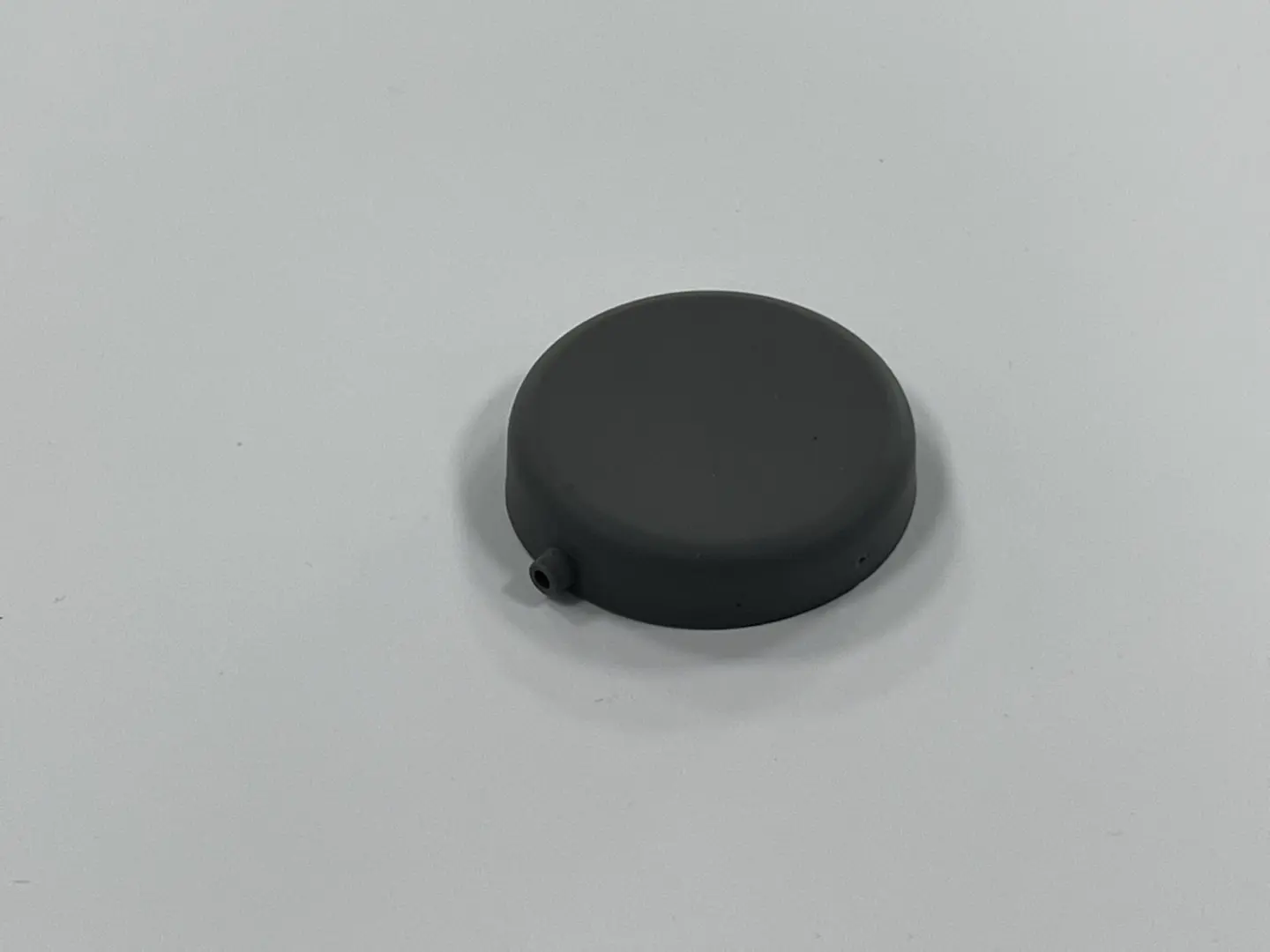

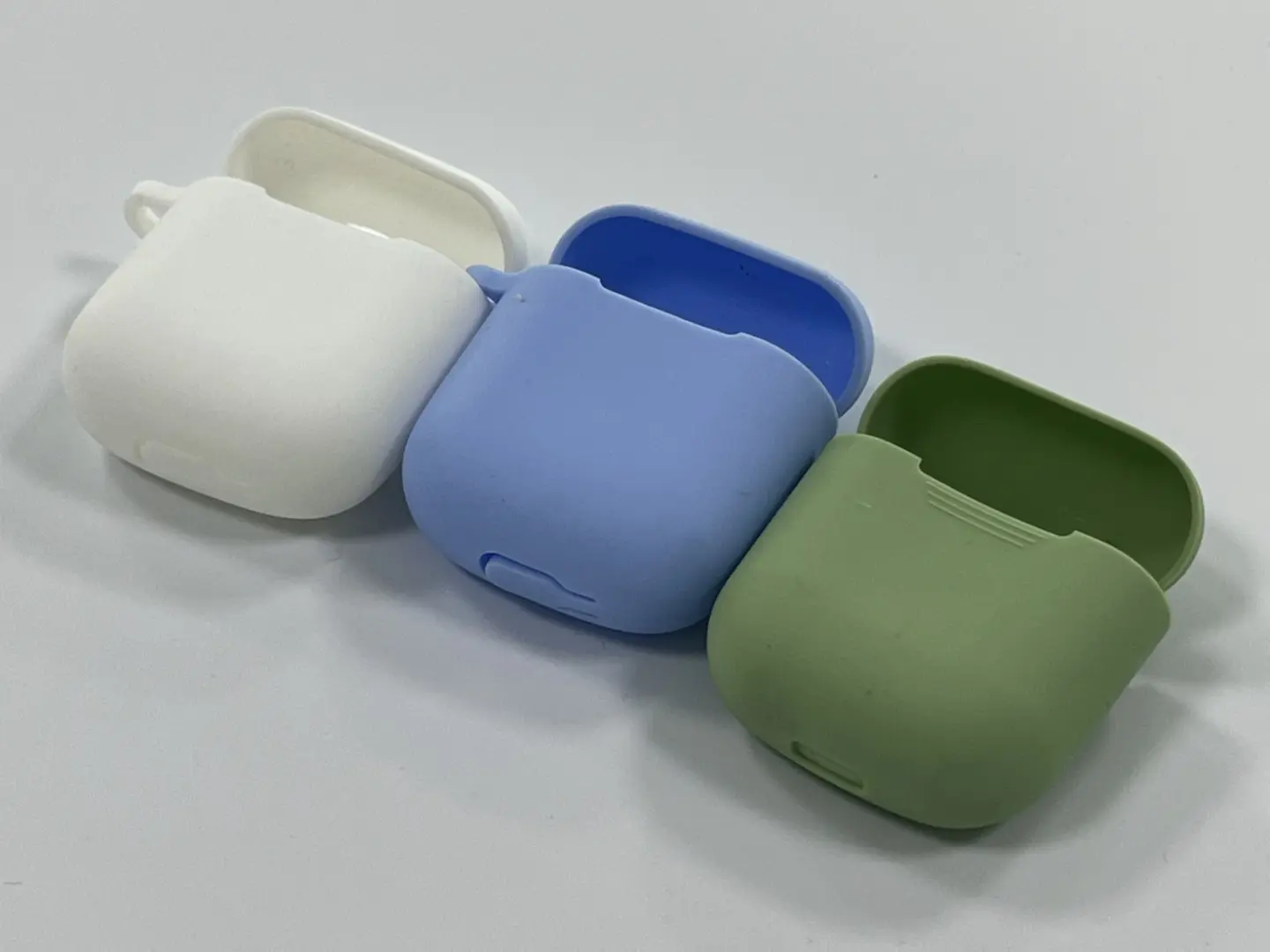

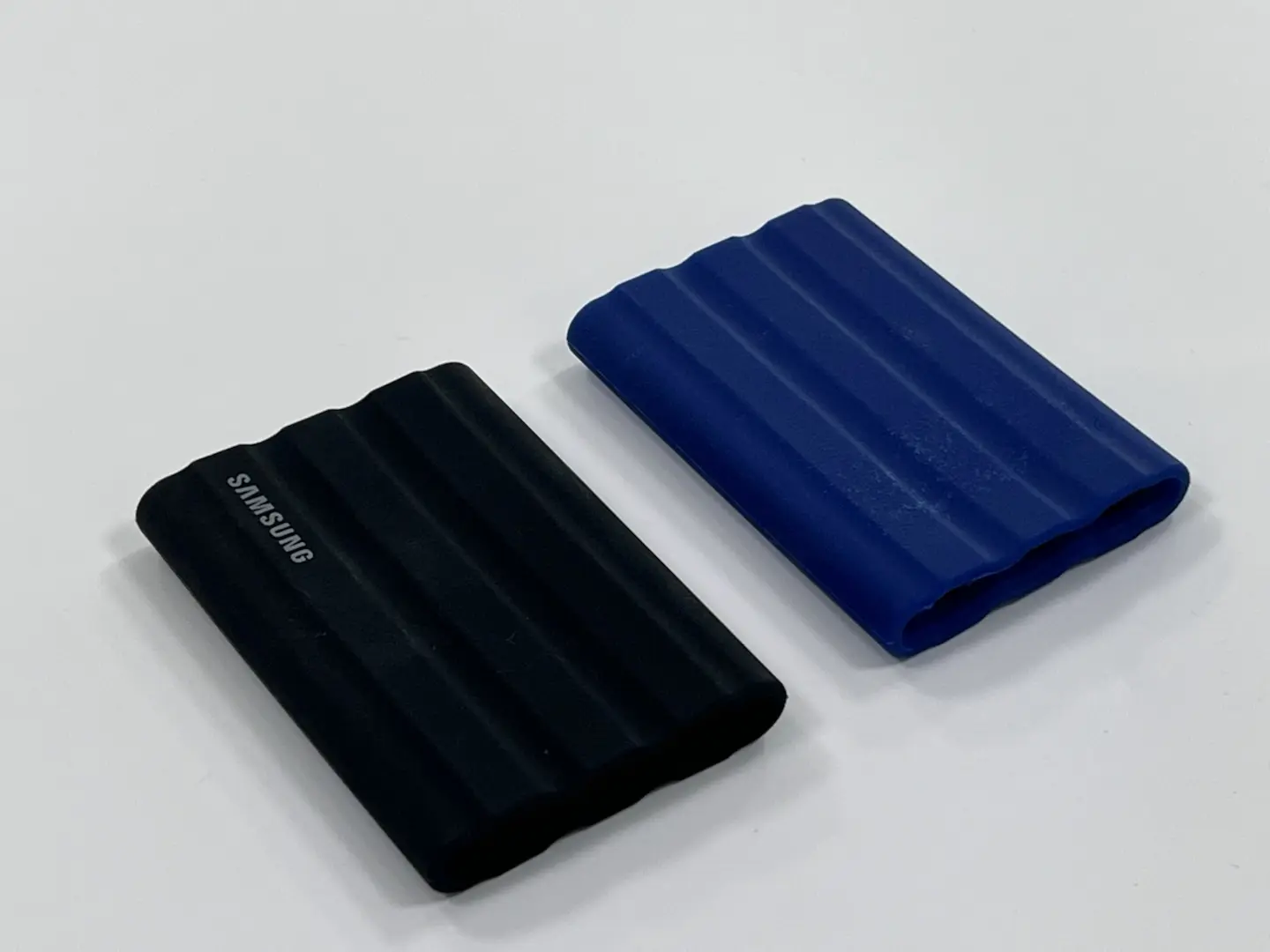

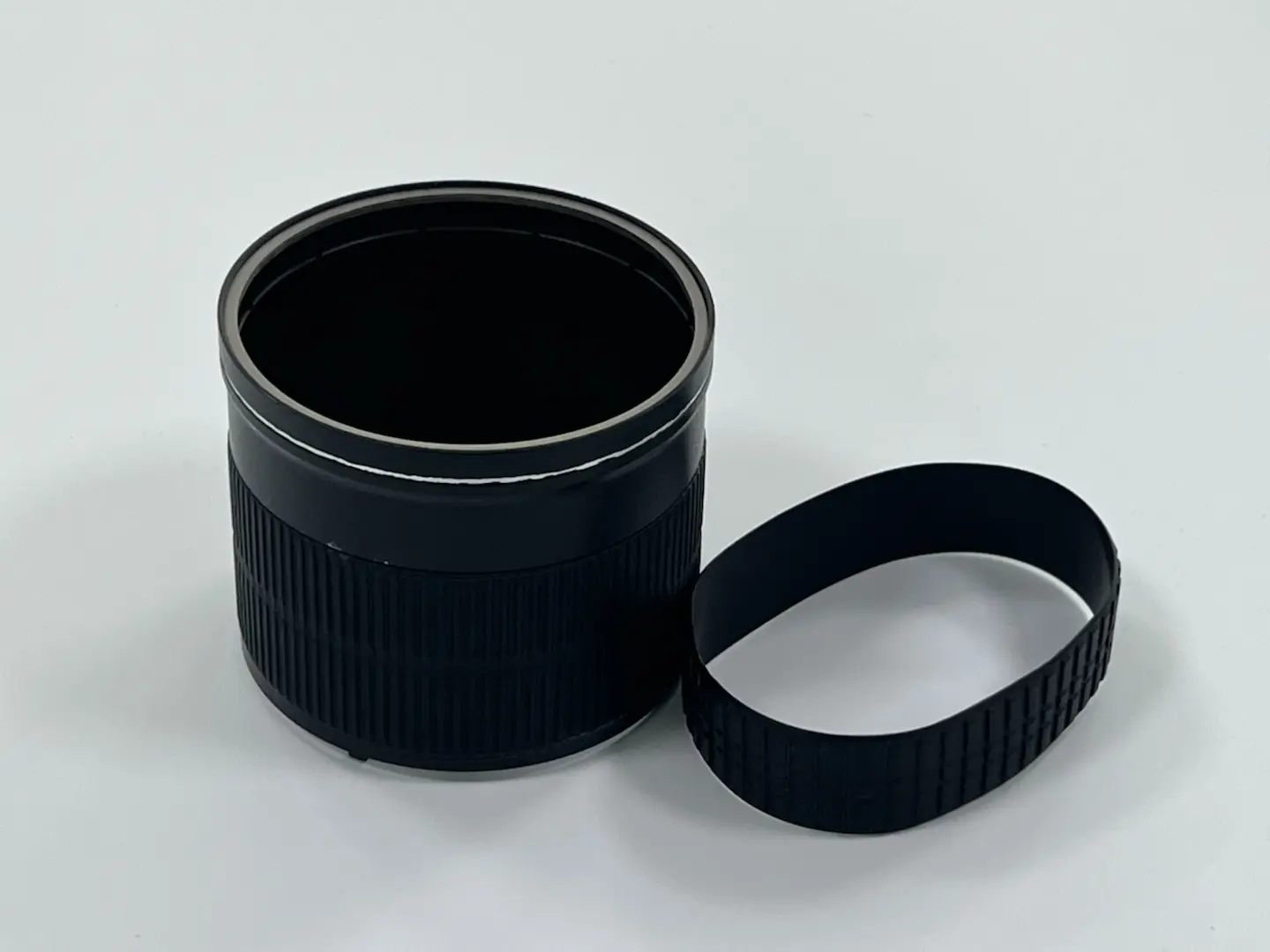

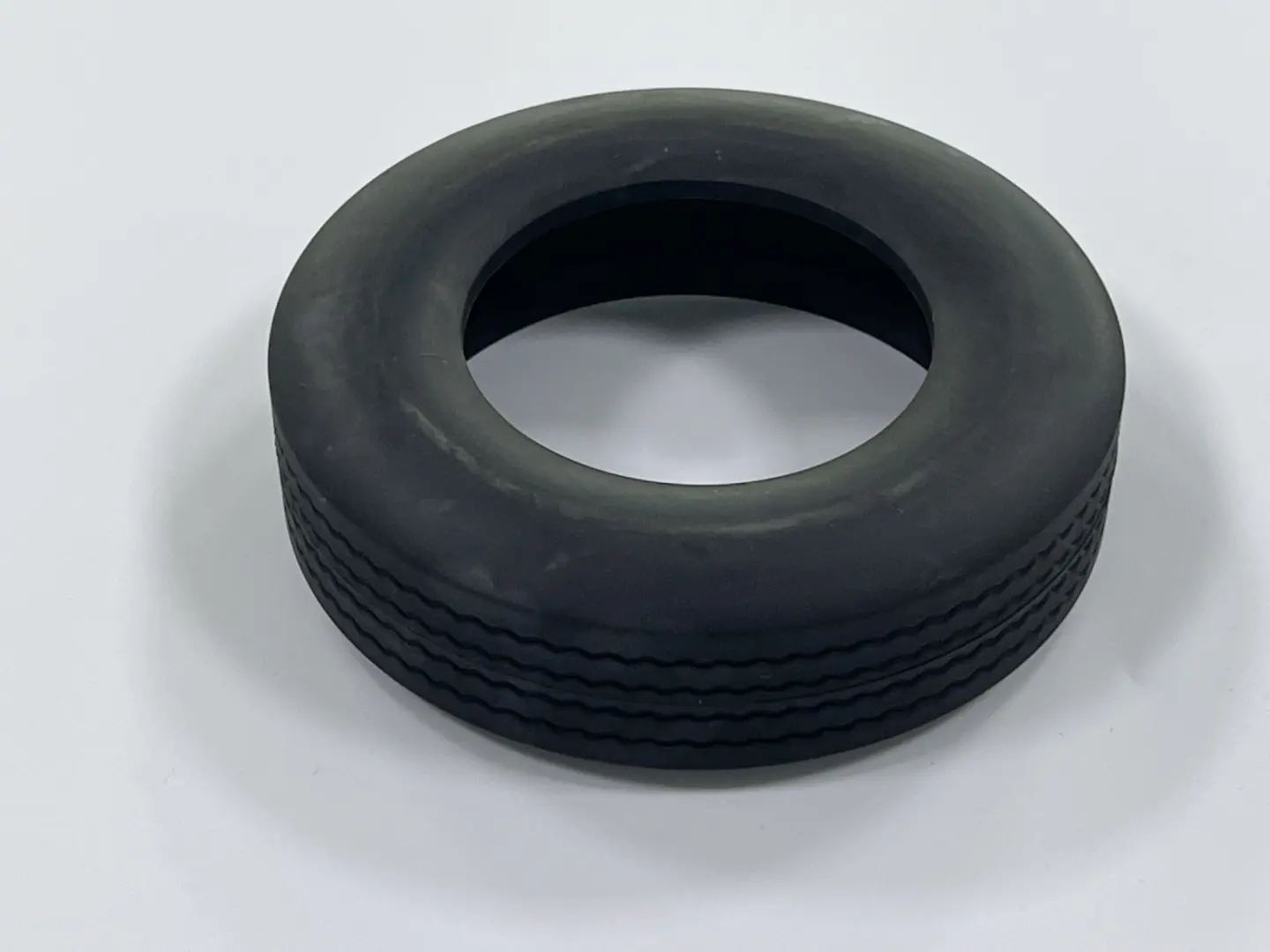

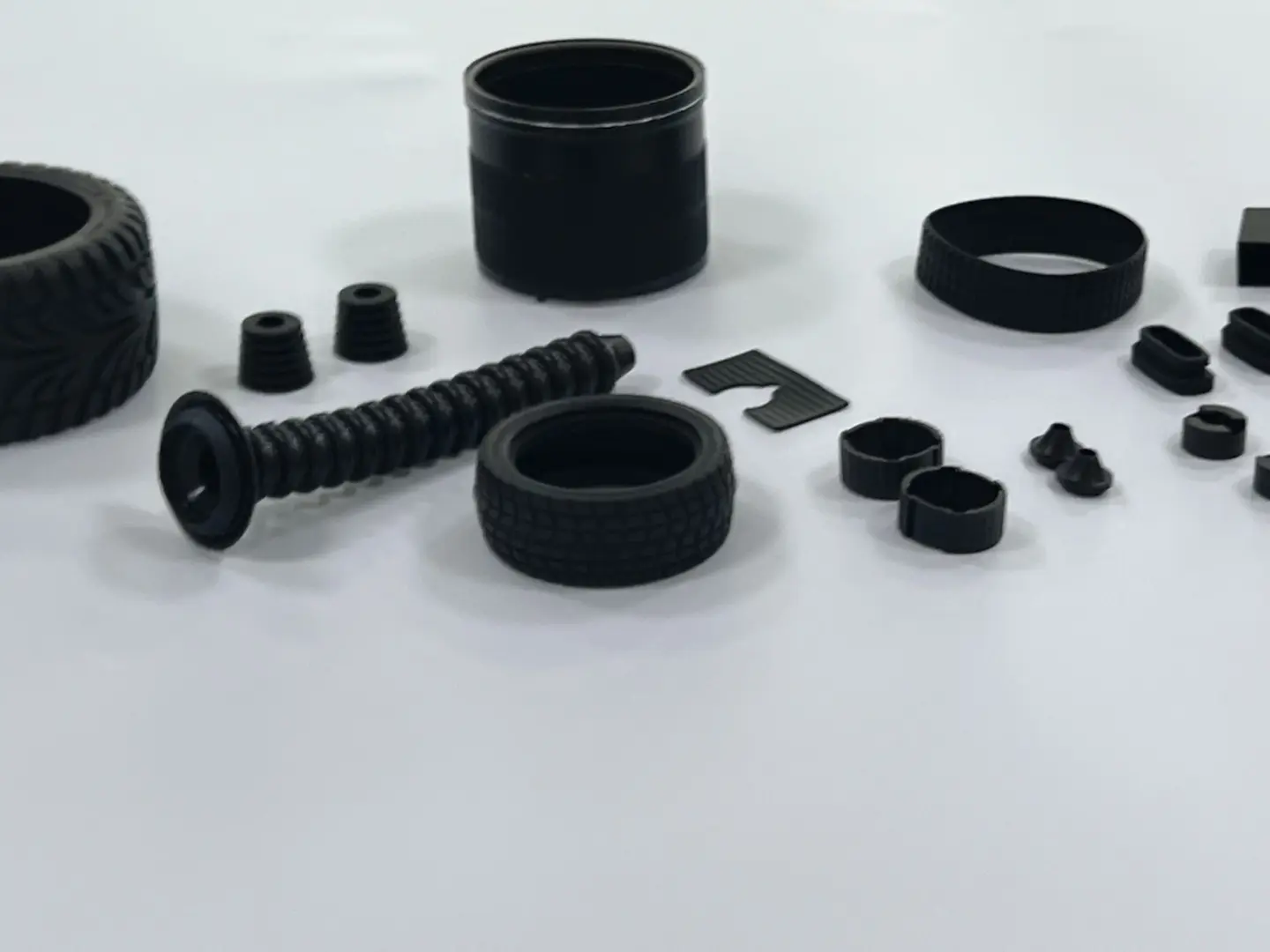

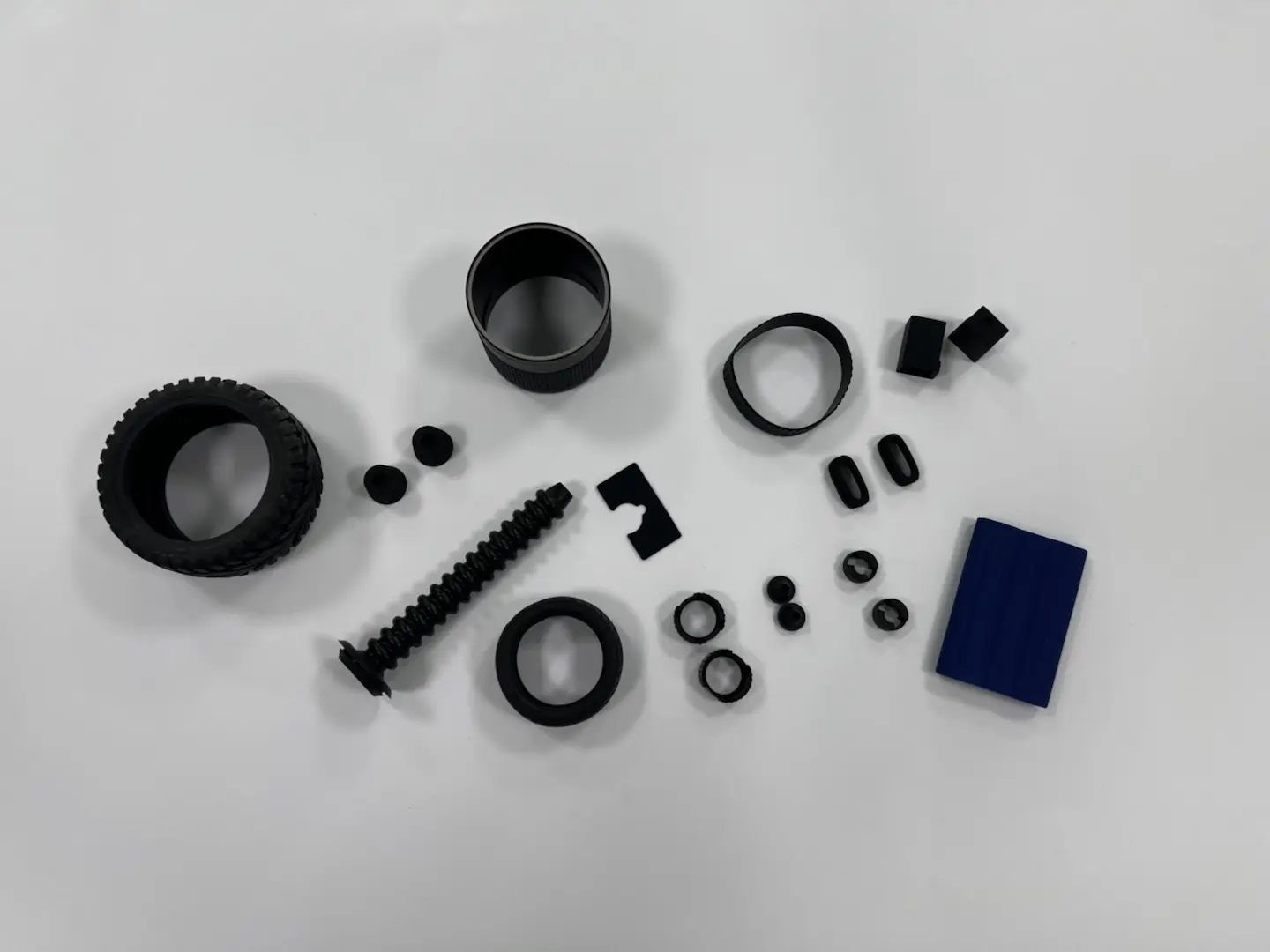

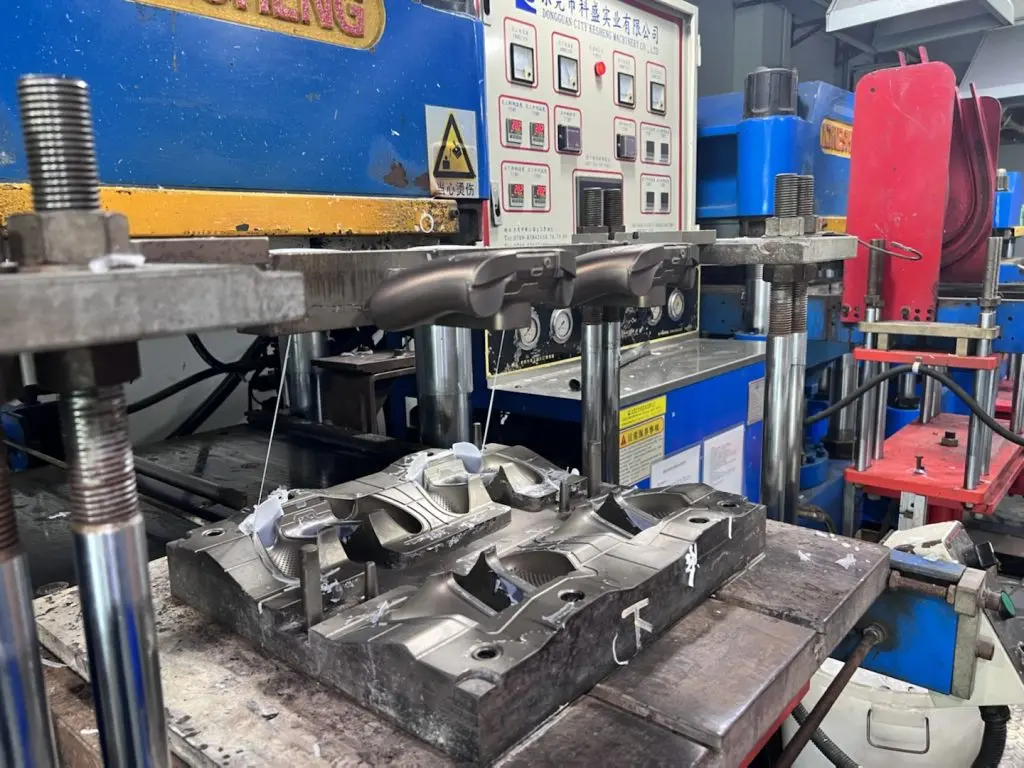

Rubber Compression Molding
Suitable for parts requiring high temperature resistance, electrical insulation, and structural stability
Composite Compression Molding
Ideal for fiber-reinforced materials such as carbon fiber and glass fiber composites, providing excellent strength performance.
Start Your Compression Molding Project Today
Upload Your CAD Files and Get a Quote Within 24 Hours
Compression Molding Industries We Serve
Automotive Industry
Structural panels, interior components, engine covers, electrical insulation parts, and vibration control components.
Electrical & Electronics
Electrical insulation parts, circuit protection housings, switch components, and electrical connectors.
Industrial Equipment
Machine covers, protective housings, sealing components, and insulation parts
Medical Equipment
Durable plastic housings, equipment frames, and specialized composite components.
Consumer Products
Appliance housings, structural plastic components, and protective shells.
Aerospace Industry
Lightweight composite panels, structural reinforcement components
Start Your Compression Molding Project Today
Upload Your CAD Files and Get a Quote Within 24 Hours
Advantages of GC Indus Compression Molding
Excellent Structural Strength
Compression molding produces parts with high density and excellent mechanical strength, especially when reinforced fibers are used.
Superior Surface Quality
Parts often come out of the mold with smooth surfaces, reducing finishing requirements.
Ideal for Thermoset Materials
Compression molding is the preferred process for thermoset plastics and rubber materials.
Cost Efficiency for Medium to High Volumes
Once tooling is developed, compression molding offers competitive production costs.
Large Part Capability
Compared with injection molding, compression molding can produce larger and thicker components.
Material Efficiency
The process generates very little material waste, improving overall production efficiency.
Integrated Manufacturing
GC Indus offers tooling design, molding, machining, finishing, and assembly, providing a complete manufacturing solution.
Key Characteristics of Compression Molding Materials
Material selection plays a crucial role in compression molding. Different materials provide unique advantages such as high temperature resistance, electrical insulation, structural strength, and chemical resistance.
Thermoset materials permanently cure during molding and cannot be remelted.
Common materials include:
| Material | Characteristics | Applications |
|---|---|---|
| Phenolic Resin (PF) | High heat resistance, excellent electrical insulation | Electrical components |
| Epoxy Resin (EP) | High strength and chemical resistance | Industrial components |
| Polyester Resin (UP) | Good mechanical properties | Automotive panels |
| Melamine Formaldehyde (MF) | Hard surface, good flame resistance | Electrical insulation |
| Urea Formaldehyde (UF) | Smooth finish and hardness | Consumer products |

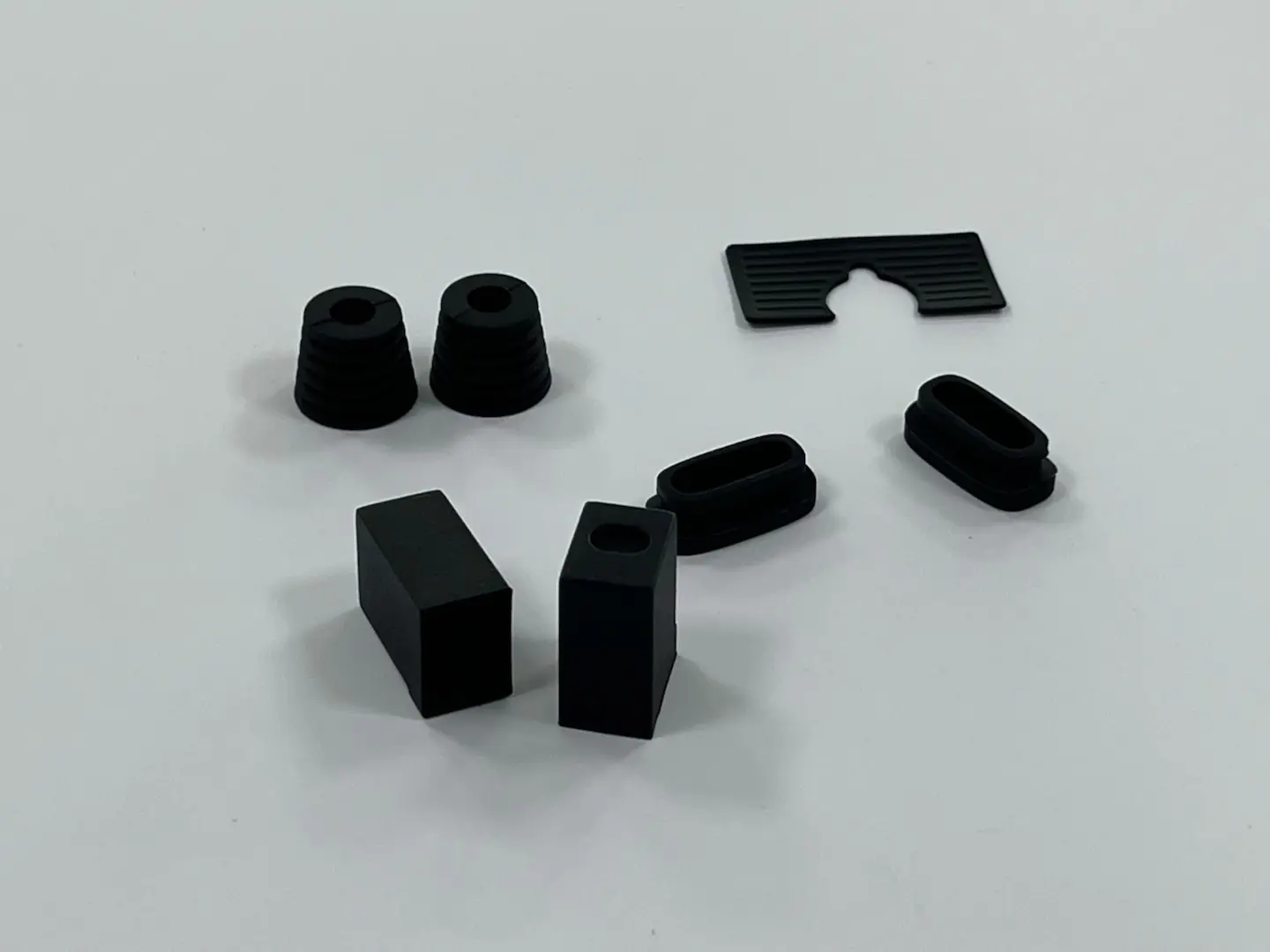

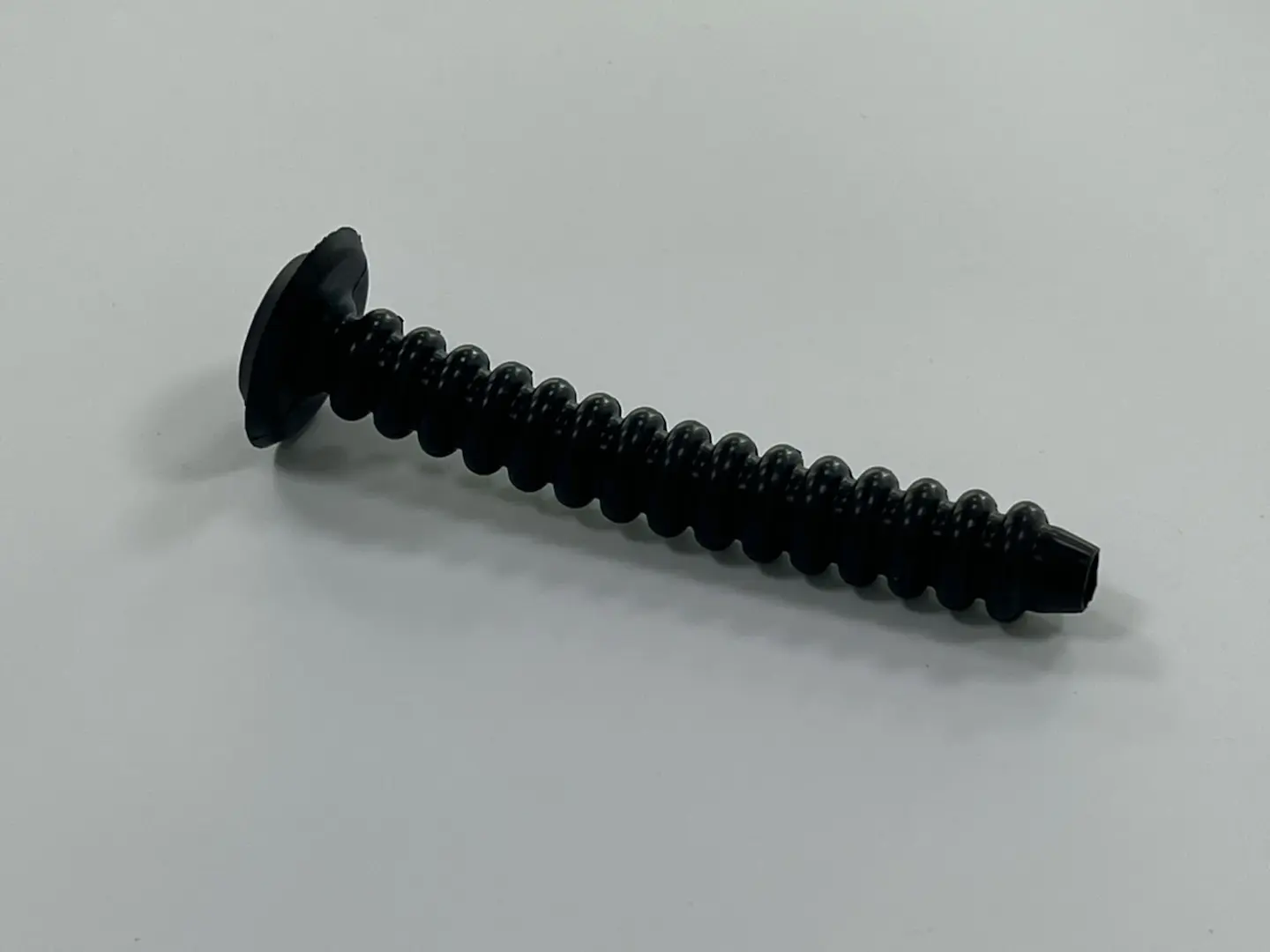

Rubber compression molding is widely used for flexible sealing components.
Common rubber materials include:
| Material | Characteristics | Applications |
|---|---|---|
| Natural Rubber (NR) | Excellent elasticity | Seals and vibration dampers |
| Silicone Rubber (VMQ) | High temperature resistance | Medical and food applications |
| EPDM | Excellent weather resistance | Automotive seals |
| Nitrile Rubber (NBR) | Oil resistance | Industrial seals |
| Fluoro Rubber (FKM) | Chemical and heat resistance | High-performance seals |
Compression molding is widely used for composite materials.
Common composite materials include:
| Material | Characteristics | Applications |
|---|---|---|
| SMC (Sheet Molding Compound) | High strength and surface quality | Automotive panels |
| BMC (Bulk Molding Compound) | Electrical insulation | Electrical housings |
| Carbon Fiber Composite | High strength and lightweight | Aerospace |
| Glass Fiber Reinforced Plastic (GFRP) | Strong and corrosion resistant | Industrial equipment |
Start Your Compression Molding Project Today
Upload Your CAD Files and Get a Quote Within 24 Hours
Compression Molding FAQ
What is compression molding and how does it work?
Compression molding is a manufacturing process used to produce parts from thermoset plastics, rubber, or composite materials. In this process, a measured amount of raw material is placed into a heated mold cavity. The mold then closes and applies high pressure, forcing the material to flow and fill the cavity. Heat and pressure are maintained until the material cures and solidifies into the final shape. Once the curing process is complete, the mold opens and the finished part is removed. This process allows manufacturers to produce strong, dense parts with excellent structural integrity. Compression molding is particularly suitable for products requiring high mechanical strength, electrical insulation, and heat resistance.
What are the advantages of compression molding compared to injection molding?
Compression molding and injection molding are both widely used plastic manufacturing processes, but they have different advantages. Compression molding is ideal for thermoset materials and composite materials, while injection molding is typically used for thermoplastics. Compression molding allows thicker and larger components to be manufactured while maintaining excellent structural strength. The process also generates less material waste and provides superior fiber distribution when reinforced materials are used. However, injection molding usually offers faster cycle times for small thermoplastic parts. The choice between the two processes depends on material type, production volume, part geometry, and performance requirements.
What types of products are suitable for compression molding?
Compression molding is widely used to manufacture parts that require high strength, durability, and resistance to harsh environments. Typical products include automotive structural panels, electrical insulation components, rubber seals, industrial machine covers, and composite structural parts. The process is also suitable for producing thick-walled parts and components with embedded reinforcement materials. Because compression molding produces dense and structurally strong parts, it is often used in applications where mechanical performance is critical.
What is the typical lead time for compression molding production?
The production timeline for compression molding projects depends on several factors, including part complexity, mold design, and production volume. Mold manufacturing typically takes 3 to 6 weeks, depending on size and design complexity. Once the mold is completed, production cycles are relatively fast, especially for medium to large production runs. Additional processes such as trimming, machining, or finishing may extend the overall timeline. At GC Indus, we work closely with customers to optimize project schedules and ensure efficient delivery.
What are the typical tolerances achievable with compression molding?
Compression molding generally provides moderate dimensional accuracy compared with precision machining or injection molding. Typical tolerances range from ±0.1 mm to ±0.5 mm, depending on part size, material type, and mold design. Secondary machining operations may be used when tighter tolerances are required. Proper mold design and process control are essential to ensure consistent dimensional stability.
How strong are compression molded composite parts?
Compression molded composite parts can be extremely strong, particularly when reinforced with glass fiber or carbon fiber. Fiber-reinforced materials distribute loads effectively, providing excellent strength-to-weight ratios. These materials are often used in automotive structural components, aerospace parts, and industrial equipment where lightweight strength is critical. Proper fiber orientation and mold design are essential to maximize structural performance.
What surface finishes are available for compression molded parts?
Compression molded parts can have smooth mold surfaces directly from the mold. Additional finishing processes such as painting, coating, polishing, or trimming may be applied depending on aesthetic or functional requirements. Surface texture can also be designed directly into the mold cavity.
How long do compression molds last?
The lifespan of compression molds depends on production volume, material type, and maintenance practices. High-quality steel molds can typically last 50,000 to 200,000 cycles when properly maintained. Regular mold cleaning and inspection help extend mold life.
Can compression molding produce large parts?
Yes, compression molding is particularly suitable for large components compared with other plastic manufacturing processes. The process allows thicker materials and large structural parts to be produced without the flow limitations found in injection molding.
What factors influence compression molding quality?
Key factors affecting quality include material preparation, mold temperature, curing time, pressure control, and mold design. Proper process control ensures consistent material flow and complete curing, which are essential for achieving strong and defect-free parts.
Compression Molding Design Tips
When designing parts for compression molding, engineers should consider the following guidelines:
Maintain Uniform Wall Thickness
Uniform thickness ensures consistent curing and reduces the risk of warping or internal stress.
Avoid Sharp Corners
Rounded edges improve material flow and reduce stress concentration.
Consider Fiber Orientation
For reinforced composites, proper fiber orientation is critical for achieving maximum strength.
Include Proper Draft Angles
Draft angles help remove parts easily from the mold.
Typical draft angles:
External surfaces: 1°–3°
Internal surfaces: 2°–5°
Minimize Undercuts
Undercuts complicate mold design and increase production cost.
Allow for Shrinkage
Thermoset materials shrink slightly during curing, so molds must account for this behavior.
