Automotive zinc die casting parts are precision-engineered metal components produced by injecting molten zinc alloy into hardened steel dies under high pressure. They’re used throughout vehicle systems — from door handles and lock cylinders to steering column brackets and fuel system housings. The process delivers complex geometries, tight dimensional tolerances, and excellent surface finish, all at high production volumes and competitive cost. This guide covers everything procurement engineers, OEM buyers, and supply chain managers need to know: alloy selection, process mechanics, real-world applications, quality standards, and how to avoid the sourcing mistakes that cause costly rework.

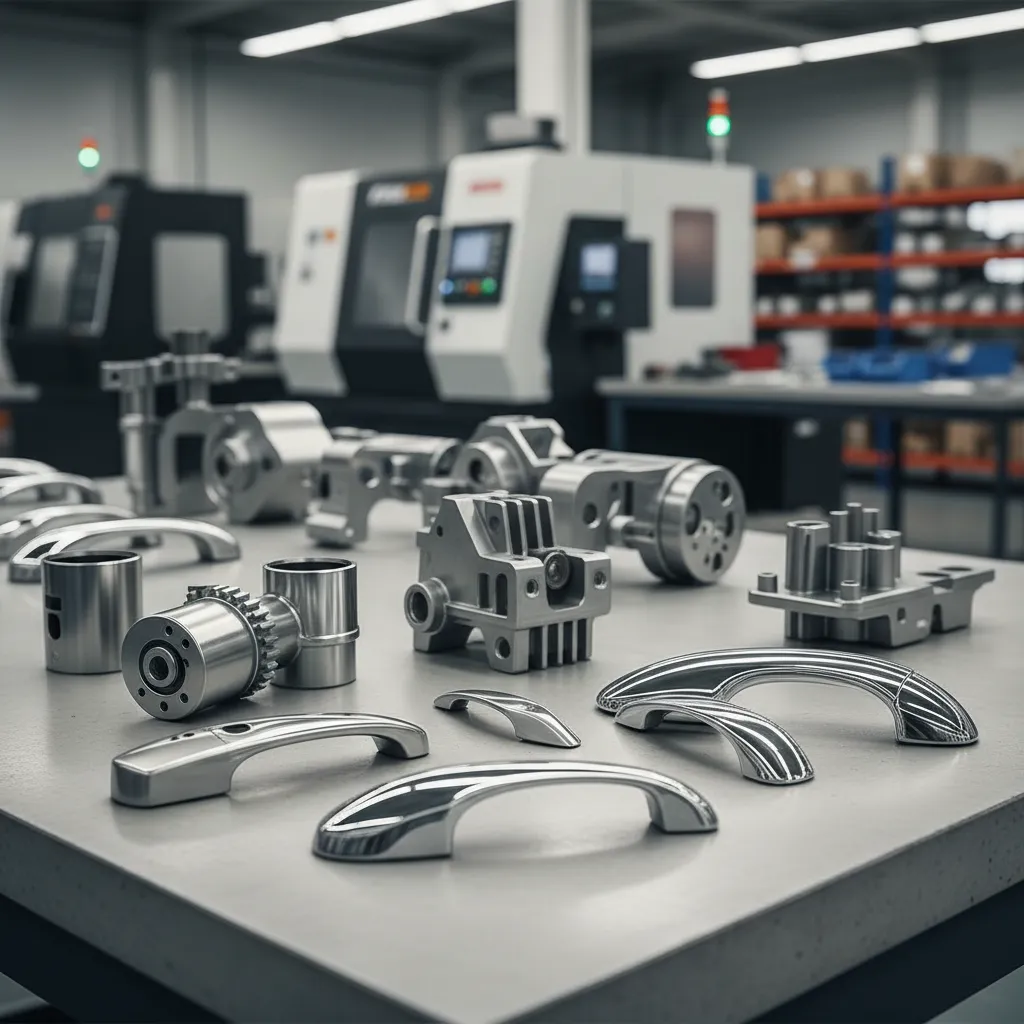

automotive zinc die casting parts including door handles lock cylinders and brackets

What Are Automotive Zinc Die Casting Parts?

Automotive zinc die casting parts are high-precision metal components made from zinc alloys, formed by forcing molten metal into steel molds under pressures typically ranging from 1,000 to 30,000 psi. They appear in virtually every subsystem of a modern vehicle.

Definition and Scope

The die casting process itself has been defined clearly by industry sources. According to Wikipedia’s die casting entry, the method forces molten metal under high pressure into a mold cavity, producing parts with excellent dimensional accuracy and smooth surfaces [1]. Zinc is one of the most commonly used metals in this process, alongside aluminum and magnesium.

Automotive zinc die casting parts specifically refers to components destined for vehicle assembly — parts that must meet strict dimensional, mechanical, and surface quality requirements. These aren’t commodity castings. They’re engineered to fit within tight assembly tolerances and survive demanding service conditions.

Where Zinc Die Cast Parts Appear in Vehicles

The range of applications is broader than most people expect. Bruschi’s analysis of zinc die casting in the automotive industry identifies four major application categories [2]:

Interior aesthetic parts: Door handles, trim clips, decorative bezels, seat adjustment knobs, and mirror housings
Sunroof components: Guides, rails, locking mechanisms, and actuator housings
Mechanical parts: Steering column brackets, gear shift components, brake hardware, and window regulators
Engine and under-hood components: Fuel pump housings, carburetor bodies, thermostat housings, and sensor brackets

The International Zinc Association’s automotive casting archive documents a particularly instructive example: a shift lever originally cast in aluminum was converted to zinc die casting, eliminating secondary tapping operations and reducing total part cost [3]. That kind of process-driven redesign is common in automotive zinc die casting.

As of 2026, the push toward electric vehicle (EV) platforms has expanded the application list. EV architectures require more precision-cast electrical connectors, battery management system housings, and structural brackets — all areas where zinc die casting’s combination of precision and conductivity provides genuine engineering value.

Pro Tip: When reviewing a part for zinc die casting suitability, check wall thickness first. Zinc handles walls as thin as 0.4mm, which makes it ideal for compact, lightweight automotive components that aluminum or steel can’t form as cleanly.

How Zinc Die Casting Works

Zinc die casting works by melting zinc alloy to approximately 380–420°C, then injecting it into a precision steel die under high pressure, where it solidifies in seconds and is ejected as a near-net-shape part.

The Hot-Chamber Process Explained

Zinc die casting almost exclusively uses the hot-chamber process, which is distinct from the cold-chamber method used for aluminum. In hot-chamber casting, the injection mechanism sits submerged in the molten metal bath. This allows faster cycle times and better metal flow control.

GET A QUOTE

The process follows a clear sequence:

Die preparation: The steel die halves are cleaned, lubricated with a release agent, and clamped together under high tonnage force.
Metal injection: A hydraulic plunger forces molten zinc alloy through a gooseneck and nozzle into the die cavity at pressures between 1,500 and 25,000 psi.
Solidification: The metal fills the cavity and solidifies within 1–30 seconds depending on part geometry and wall thickness.
Ejection: Die halves separate, and ejector pins push the part free. Runners and sprues are trimmed.
Finishing: Parts undergo trimming, shot blasting, CNC secondary machining (where required), and surface treatment.

According to RapidDirect’s technical overview of zinc die casting, cycle times for zinc hot-chamber casting can be as fast as 1–3 seconds for small parts, enabling production rates that aluminum cold-chamber processes simply can’t match [4].

Tooling and Dimensional Accuracy

Die tooling is the largest upfront cost in zinc die casting, but it’s also the source of the process’s precision advantage. Hardened H13 tool steel dies maintain dimensional stability across hundreds of thousands of shots. Casting-China.org’s technical guide notes that zinc die casting routinely achieves tolerances of ±0.025mm to ±0.05mm as-cast, with tighter tolerances achievable through secondary CNC machining [5].

That’s a critical point for automotive applications. Many functional surfaces — bearing bores, sealing faces, threaded inserts — need tolerances tighter than the die can produce alone. Secondary CNC operations on a 5-axis machining center bring those surfaces to final specification without scrapping the entire part.

Pro Tip: Design threaded holes for post-cast tapping rather than trying to cast threads directly. Cast threads in zinc are possible but add die complexity and wear faster. Tapped holes in zinc die castings hold threads exceptionally well due to the alloy’s hardness and density.

Key Benefits of Automotive Zinc Die Casting Parts

Automotive zinc die casting parts offer a combination of high strength, excellent surface finish, tight dimensional tolerances, and low per-unit cost at volume that few other manufacturing processes can match simultaneously.

Mechanical and Physical Advantages

Zinc alloys punch well above their weight class mechanically. PHB Inc.’s automotive zinc die casting guide highlights several key mechanical properties that make zinc the preferred choice for demanding automotive parts [6]:

High tensile strength: Zamak 2 reaches 359 MPa ultimate tensile strength — significantly higher than most aluminum die casting alloys
Excellent impact resistance: Zinc alloys absorb impact energy without brittle fracture, critical for door hardware and safety-adjacent components
Superior bearing properties: Zinc’s natural lubricity reduces wear in sliding contact applications, eliminating the need for separate bushings in some designs
Thermal conductivity: Good heat dissipation, useful for sensor housings and components near heat sources
Electrical conductivity: Relevant for EV connector housings and grounding components

zinc die casting process diagram showing mold cross-section for automotive zinc die casting parts production

Production Economics and Surface Quality

The economics of zinc die casting improve substantially at volume. Die tooling costs are offset quickly when cycle times are 2–5 seconds per part. Deco Products’ zinc die casting overview notes that zinc’s low melting point (around 380°C vs. 660°C for aluminum) reduces energy consumption per shot and extends die life significantly [7].

Surface quality is another genuine advantage. Zinc die castings come out of the die with surface finishes typically in the Ra 0.8–1.6 µm range — smooth enough for direct plating, painting, or powder coating without extensive pre-treatment. For automotive interior trim parts, this matters enormously: a Class A surface on a door handle or trim bezel requires minimal post-processing.

Property	Zinc (Zamak 5)	Aluminum (A380)	Magnesium (AZ91D)
Tensile Strength (MPa)	331	324	230
Density (g/cm³)	6.6	2.74	1.81
Melting Point (°C)	~380	~660	~595
Typical As-Cast Tolerance	±0.025mm	±0.05mm	±0.05mm
Die Life (shots)	500,000–1,000,000+	100,000–300,000	200,000–500,000
Corrosion Resistance	High	Moderate	Low (requires coating)

Zinc Die Casting Alloys for Automotive Applications

The Zamak family of zinc alloys — standardized under SAE J469 — dominates automotive zinc die casting, with Zamak 2, 3, 5, and 7 covering the vast majority of applications [8].

Zamak Alloy Selection Guide

Zamak (an acronym from the German words for zinc, aluminum, magnesium, and copper) alloys all contain roughly 4% aluminum as the primary alloying element, with varying amounts of copper and magnesium. The differences matter a lot in practice:

Zamak 2: Highest strength and hardness in the family (359 MPa UTS). Used for automotive parts requiring maximum mechanical performance — lock cylinders, gear components, and structural brackets. The copper content (2.7%) drives the strength but reduces ductility slightly.
Zamak 3: The industry workhorse. Excellent castability, good mechanical properties, and the best dimensional stability over time. Most automotive interior trim parts and non-structural components use Zamak 3.
Zamak 5: Adds 1% copper over Zamak 3, increasing strength and hardness while maintaining good castability. Common in fuel system components and mechanical hardware where Zamak 3 is borderline.
Zamak 7: Lower magnesium content than Zamak 3, which improves fluidity and surface finish. Preferred for thin-wall parts and components requiring superior plating adhesion.

Research published on ResearchGate covering zinc castings for automotive applications identifies a newer high-fluidity alloy development that allows ultra-thin wall casting — walls under 0.4mm — which is opening new design possibilities for EV connector housings and lightweight brackets [9].

ZA Alloys and High-Aluminum Variants

Beyond the Zamak family, ZA alloys (ZA-8, ZA-12, ZA-27) offer higher aluminum content and significantly greater strength. ZA-27 reaches tensile strengths above 400 MPa. These alloys are used for automotive parts that need to replace heavier steel or iron components without sacrificing structural integrity.

One limitation worth noting: ZA alloys require cold-chamber die casting equipment due to their higher melting points. That increases equipment cost and cycle time compared to hot-chamber Zamak casting. For most automotive zinc die casting parts, Zamak 5 or Zamak 2 provides sufficient strength without the process complications of ZA alloys.

GET A QUOTE

Common Challenges and Mistakes in 2026

The most common failures in this practice trace back to alloy contamination, poor die design, and inadequate quality controls — problems that are entirely preventable with the right process discipline.

Alloy Contamination and Intergranular Corrosion

Zinc alloys are sensitive to trace impurities. Lead, cadmium, and tin — even at parts-per-million levels — cause intergranular corrosion (IGC), a form of degradation where corrosion attacks grain boundaries rather than the surface uniformly. In automotive applications, IGC can cause a lock cylinder to seize, a fuel pump housing to crack, or a structural bracket to fail without visible surface warning.

SAE J469 sets strict impurity limits precisely because of this risk: lead must stay below 0.004%, cadmium below 0.003%, and tin below 0.001% [8]. A common mistake is sourcing recycled zinc without verifying impurity levels against these limits.

Design and Process Pitfalls

From experience reviewing automotive zinc die casting failures, several design and process errors appear repeatedly:

Insufficient draft angles: Zinc’s excellent castability tempts designers to minimize draft angles. Even 0.5° insufficient draft causes ejection damage and die wear. Standard recommendation is 1–2° minimum on external surfaces.
Uneven wall thickness: Abrupt thickness transitions create hot spots during solidification, leading to shrinkage porosity (internal voids that weaken the part). Gradual transitions and consistent wall thickness prevent this.
Ignoring dimensional aging: Zamak alloys, particularly Zamak 3, experience slight dimensional change in the first few weeks after casting due to natural aging. Parts with very tight tolerances should be machined after a stabilization period or artificially aged.
Over-specifying secondary machining: Zinc die casting achieves excellent as-cast tolerances. Specifying CNC machining on surfaces that don’t functionally require it adds cost without benefit.
Selecting the wrong alloy for the environment: Zamak alloys perform well in moderate environments but need appropriate surface treatment for continuous exposure to road salt, brake fluid, or high temperatures above 120°C.

Industry analysts suggest that as many as 30% of automotive zinc die casting quality escapes in 2024–2026 trace back to supplier qualification gaps rather than inherent process limitations. Verifying that a supplier holds ISO 9001 certification and follows documented process controls isn’t optional — it’s the baseline.

Best Practices for Sourcing and Specifying in 2026

Effective sourcing of this method in 2026 requires clear technical specifications, verified supplier quality systems, and a design-for-manufacturability review before tooling is cut.

Specification and DFM Requirements

The single highest-value activity before committing to tooling is a Design for Manufacturability (DFM) review. DFM for zinc die casting examines:

Wall thickness uniformity: Target 1.5–4mm for most automotive zinc die casting parts; avoid transitions greater than 3:1 ratio
Draft angle adequacy: Minimum 1° on all surfaces parallel to die draw direction; 2–3° preferred
Undercut management: Minimize side actions (slides) in the die; each adds tooling cost and a potential leak point
Gate and runner placement: Gate location affects fill pattern, porosity distribution, and surface quality; review with the caster before finalizing
Insert and overmold requirements: Zinc die casting accommodates threaded inserts and overmolded components — specify these clearly in the drawing package

Leech Industries’ zinc die casting technical resources emphasize that complex precision components benefit most from early collaboration between the design engineer and the die caster — changes made after tooling is cut are expensive [10].

Supplier Qualification and Quality Assurance

For automotive supply chains, supplier qualification goes beyond a capability statement. Verify these specific items:

ISO 9001 certification (quality management system baseline)
IATF 16949 certification for Tier-1 and Tier-2 automotive suppliers
Documented material traceability for zinc alloy ingot sourcing
First Article Inspection (FAI) capability with full dimensional reporting
Statistical Process Control (SPC) implementation on critical dimensions
Surface treatment capability in-house or verified subcontractor

Pro Tip: Request a Process Failure Mode and Effects Analysis (PFMEA) from any supplier quoting automotive zinc die casting parts. A supplier who can’t produce a PFMEA hasn’t thought through their process risks — and you’ll inherit those risks in your supply chain.

At GC INDUS, we’ve found that the most successful automotive zinc die casting projects start with a complete drawing package (STEP file plus 2D drawing with GD&T callouts), a clear alloy specification referencing SAE J469, and a surface treatment requirement tied to the part’s service environment. Suppliers who receive complete information produce better first articles and fewer revision cycles.

Our team at GC INDUS recommends pairing zinc die casting with in-house CNC secondary machining for any automotive part with functional bores, sealing surfaces, or threaded features. Holding tolerances to ±0.001mm on critical features after casting eliminates the fit and function issues that cause expensive assembly line stoppages.

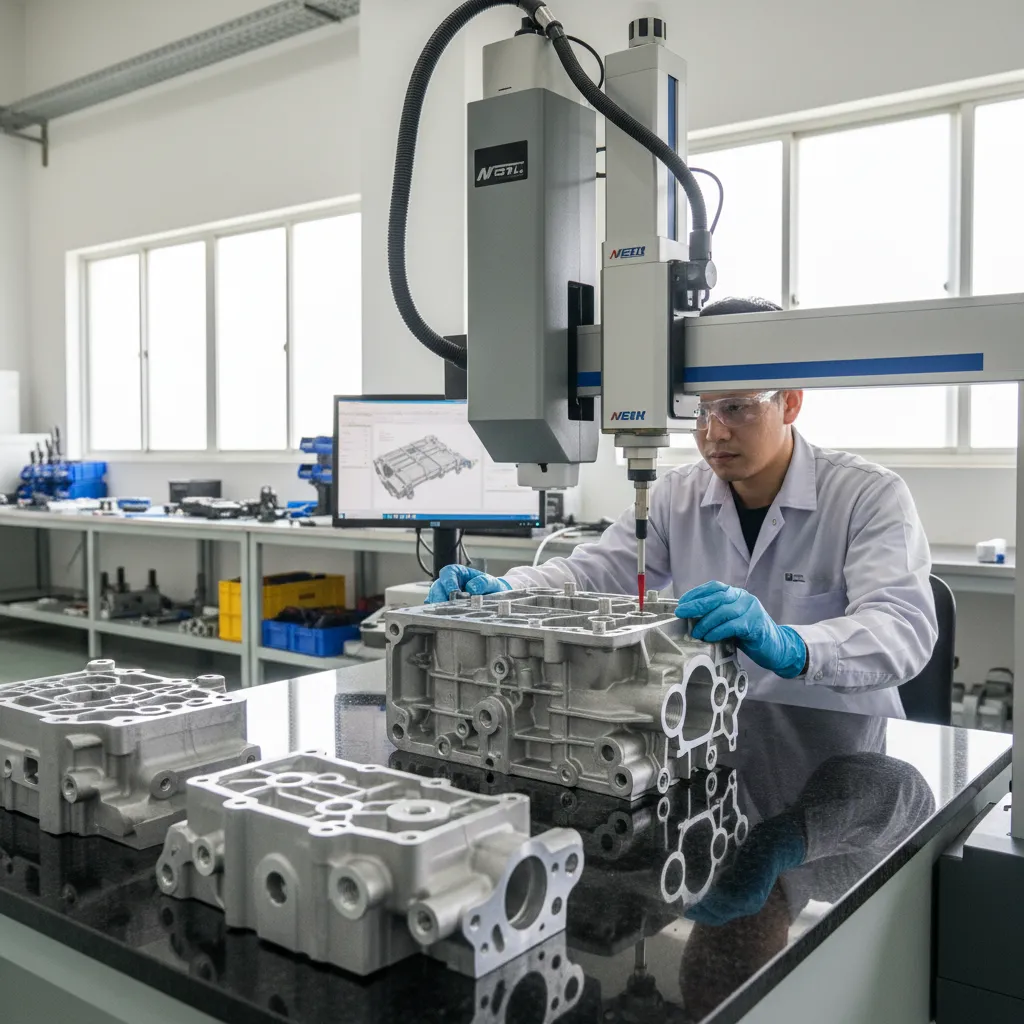

quality inspector using CMM to measure automotive zinc die casting parts in precision manufacturing facility
