High Pressure Die Casting Parts: A Complete Guide
Discover how high pressure die casting parts are made, which alloys work best, key benefits, common defects, and expert tips for 2026 production success.
| Key Insight | Explanation |
|---|---|
| Process Definition | High pressure die casting forces molten metal into a steel die at pressures between 10 MPa and 175 MPa, producing near-net-shape parts with tight dimensional tolerances. |
| Common Alloys | Aluminum, zinc, and magnesium are the dominant alloys used, each offering a distinct balance of weight, strength, and corrosion resistance. |
| Production Speed | Cycle times can be as short as 15–60 seconds per part, making HPDC one of the fastest metal-forming processes for high-volume runs. |
| Key Industries | Automotive, aerospace, consumer electronics, and medical equipment are the primary end markets for HPDC components as of 2026. |
| Main Challenge | Porosity (trapped gas pockets) is the most common defect, managed through proper venting, vacuum-assisted casting, and optimized injection parameters. |
| Quality Standards | ISO 9001 quality management and NADCA (North American Die Casting Association) standards govern dimensional and surface quality requirements globally. |
High pressure die casting parts are metal components produced by injecting molten alloy into a hardened steel die at pressures ranging from 10 MPa to 175 MPa, yielding dimensionally accurate, high-volume parts with excellent surface finish. The process is fast, repeatable, and cost-effective for complex geometries. Engineers across automotive, electronics, and medical sectors rely on it because no other metal-forming method matches its combination of speed and dimensional consistency at scale.
This guide covers everything you need to know: how the process works step by step, which alloys perform best, the real advantages over competing processes, the defects that trip up even experienced manufacturers, and the best practices that separate good castings from great ones.
What Is High Pressure Die Casting?
High pressure die casting (HPDC) is a metal-forming process where molten metal is forced under high pressure into a precision-machined steel die cavity, held until solidification, then ejected as a finished or near-finished part. It’s faster and more dimensionally consistent than sand casting or gravity casting, making it the preferred method for complex, high-volume metal parts.
Formal Definition and Context
According to the North American Die Casting Association (NADCA), die casting is a manufacturing process that uses high pressure to inject liquid metal into a reusable steel die [1]. The “high pressure” designation distinguishes it from gravity casting and low-pressure casting, where metal flows primarily under its own weight or modest pressure.
As noted by Wikipedia’s die casting entry, HPDC is an upgraded version of older gravity and cold-chamber metal-forming methods [2]. The high-pressure injection fills the die cavity in milliseconds, capturing fine details and thin walls that slower processes can’t reliably reproduce.
Why It Matters for Engineers and Buyers
The practical significance is straightforward. You get complex shapes, tight tolerances, and smooth surfaces in one operation, without extensive secondary machining. That translates directly into lower per-part cost at volume.
- Produces net-shape or near-net-shape parts, minimizing material waste
- Supports wall thicknesses as thin as 0.5 mm in some aluminum alloys
- Delivers surface finishes of Ra 1.6–3.2 µm directly from the die
- Tolerances as tight as ±0.05 mm achievable on well-designed tooling
- Reusable steel dies last 100,000 to 1,000,000+ shots depending on alloy and process conditions
Industry analysts at ScienceDirect note that HPDC is particularly suited for aluminum and magnesium components in structural automotive applications, where weight reduction and dimensional repeatability are both critical [3].
Pro Tip: If your part has a projected area under 500 cm² and a production volume above 10,000 units annually, HPDC almost always delivers a lower total cost per part than CNC machining from billet, even after tooling amortization.
How High Pressure Die Casting Works
The HPDC process forces molten metal into a locked steel die using a hydraulic plunger, fills the cavity in under a second, and ejects the solidified part in a cycle that typically takes 15–60 seconds from start to finish.
Step-by-Step Process Breakdown
Understanding the sequence helps you design better parts and anticipate where defects originate. The process follows a consistent cycle regardless of machine size or alloy.
- Die preparation: The die halves are cleaned, lubricated with a release agent, and closed under clamping force (measured in tons, typically 100–4,000 tons for production machines).
- Metal melting: The alloy is melted in a separate furnace and held at a controlled temperature. For aluminum, this is typically 620–680°C.
- Injection: A measured shot of molten metal is ladled or pumped into the shot sleeve. The hydraulic plunger then drives the metal into the die at pressures between 10 MPa and 175 MPa.
- Solidification: The metal cools and solidifies under intensification pressure, which is maintained to compensate for shrinkage.
- Die opening and ejection: Ejector pins push the solidified casting out of the die cavity.
- Trimming: Flash (thin metal fins at parting lines) and runners are trimmed, typically in a dedicated trim die.
- Inspection and finishing: Parts are checked dimensionally and visually, then sent for surface treatment, heat treatment, or machining as required.
Hot Chamber vs. Cold Chamber Machines
There are two main machine types, and the choice depends on the alloy being cast.
| Feature | Hot Chamber | Cold Chamber |
|---|---|---|
| Suitable Alloys | Zinc, lead, tin | Aluminum, magnesium, copper |
| Injection System | Submerged in molten metal bath | Separate from furnace |
| Cycle Time | Faster (15–30 sec) | Slower (30–60 sec) |
| Injection Pressure | Up to 35 MPa | Up to 175 MPa |
| Part Size Range | Small to medium | Small to large |
| Tooling Life | Up to 1,000,000 shots | 100,000–500,000 shots |
Research published on DiVA Portal confirms that the high-pressure die-cast process is used to produce parts from aluminum, magnesium, copper, and zinc, with each alloy family requiring distinct process parameter settings [4].

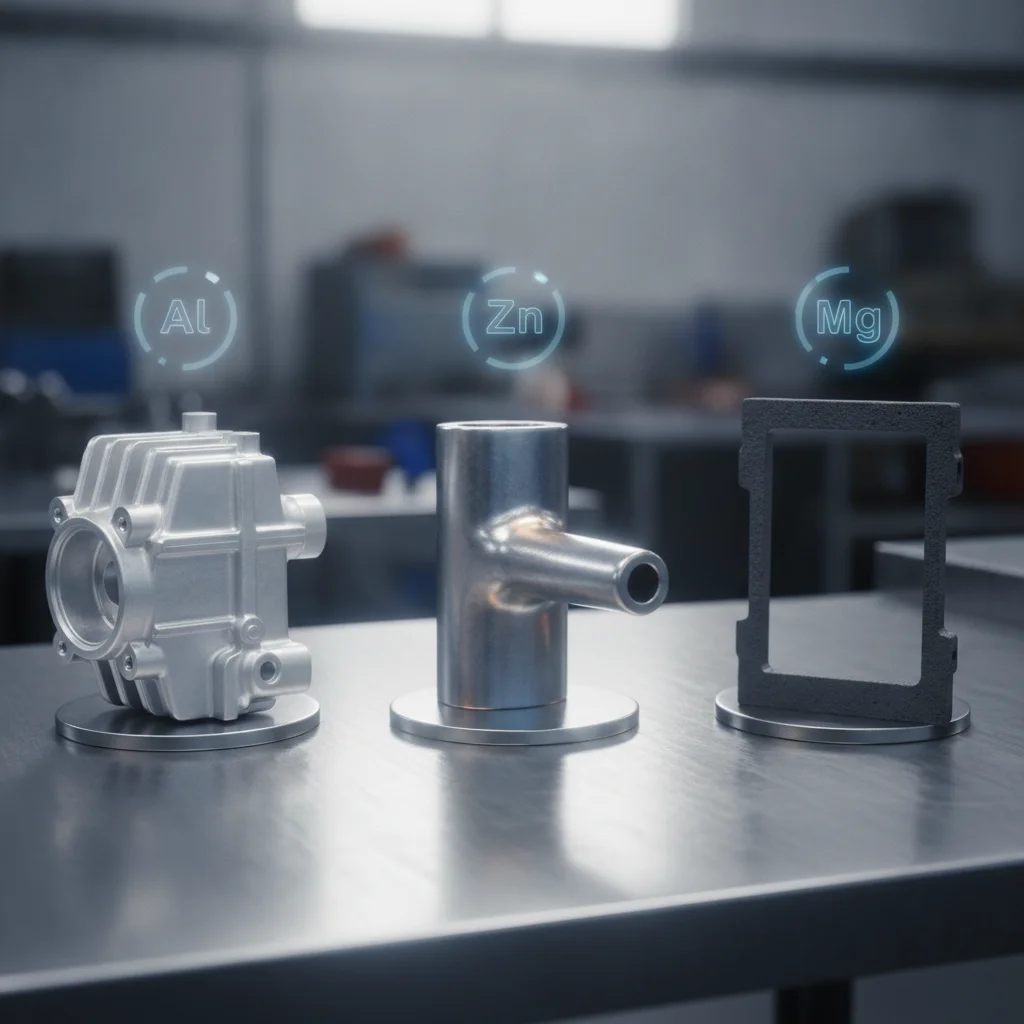

Alloys and Materials for HPDC Parts
Aluminum, zinc, and magnesium alloys account for the vast majority of high pressure die casting parts produced globally, each chosen for a specific balance of mechanical properties, weight, and cost.
Aluminum Alloys: The Dominant Choice
Aluminum is the most widely used HPDC material as of 2026. According to PHB Inc., aluminum die cast parts are corrosion resistant, highly conductive, and offer a good stiffness and strength-to-weight ratio [5]. The most common aluminum die casting alloys are A380, A383, and A360.
- A380: The industry workhorse. Good fluidity, excellent pressure tightness, and strong mechanical properties. Used in automotive housings, electronics enclosures, and hand tools.
- A383 (ADC12): Better die-filling characteristics for complex geometries. Common in thin-wall electronic components.
- A360: Superior corrosion resistance and pressure tightness. Selected for marine and outdoor applications.
Zinc, Magnesium, and Other Alloys
Zinc alloys (Zamak family: Zamak 2, 3, 5, 7) offer the highest dimensional accuracy of any HPDC material and are cast in hot-chamber machines. They’re ideal for small, intricate parts like locks, connectors, and decorative hardware.
Magnesium alloys (AZ91D, AM60B) are the lightest structural metals used in HPDC. They’re gaining traction in automotive seat frames, steering columns, and laptop housings where weight reduction is a priority. As noted by Fictiv, medical equipment manufacturers also rely on HPDC for components requiring both biocompatibility and precise dimensions [6].
- Zinc: Highest precision, longest die life, best for small intricate parts
- Magnesium: Lightest structural metal, excellent EMI shielding, growing in EV applications
- Copper/Brass: High strength and conductivity, used in plumbing and electrical components
- Lead/Tin: Niche applications in radiation shielding and specialty bearings
Key Benefits of High Pressure Die Casting Parts
this approach deliver a unique combination of high production speed, tight dimensional tolerances, and complex geometry capability that few competing processes can match at equivalent volumes.
Production Efficiency and Cost Economics
The economics of HPDC are compelling at scale. Cycle times of 15–60 seconds mean a single machine can produce thousands of parts per shift. Die tooling is expensive upfront (typically $15,000–$100,000+ depending on complexity), but that cost amortizes quickly over large runs.
- Cycle times 5–10x faster than sand casting for equivalent part complexity
- Minimal secondary machining required on well-designed parts
- High material utilization: runners and gates are typically recycled
- Multi-cavity dies produce 2, 4, or more parts per shot, further reducing per-part cost
- Automated ladling and extraction reduce labor costs significantly
According to Chicago White Metal Casting, HPDC is commonly selected when both high volume and complex geometry requirements exist simultaneously [7]. That combination is where the process truly excels.
Dimensional Accuracy and Surface Quality
HPDC consistently achieves tolerances of ±0.1 mm on standard features, with tighter tolerances possible on critical dimensions through process optimization or post-cast CNC machining. Surface finish directly from the die is typically Ra 1.6–3.2 µm, which is sufficient for many functional surfaces without additional processing.
- Repeatable part-to-part consistency across large production runs
- Thin walls (as low as 0.5–1.0 mm) achievable in aluminum
- Complex internal features (bosses, ribs, undercuts with slides) incorporated in one shot
- Insert casting allows steel or brass inserts to be cast in place
Pro Tip: At GC INDUS, we’ve found that combining HPDC with post-cast CNC machining on critical bore and mating surfaces delivers the best of both worlds: the speed and geometry of casting, with the precision of machining on the features that actually matter for assembly fit.
Common Challenges and Defects in 2026
The most persistent challenge in this approach production is porosity, a defect caused by trapped gas or shrinkage voids that weakens the part and can cause pressure leaks in fluid-carrying components.
Porosity: The Primary Defect
Porosity (the presence of gas or shrinkage voids within the casting) is the single most common defect in HPDC. It occurs because air and gases in the die cavity don’t fully escape before the metal solidifies. There are two types:
- Gas porosity: Caused by air entrapment during high-speed injection. Appears as rounded voids, typically near the gate or in thick sections.
- Shrinkage porosity: Caused by volumetric contraction during solidification. Appears in the last areas to solidify, often in thick sections or isolated bosses.
Research published in the International Journal of Engineering Research and Technology demonstrates that simulation-based process optimization is now the most effective method for identifying and minimizing die casting defects before tooling is cut [8].
Other Common Defects and Misconceptions
Porosity gets the most attention, but it’s not the only challenge. In practice, the following issues are also frequently encountered:
- Cold shuts: Two metal streams meet and don’t fully fuse, creating a visible line and a weak joint. Caused by low metal temperature or slow fill speed.
- Soldering: Molten metal sticks to the die surface, causing surface defects and die damage. Managed through proper die coating and temperature control.
- Flash: Excess metal at parting lines due to insufficient clamping force or worn die edges. Requires trimming and can indicate tooling wear.
- Misrun: Incomplete fill of the die cavity. Caused by insufficient metal temperature, injection speed, or venting.
A common misconception is that higher injection pressure always improves part quality. In practice, excessive pressure increases turbulence and gas entrapment, worsening porosity. The optimal pressure depends on part geometry, alloy, and die design.
Pro Tip: Vacuum-assisted die casting (VADC) reduces gas porosity by evacuating the die cavity before injection. It adds process complexity and cost, but for parts that require heat treatment or pressure tightness, it’s often the only reliable solution.
Best Practices for High Pressure Die Casting Parts in 2026
The most effective approach to producing quality the practice in 2026 combines upfront design-for-manufacturing (DFM) analysis, simulation-based process optimization, and rigorous in-process inspection protocols.
Design for Manufacturing (DFM) Principles
Good part design prevents most defects before the first shot is cast. Engineers who understand HPDC constraints build them into the part geometry from the start.
- Draft angles: Add 1–3° draft on all surfaces parallel to the die draw direction. This allows clean ejection and extends die life.
- Uniform wall thickness: Avoid abrupt section changes. Transition gradually between thick and thin sections to prevent shrinkage porosity.
- Rib design: Use ribs instead of thick sections to add stiffness. Rib thickness should be 50–70% of the adjacent wall.
- Fillet radii: Avoid sharp internal corners. A minimum radius of 0.5–1.0 mm reduces stress concentrations and improves metal flow.
- Parting line placement: Place the parting line where flash removal is easiest and cosmetic requirements are lowest.
According to DyCast Specialties, proper die design and material selection are the two most critical factors in achieving consistent, defect-free HPDC parts [9].

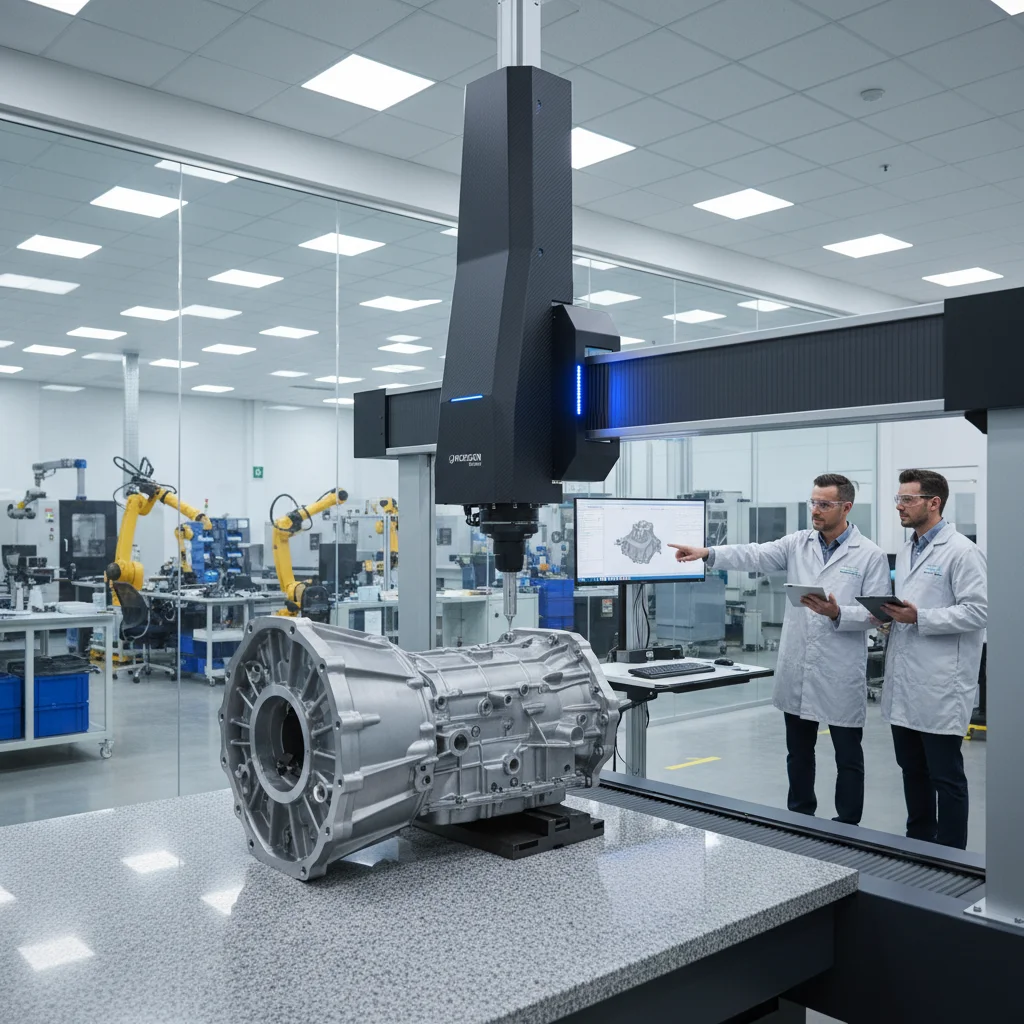

Process Control and Quality Assurance Standards
Process consistency requires monitoring and controlling the key variables throughout every production run. ISO 9001 quality management systems provide the framework for documenting and controlling these variables.
- Monitor metal temperature at the furnace and shot sleeve (±5°C tolerance recommended)
- Control injection speed and pressure profiles via closed-loop machine control
- Track die temperature using thermocouples; maintain within ±10°C of target
- Perform first-article inspection (FAI) against the approved drawing before full production
- Use X-ray or CT scanning for internal porosity evaluation on safety-critical parts
- Maintain Statistical Process Control (SPC) charts for critical dimensions
Our team at GC INDUS recommends combining HPDC with post-cast CNC machining for tight-tolerance features (below ±0.05 mm), since casting alone can’t reliably hold those dimensions across a full production run. This hybrid approach is standard practice for automotive and medical components where assembly fit is non-negotiable.
As of 2026, digital process twins (virtual models of the casting process updated in real time from machine data) are being adopted by leading manufacturers to predict defects before they occur. This approach, combined with simulation tools referenced in DiVA Portal research, is reducing scrap rates by 20–40% compared to traditional trial-and-error process development [4].
Sources & References
- North American Die Casting Association (NADCA), “Frequently Asked Questions,” 2026
- Wikipedia, “Die Casting,” 2026
- ScienceDirect, “High Pressure Die Casting — an Overview,” 2026
- DiVA Portal, “Optimization of Product Parts in High Pressure Die Casting,” 2015
- PHB Inc., “What is Aluminum Die Casting?,” 2026
- Fictiv, “High-Pressure Die Casting: Process, Applications, and Materials,” 2026
- Chicago White Metal Casting, “What is High Pressure Die Casting?,” 2026
- International Journal of Engineering Research and Technology (IJERT), “Simulation of High Pressure Die Casting Process for Identifying and Minimising Defects,” 2026
- DyCast Specialties Corporation, “High-Pressure Die Casting,” 2026
- Kinetic Die Casting, “What is the Difference Between Low Pressure and High Pressure Die Casting Parts?,” 2026
Frequently Asked Questions
1. What is a high pressure die casting?
High pressure die casting is a metal-forming process in which molten metal is injected into a precision-machined, locked steel die at pressures between 10 MPa and 175 MPa using a hydraulic plunger. The metal fills the cavity in milliseconds, solidifies under sustained pressure to compensate for shrinkage, and is then ejected as a dimensionally accurate, near-net-shape part. Unlike gravity or low-pressure casting, HPDC captures fine details, thin walls, and complex geometry in a single fast cycle, making it the preferred process for high-volume production of aluminum, zinc, and magnesium components.
2. What alloys are used in high pressure die casting?
The primary alloys used for this practice are aluminum (A380, A383, A360), zinc (Zamak 2, 3, 5, 7), and magnesium (AZ91D, AM60B), with copper and brass alloys used in smaller volumes for high-strength or high-conductivity applications. Aluminum dominates because it offers an excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. Zinc alloys deliver the highest dimensional accuracy and longest die life. Magnesium is the lightest option and is growing rapidly in electric vehicle and portable electronics applications as of 2026.
3. What is the difference between low pressure and high pressure die casting parts?
As explained by GC INDUS Die Casting, high pressure die casting uses injection pressures of 10–175 MPa and cycle times of 15–60 seconds, making it ideal for high-volume, complex parts. Low pressure die casting uses pressures of 0.02–0.1 MPa and relies on a rising metal column to fill the die slowly, producing denser, lower-porosity parts better suited for structural wheels and suspension components. High pressure is faster and cheaper per part at volume; low pressure produces better metallurgical integrity for safety-critical structural applications.
4. What industries use high pressure die casting parts?
Automotive is the largest end market, consuming this method for engine blocks, transmission housings, brackets, and EV battery enclosures. Consumer electronics is the second largest, using HPDC for laptop chassis, smartphone frames, and heat sinks. Aerospace, industrial machinery, medical equipment, and telecommunications infrastructure are also significant users. As of 2026, the rapid growth of electric vehicles is driving a surge in demand for large-format aluminum HPDC structural components, sometimes called “mega-castings.”
5. Can high pressure die casting parts be heat treated?
Standard HPDC parts cannot be heat treated using conventional T6 solution heat treatment because the gas porosity trapped during high-speed injection will expand and blister the surface when heated above approximately 200°C. However, parts produced using vacuum-assisted die casting (VADC) or squeeze casting have sufficiently low porosity to withstand T6 heat treatment, which significantly improves yield strength and hardness. This is an important design consideration for structural automotive and aerospace applications where both casting efficiency and elevated mechanical properties are required.
6. How do you minimize porosity in high pressure die casting parts?
Minimizing porosity requires a multi-pronged approach: optimize die venting and overflow design to allow gas to escape during fill; use vacuum-assisted die casting to evacuate the cavity before injection; control injection speed to reduce turbulence; maintain consistent metal temperature to ensure good fluidity without excessive gas pickup; and use simulation software before cutting tooling to identify problem areas. In practice, combining good die design with process simulation reduces porosity-related scrap by 20–40% compared to trial-and-error methods.
7. What tolerances can high pressure die casting parts achieve?
Standard HPDC tolerances for aluminum parts are ±0.1–0.2 mm for general dimensions and ±0.05 mm for critical features on well-maintained tooling. Zinc alloys can achieve tighter tolerances, sometimes ±0.025 mm, due to lower solidification shrinkage. For features requiring tolerances tighter than ±0.05 mm, such as bore diameters or mating surfaces, post-cast CNC machining is the standard approach. GC INDUS routinely combines HPDC with CNC finishing to hold tolerances as tight as ±0.001 mm on critical surfaces where assembly fit demands it.
This article covers the fundamentals, process mechanics, materials, benefits, defects, and best practices for this strategy. It does not cover investment casting, sand casting, or semi-solid metal casting (thixocasting/rheocasting), which are separate processes with distinct trade-offs.
Conclusion
this approach remain one of the most efficient and cost-effective methods for producing complex metal components at scale. The process delivers speed, dimensional consistency, and geometric complexity that competing methods struggle to match. Choosing the right alloy, designing for manufacturability, controlling process variables, and applying rigorous inspection protocols are what separate consistently good castings from expensive scrap.
As of 2026, the combination of simulation-based process development, vacuum-assisted casting, and digital process monitoring is raising the quality bar across the industry. Manufacturers who adopt these practices produce fewer defects, waste less material, and deliver more consistent parts to their customers.
