Forging vs. Die Casting Parts: A Complete Guide
Compare forging and die casting parts by strength, cost, and application. Learn which process fits your project with expert guidance from GC INDUS. Discover.
| Key Insight | Explanation |
|---|---|
| Forging produces stronger parts | Mechanical compression aligns grain structure, yielding higher tensile strength and impact resistance than die casting. |
| Die casting enables complex geometry | Molten metal fills intricate mold cavities, producing near-net-shape parts with fine surface detail that forging can’t replicate. |
| Cost profiles differ by volume | Die casting has higher tooling costs but lower per-unit costs at scale; forging tooling is simpler but machining adds cost. |
| Material choice matters | Aluminum, magnesium, and zinc dominate die casting; steel, titanium, and aluminum alloys are common in forging applications. |
| Neither process is universally better | The right choice depends on part geometry, mechanical requirements, production volume, and budget constraints. |
| Post-process machining bridges the gap | CNC machining after forging or casting achieves tight tolerances (±0.001mm) that neither raw process delivers alone. |
Forging and die casting parts are two of the most widely used metal manufacturing methods, each producing finished components through fundamentally different physical principles. Forging shapes metal under compressive force; die casting fills a mold with molten metal under high pressure. Choosing between them determines your part’s strength, surface quality, dimensional accuracy, and total production cost. This guide covers both processes in depth so you can make the right call for your application.

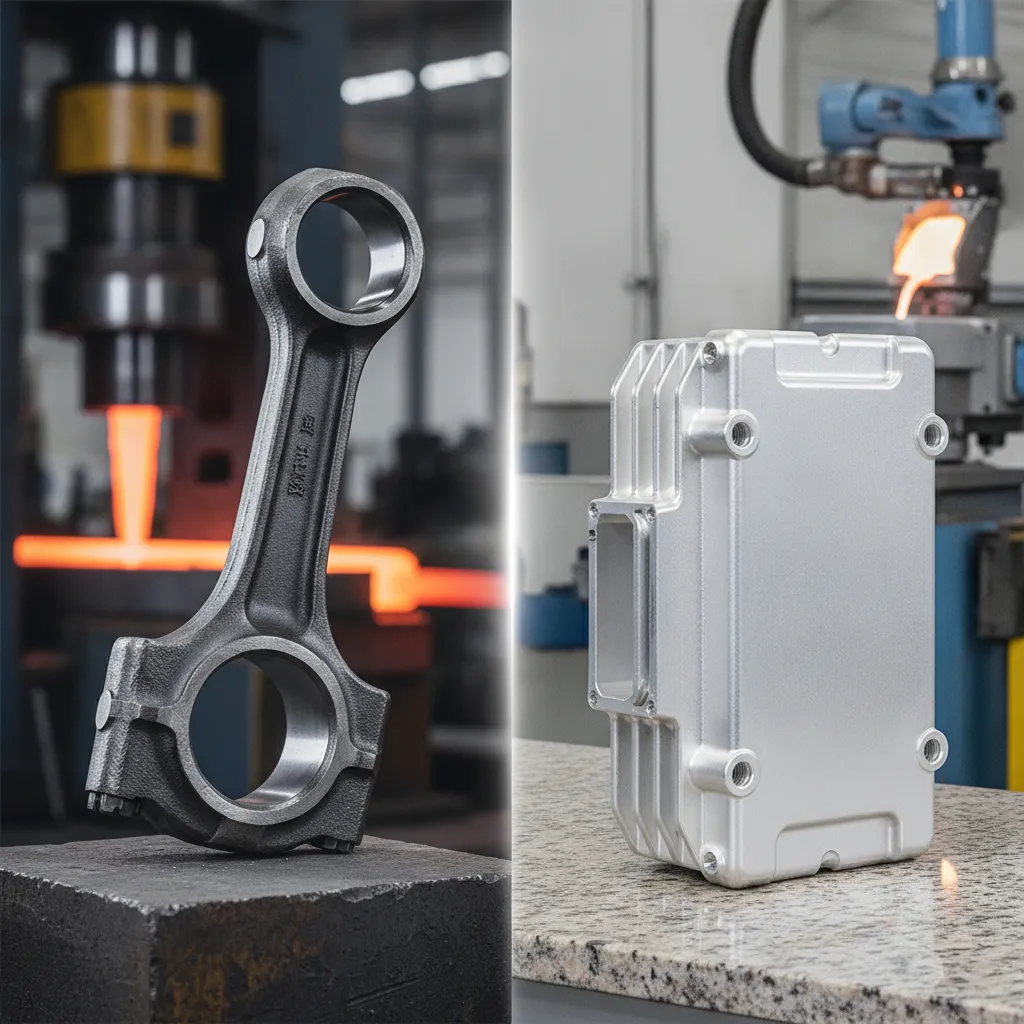

What Are Forging and Die Casting Parts?
Forging and die casting parts are metal components produced by two distinct processes: forging shapes solid metal billets through applied compressive force, while die casting injects molten metal into precision steel molds under high pressure. Both methods produce near-net-shape parts used across automotive, aerospace, medical, and industrial applications.
Forging: Shaping Metal Under Pressure
Forging is the process in which thermal and mechanical energy is applied to metal ingots or billets, deforming them into a desired shape. The metal is never melted. Instead, it’s compressed, either at room temperature (cold forging) or at elevated temperatures (hot forging), between dies that define the part’s final geometry.
The result is a part with a refined, continuous grain structure that runs through the entire cross-section. This is why forged parts consistently outperform cast parts in fatigue resistance, tensile strength, and impact toughness. Common forged components include crankshafts, connecting rods, axle shafts, gears, and structural aerospace brackets.
Die Casting: Precision from Molten Metal
Die casting is a metal casting process characterized by forcing molten metal under high pressure into a steel mold cavity, called a die. The die is precision-machined to produce parts with tight dimensional repeatability and fine surface detail. Once the metal solidifies, the die opens and the part is ejected.
Die casting excels where part geometry is complex, wall sections are thin, and production volumes are high. Aluminum, zinc, and magnesium are the most common die casting materials. Typical die cast parts include engine housings, transmission covers, consumer electronics enclosures, and medical device components.
Both forging and die casting parts serve as the foundational form before secondary operations like CNC machining, surface treatment, and heat treatment bring them to final specification.
How Each Process Works
Forging and die casting follow distinct manufacturing sequences, and understanding each step helps you anticipate lead times, tooling costs, and quality outcomes before you commit to a process.
The Forging Process Step by Step
- Billet preparation: Raw metal stock is cut to a calculated weight that matches the finished part volume.
- Heating (for hot/warm forging): The billet is heated to a specific temperature range, typically 900–1,250°C for steel, to increase ductility without melting.
- Die setup: Upper and lower dies, machined to the part’s inverse geometry, are mounted in a forging press or hammer.
- Compression: The press applies force, ranging from a few hundred tons to over 50,000 tons for large aerospace parts, deforming the billet into the die cavity.
- Flash trimming: Excess metal squeezed out at the die parting line (called flash) is trimmed away.
- Heat treatment: Many forgings undergo normalizing, quenching, or tempering to achieve target mechanical properties.
- CNC machining: Critical surfaces, bores, and threads are machined to final tolerance.
The Die Casting Process Step by Step
- Die design and fabrication: A precision steel die (typically H13 tool steel) is machined to the part’s exact geometry, including runners, gates, and cooling channels.
- Metal melting: The alloy is melted in a holding furnace and maintained at a controlled temperature.
- Injection: Molten metal is injected into the die cavity under pressures typically ranging from 10 to 175 MPa, depending on the alloy and part complexity.
- Solidification: The die’s cooling channels rapidly solidify the metal, typically in seconds.
- Ejection and trimming: The die opens, ejector pins push the part out, and gates and runners are removed.
- Post-processing: Parts may undergo shot blasting, CNC machining, anodizing, powder coating, or other surface treatments.
Pro Tip: Design your die cast parts with uniform wall thickness (typically 2–4mm for aluminum) to prevent porosity and shrinkage defects. Inconsistent walls are the leading cause of internal voids in die castings, and they’re almost always a design issue, not a process issue.
Forging and Die Casting Parts Compared: Strength, Cost, and Geometry
Forging and die casting parts differ most significantly in mechanical strength, geometric complexity, tooling investment, and per-unit cost, and understanding these trade-offs is the core of any process selection decision.
Mechanical Properties: Where Forging Wins
Forged parts consistently show better grain structure, higher tensile strength, yield strength, and toughness than die cast parts made from the same alloy. The compressive deformation during forging closes internal porosity and aligns the metal’s crystalline grain flow along the part’s stress lines. This is why safety-critical parts, think aircraft landing gear, automotive drive shafts, and orthopedic implant components, are almost always forged.
Die cast parts carry inherent porosity risk. High-pressure injection traps small amounts of gas within the solidifying metal, creating microscopic voids that reduce fatigue life. Vacuum-assisted die casting and squeeze casting reduce this, but they add cost and complexity.
Geometry, Tolerances, and Surface Finish
Die casting has a clear advantage in geometric freedom. Thin walls (as low as 0.5mm in some zinc alloys), undercuts, bosses, and fine surface textures are all achievable in a single shot. Forging, by contrast, is limited by the die’s ability to fill and release; deep undercuts and complex internal features aren’t possible without multi-piece dies or post-machining.
| Attribute | Forging | Die Casting |
|---|---|---|
| Tensile Strength | High (grain aligned) | Moderate (porosity risk) |
| Geometric Complexity | Limited (no undercuts) | High (thin walls, undercuts) |
| Surface Finish (as-produced) | Ra 3.2–12.5 µm | Ra 0.8–3.2 µm |
| Dimensional Tolerance (as-produced) | ±0.5–2.0mm | ±0.1–0.5mm |
| Tooling Cost | Moderate | High (steel dies) |
| Ideal Production Volume | Low to high (flexible) | Medium to very high |
| Common Materials | Steel, titanium, aluminum, nickel | Aluminum, zinc, magnesium, copper |
| Post-Machining Requirement | High (critical surfaces) | Low to moderate |
In practice, neither process delivers the final tolerance required for precision assemblies on its own. CNC machining after forging or casting is standard practice for achieving tolerances tighter than ±0.1mm. At GC INDUS, we hold post-machining tolerances to ±0.001mm on both forged and cast blanks, ensuring the finished part meets specification regardless of which primary process produced it.
Common Challenges and Mistakes to Avoid
The most costly mistakes in forging and die casting parts happen during the design phase, not production, and catching them early can save significant rework expense and schedule delays.
Design Mistakes That Drive Up Cost
A common mistake is specifying tight dimensional tolerances on as-forged or as-cast surfaces without planning for a subsequent machining operation. Neither process produces tolerances below ±0.1mm without post-processing. Specifying ±0.05mm on a die cast surface without a machining callout creates an impossible requirement for the foundry and leads to rejection rates that inflate cost.
Another frequent error is under-specifying draft angles (the slight taper on vertical walls that allows the part to release from the die). For die casting, draft angles of 1–3° on external walls and 2–5° on internal walls are standard. Forgings need similar consideration for die release. Missing these in the CAD model forces the toolmaker to add them without designer input, often in ways that compromise the part’s function.
- Ignoring porosity in structural analysis: Die cast parts with internal voids fail earlier than solid models predict. Request X-ray or CT inspection on safety-critical die cast parts.
- Oversizing forging stock: Ordering too large a billet wastes material and increases machining time. Work with your supplier to optimize billet weight early.
- Selecting the wrong alloy: Aluminum A380 is popular for die casting but has poor weldability. If your part needs welding post-casting, A356 or A413 are better choices. Our guide on material selection for machined parts covers this in more depth.
- Skipping DFM review: Design for Manufacturability (DFM) review by your supplier before tooling starts is the single highest-ROI step in any casting or forging project.
Process Selection Errors
Choosing die casting for a low-volume run of 500 parts rarely makes economic sense. Die tooling for a medium-complexity aluminum housing typically costs $15,000–$80,000. Amortized over 500 parts, that’s $30–$160 per part in tooling alone, before material or production costs. Open die forging or investment casting may be more cost-effective at those volumes.
Conversely, specifying forging for a housing with 12 internal bosses, 3 undercuts, and 1.5mm wall sections is asking for a process mismatch. That geometry is purpose-built for die casting. Forcing it into a forging requires multiple machining operations that cost more than the tooling savings.
Pro Tip: Run a side-by-side cost model before committing to either process. Factor in tooling amortization, scrap rate, machining hours, and inspection costs, not just the per-shot or per-strike price. The lowest quoted unit price often isn’t the lowest total cost.
Best Practices for Selecting Your Process in 2026
As of 2026, the decision between forging and die casting parts is increasingly driven by three converging factors: lightweighting requirements in automotive and aerospace, tighter quality standards in medical manufacturing, and supply chain pressure to consolidate vendors.
A Framework for Process Selection
Use this decision framework before finalizing your manufacturing approach:
- Step 1: Define the primary performance requirement. Is the part primarily structural (load-bearing, fatigue-critical)? Lean toward forging. Is it primarily functional-geometric (housing, cover, bracket with complex features)? Lean toward die casting.
- Step 2: Assess production volume. Under 1,000 parts, die casting tooling cost is hard to justify unless the geometry demands it. Over 10,000 parts, die casting’s low cycle time and high repeatability make it economically compelling.
- Step 3: Evaluate material requirements. If you need steel, titanium, or nickel alloys, forging is your primary option. Die casting is limited to non-ferrous alloys (aluminum, zinc, magnesium, copper).
- Step 4: Check tolerance requirements. If final tolerances are tighter than ±0.1mm, plan for CNC machining after either process. Ensure your supplier can deliver the complete workflow, not just the casting or forging step.
- Step 5: Confirm quality and compliance needs. Medical device and aerospace parts require documented inspection protocols, material certifications, and often ISO 13485 or AS9100 compliance from the supplier.
Quality Control Integration
Industry analysts consistently note that quality escapes in forging and casting supply chains trace back to insufficient incoming inspection, not manufacturing defects. Implementing quality control checkpoints, as detailed in our article on implementing quality control checkpoints, at the raw material stage, post-forging/casting, and post-machining catches defects before they propagate downstream.
Our team at GC INDUS recommends specifying inspection requirements in the purchase order, not just the drawing. Call out hardness testing, dimensional inspection methods (CMM, optical comparator), and surface integrity checks explicitly. Suppliers who push back on documented inspection are telling you something important about their process confidence.
For machined features on forged or cast blanks, CNC machining tolerance precision is the final arbiter of part conformance. Our separate guide on CNC machining tolerance precision covers how to specify and verify tolerances on machined surfaces systematically.
Pro Tip: For high-volume die casting programs, negotiate a First Article Inspection (FAI) protocol before production release. A full-dimensional FAI on 3–5 parts from the first production run, documented against your drawing, is the most cost-effective quality gate you can put in place. It catches die wear, gating issues, and shrinkage patterns before they affect thousands of parts.
Frequently Asked Questions
1. Is die casting the same as forging?
No, die casting and forging are fundamentally different processes. Die casting injects molten metal under high pressure into a steel mold, producing complex near-net-shape parts from non-ferrous alloys like aluminum and zinc. Forging compresses solid metal billets under mechanical force, never melting the material, which produces denser grain structures and significantly higher mechanical strength. The two processes serve different design requirements and aren’t interchangeable for structural applications.
2. What are the 4 types of forging?
The four primary types of forging are: (1) Open die forging, where the metal is shaped between flat or simple dies without fully enclosing it, used for large parts and custom shapes; (2) Closed die (impression die) forging, where the metal is compressed within a cavity that defines the part’s exact geometry; (3) Cold forging, performed at room temperature for high-volume, high-precision parts like fasteners and gears; and (4) Roll forging, where the metal passes between rotating rolls to reduce cross-section and elongate the billet, commonly used for shafts and tapered parts. Each type offers different trade-offs in tooling cost, material grain refinement, and achievable geometry.
3. What metals cannot be forged?
Cast iron is the most notable metal that cannot be forged. Its high carbon content and brittle microstructure cause it to crack under compressive deformation rather than flow plastically. Similarly, most intermetallic compounds and some brittle refractory metals (like tungsten and molybdenum in their pure forms at room temperature) are difficult or impossible to forge without specialized high-temperature equipment. Metals with very low ductility, regardless of composition, are generally poor candidates for forging. Most engineering metals, including steel, aluminum, titanium, copper, and nickel alloys, forge well with appropriate temperature control.
4. What is the difference between casting and forging parts?
The core difference between forging and die casting parts is how the metal is shaped. Casting melts the metal and pours or injects it into a mold, allowing complex geometries and thin walls but introducing porosity risk and a random grain structure. Forging deforms solid metal mechanically, preserving and aligning the grain structure for superior strength and fatigue resistance. Cast parts are generally better for complex, lightweight housings; forged parts are better for load-bearing, fatigue-critical structural components. Both require CNC machining for tight final tolerances.
5. Which is more cost-effective: forging or die casting?
Cost-effectiveness depends on volume, geometry, and material. Die casting has higher upfront tooling costs ($15,000–$80,000+ for a typical aluminum die) but very low per-unit costs at high volumes due to short cycle times (often under 30 seconds per shot). Forging has lower tooling costs for simple geometries but requires more post-machining, which adds labor and time. For volumes above 10,000 parts with non-ferrous materials, die casting typically wins on unit cost. For structural steel parts at any volume, forging is often the only viable option. Results vary based on part complexity and your specific situation.
6. Can forged and die cast parts be machined to tight tolerances?
Yes. Both forging and die casting produce near-net-shape blanks that require CNC machining to achieve final dimensional tolerances. As-forged tolerances are typically ±0.5–2.0mm; as-cast die casting tolerances reach ±0.1–0.5mm. CNC machining of critical bores, mating faces, and threaded features brings both to tolerances as tight as ±0.001mm when performed on precision machining centers. This is standard practice for automotive, aerospace, and medical device components regardless of which primary forming process was used.
Conclusion
this strategy aren’t competing technologies so much as complementary ones, each optimized for a specific set of requirements. Forging delivers unmatched structural integrity for load-bearing, safety-critical applications. Die casting delivers geometric complexity and surface quality at high production volumes. The right choice depends on your part’s mechanical demands, geometry, material, and production quantity.
What both processes share is a dependency on precision post-processing. The forming step creates the shape; CNC machining creates the specification. Getting that second step right is just as important as choosing the right primary process.
GC INDUS handles both sides of that equation. We produce die cast and precision cast components in aluminum, magnesium, iron, steel, and stainless steel, then machine them to tolerances as tight as ±0.001mm under ISO 9001 and ISO 13485 quality systems. Whether you need 1 prototype or a full production run, our team brings the same inspection rigor and process discipline to every order. If you’re evaluating this approach for your next project, talk to our engineering team and get a fast quote within 24 hours.
