Precision Casting Parts: A Complete 2026 Guide
Learn how precision casting parts are made, what processes deliver the tightest tolerances, and how to choose the right manufacturing partner in 2026.
| Key Insight | Explanation |
|---|---|
| Precision casting enables complex geometries | Investment and die casting produce intricate shapes that would be difficult or cost-prohibitive to machine from solid stock. |
| Tight tolerances are achievable | Modern precision casting, combined with post-cast CNC finishing, can hold tolerances as tight as ±0.001mm for critical features. |
| Material selection is critical | Aluminum, stainless steel, magnesium, and iron each behave differently during solidification, affecting dimensional accuracy and surface finish. |
| Quality assurance drives reliability | ISO 9001-certified inspection protocols, including CMM measurement and X-ray inspection, are essential for aerospace, medical, and automotive parts. |
| Casting and machining work together | Most high-precision components combine net-shape casting with secondary CNC machining to achieve functional surface finishes and critical dimensions. |
| Single-source partnerships reduce risk | Using one manufacturer for casting, machining, heat treatment, and inspection eliminates tolerance stack-up errors between suppliers. |
Precision casting parts are metal components produced through controlled casting processes that deliver tight dimensional tolerances, fine surface finishes, and complex geometries in a single manufacturing step. They’re used across aerospace, medical devices, automotive, and industrial equipment. When designed and produced correctly, they reduce machining time, cut material waste, and deliver consistent, repeatable quality at scale.
The demand for precision casting parts has grown steadily through 2024 to 2026, driven by miniaturization in electronics, stricter tolerances in medical devices, and the push for lighter components in electric vehicles. Getting the process right, from alloy selection through final inspection, determines whether a part performs in the field or fails a quality audit.
This guide covers how precision casting works, which processes suit which applications, the real benefits and limitations, and the practices that separate reliable suppliers from inconsistent ones.
What Are Precision Casting Parts?

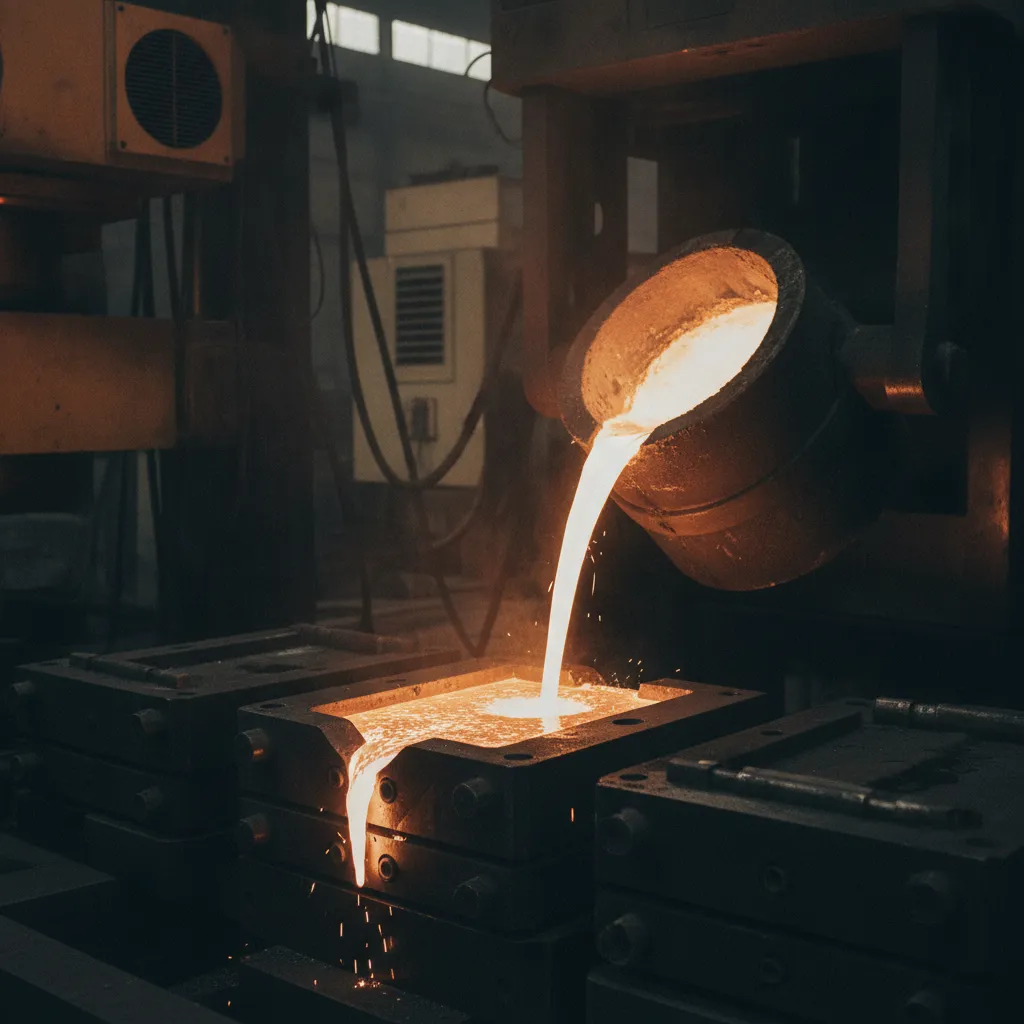

this method are metal components formed by pouring molten metal into a carefully prepared mold, then solidifying and finishing the part to achieve tight dimensional accuracy and repeatable geometry. They differ from standard castings in their tighter tolerances, finer surface finish requirements, and more rigorous inspection standards.
Definition and Scope
The term “precision casting” typically refers to two primary processes: investment casting (also called lost-wax casting) and die casting. Investment casting uses a wax pattern coated in ceramic shell to create a mold that’s destroyed after use. Die casting forces molten metal under high pressure into a reusable steel die. Both methods produce near-net-shape parts, meaning the cast component is very close to its final dimensions before any machining.
According to the TBSI technical resource on cast parts, precision casting is particularly well-suited for engine blocks, transmission housings, and suspension components where complex internal geometries and consistent wall thicknesses are non-negotiable.
this strategy span a wide range of materials:
- Aluminum alloys (most common for weight-sensitive applications)
- Stainless steel (corrosion resistance, medical and food processing)
- Magnesium alloys (lightest structural metal, electronics housings)
- Cast iron (high compressive strength, machine tool components)
- Nickel-based superalloys (high-temperature aerospace turbine parts)
Why Precision Casting Matters
Standard sand casting can hold tolerances of roughly ±0.5mm to ±1.0mm. Precision investment casting tightens that to ±0.1mm to ±0.25mm as-cast, with post-cast CNC machining pushing critical features to ±0.001mm. That gap is the difference between a part that fits and one that causes field failures.
Industry analysts note that as component complexity increases, precision casting often becomes more cost-effective than machining from solid billet, because it preserves material grain structure and reduces stock removal by 60-80% compared to subtractive manufacturing alone.
Pro Tip: When specifying precision casting parts, always define which dimensions are “critical” versus “reference.” Critical dimensions drive your inspection plan and directly affect your per-part cost. Treating every dimension as critical inflates cost without improving functional performance.
How Precision Casting Parts Are Made
this approach are produced through a multi-step process that begins with tooling design and ends with dimensional inspection, with each stage directly influencing the final part’s accuracy and surface quality.
The Investment Casting Process
Investment casting is the most widely used method for high-complexity, tight-tolerance parts. The process follows a defined sequence:
- Pattern creation: A wax replica of the part is injected into a metal die.
- Tree assembly: Multiple wax patterns are attached to a central sprue to form a “tree,” maximizing furnace efficiency.
- Shell building: The wax tree is repeatedly dipped in ceramic slurry and coated with refractory sand, building up 6-10 layers.
- Dewaxing: The ceramic shell is heated in an autoclave to melt and drain the wax, leaving a hollow mold.
- Casting: Molten metal is poured or vacuum-injected into the preheated ceramic shell.
- Shell removal: After solidification, the ceramic is broken away to reveal the casting.
- Cutoff and finishing: Individual parts are cut from the tree, gates are ground, and surfaces are finished.
- Inspection: Dimensional checks, surface finish measurement, and non-destructive testing (NDT) are performed.
Die Casting for High-Volume Precision Parts
Die casting suits high-volume production of aluminum and magnesium parts. Molten metal is injected into a hardened steel die at pressures of 10-175 MPa, producing parts with excellent surface finish and dimensional consistency. Cycle times can be as short as 30 seconds per part, making die casting highly cost-effective at volumes above 1,000 pieces.
The key process variables that determine dimensional accuracy include:
- Die temperature and cooling rate
- Metal injection pressure and speed
- Alloy composition and melt cleanliness
- Die design, including gate location and venting
- Ejection timing and part handling
At GC INDUS, we’ve found that combining die casting with secondary CNC machining on critical bearing surfaces and threaded features is the most reliable path to holding ±0.001mm tolerances on high-volume parts. The casting handles the geometry; the machining handles the precision.
Key Benefits of Precision Casting Parts
the practice offer a combination of geometric freedom, material efficiency, and cost-effectiveness that no other manufacturing process matches at equivalent complexity levels.
Design and Manufacturing Advantages
The core advantages of precision casting over machining from solid or fabricating from sheet metal are substantial:
- Complex geometry in one step: Internal cavities, undercuts, thin walls, and organic shapes are achievable without multi-axis machining.
- Material efficiency: Near-net-shape production reduces buy-to-fly ratios dramatically, particularly important for expensive alloys.
- Preserved grain structure: Casting maintains the metal’s directional grain flow, which can improve fatigue resistance compared to machined billet in some applications.
- Scalability: Die casting especially scales from prototype to 100,000+ units without changing the fundamental process.
- Surface finish options: As-cast surfaces from investment casting typically achieve Ra 1.6-3.2 µm without secondary finishing.
Cost and Lead Time Benefits
A well-designed precision casting part typically costs 30-60% less per unit than an equivalent machined-from-billet part at production volumes. The trade-off is tooling investment upfront. Die casting tooling runs $5,000-$50,000 depending on complexity; investment casting tooling is lower, typically $1,000-$15,000.
| Process | Typical Tolerance | Surface Finish (Ra) | Best Volume Range | Tooling Cost |
|---|---|---|---|---|
| Investment Casting | ±0.1–0.25mm | 1.6–3.2 µm | 10–50,000 pcs | $1,000–$15,000 |
| Die Casting | ±0.05–0.15mm | 0.8–1.6 µm | 1,000–500,000 pcs | $5,000–$50,000 |
| Sand Casting | ±0.5–1.0mm | 6.3–25 µm | 1–500 pcs | $500–$5,000 |
| CNC Machined (billet) | ±0.001–0.05mm | 0.2–1.6 µm | 1–5,000 pcs | No tooling |
For engineers evaluating material selection for machined or cast parts, the choice between processes often hinges on annual volume and geometric complexity. Our related guide on material selection for machined parts covers alloy-specific considerations in detail.
Pro Tip: Calculate your break-even volume before committing to die casting tooling. Divide tooling cost by the per-unit savings versus machined billet. Most projects break even between 200 and 800 pieces, depending on part complexity and material cost.
Common Challenges in Precision Casting Parts
this practice introduce specific failure modes that don’t exist in machined parts, and understanding them upfront prevents costly rework and scrapped production runs.
Dimensional and Structural Defects
The most common defects in this method fall into predictable categories:
- Porosity: Gas or shrinkage voids trapped inside the casting reduce structural strength and cause leaks in pressure-containing parts. Porosity is the single most common reason precision castings fail X-ray inspection.
- Dimensional variation from thermal shrinkage: All metals shrink as they solidify. If the shrinkage rate isn’t accurately accounted for in the die or mold design, parts come out undersized or warped.
- Cold shuts: Two streams of molten metal that meet but don’t fully fuse, creating a visible seam and a structural weak point.
- Misrun: Incomplete fill of the mold cavity, usually caused by metal that’s too cool or a mold that’s insufficiently vented.
- Surface inclusions: Ceramic particles from the shell (investment casting) or die lubricant residue (die casting) embedded in the surface.
Process and Supplier Mistakes to Avoid
In practice, many quality failures trace back to decisions made before the first part is cast. A common mistake is specifying tolerances on the casting drawing that are tighter than the process can reliably hold. The result is that the foundry produces parts that technically require machining to hit spec, but the drawing doesn’t call for it, creating a dispute about responsibility.
Another pitfall is skipping design for manufacturability (DFM) review. Draft angles, wall thickness uniformity, and gate placement all affect whether a casting will be dimensionally stable. One project we handled involved a stainless steel investment casting with a 0.8mm wall section adjacent to a 6mm boss. The differential cooling rate caused consistent warpage. A simple geometry modification at the DFM stage would have eliminated the issue entirely.
Supplier qualification is equally critical. ISO 9001 certification establishes a quality management system baseline, but it doesn’t guarantee casting-specific competence. Look for suppliers who can demonstrate process capability data (Cpk values) on critical dimensions, not just inspection records showing pass/fail results.
For teams building quality control checkpoints into their supply chain, our guide on implementing quality control checkpoints provides a practical framework for casting-specific inspection gates.
Best Practices for Precision Casting Parts in 2026
Getting the most from this strategy in 2026 requires aligning design intent, process capability, material properties, and inspection rigor from the earliest stages of a project.
Design and Specification Best Practices
Start with a clear distinction between functional and non-functional surfaces. Apply tight tolerances only where they directly affect assembly, sealing, or load transfer. Over-tolerancing drives cost without improving part performance.
Key design guidelines for this approach:
- Maintain uniform wall thickness where possible; target 3-5mm for aluminum die casting, 2-4mm for investment casting in steel.
- Apply draft angles of at least 0.5-2° on all surfaces parallel to the draw direction to allow clean ejection.
- Avoid sharp internal corners; specify radii of at least 0.5mm to reduce stress concentration and improve metal flow.
- Identify datum features early and carry them through from casting to machining to inspection to ensure measurement consistency.
- Plan secondary CNC operations for critical features from day one, rather than treating them as an afterthought.
Supplier Selection and Quality Assurance
As of 2026, the most reliable precision casting suppliers operate under ISO 9001 quality management systems and, for medical or implantable components, ISO 13485. These certifications aren’t just paperwork. They mandate documented process controls, traceability, corrective action systems, and regular management review, all of which translate directly into casting consistency.
Our team at GC INDUS recommends requiring first article inspection (FAI) reports on all new casting tools, including CMM (coordinate measuring machine) dimensional reports, material certifications, and process parameter records. This upfront investment in documentation prevents the far more expensive problem of discovering dimensional drift after a production run is complete.
For teams working with CNC machining tolerance requirements on cast parts, our guide on CNC machining tolerance and precision explains how to specify machined features on cast substrates without creating conflicting datum references.
Pro Tip: Request Cpk (process capability index) data for critical dimensions, not just inspection pass/fail records. A Cpk above 1.33 indicates a process that holds the tolerance with meaningful margin. Below 1.0 means the process is regularly producing out-of-tolerance parts, even if your sample happened to pass.
Frequently Asked Questions
1. What is the difference between investment casting and die casting for precision parts?
Investment casting uses a consumable wax pattern and ceramic mold, making it ideal for complex geometries and small-to-medium volumes in steel, stainless steel, and superalloys. Die casting uses a reusable steel die and is best for high-volume aluminum and magnesium parts. Die casting offers faster cycle times and lower per-unit cost at volume; investment casting offers greater alloy flexibility and finer detail on complex shapes.
2. What tolerances can precision casting parts achieve?
As-cast investment casting typically holds ±0.1mm to ±0.25mm. Die casting achieves ±0.05mm to ±0.15mm as-cast. With secondary CNC machining on critical features, the practice can reach tolerances as tight as ±0.001mm. The as-cast tolerance depends on part size, alloy, wall thickness, and mold design.
3. Which materials are most commonly used for precision casting parts?
Aluminum alloys dominate die casting due to their low density and good castability. Investment casting commonly uses stainless steel, carbon steel, nickel-based superalloys, and titanium for high-performance applications. Magnesium is used where weight reduction is critical. Material selection should balance mechanical requirements, corrosion resistance, castability, and cost.
4. How do I know if my part is better suited for casting or CNC machining from billet?
Casting is generally more cost-effective when a part has complex internal geometry, thin walls, or production volumes above 500 pieces. CNC machining from billet suits low-volume, very tight-tolerance parts or designs that change frequently. Many high-precision components use both: casting for the net shape and CNC machining for critical surfaces. Our guide on material selection for machined parts covers this decision in detail.
5. What quality certifications should a precision casting supplier hold?
At minimum, look for ISO 9001 certification, which establishes a documented quality management system. For medical device components, ISO 13485 is required. Aerospace suppliers should hold AS9100 certification. These certifications ensure traceability, process control, and corrective action systems are in place, which directly affects the consistency of this practice across production runs.
6. What are the most common defects in precision casting parts and how are they detected?
The most common defects are porosity (gas or shrinkage voids), cold shuts (incomplete metal fusion), dimensional variation from thermal shrinkage, and surface inclusions. Detection methods include X-ray inspection (for internal porosity), dye penetrant testing (for surface cracks), CMM dimensional measurement, and visual inspection. A rigorous first article inspection process catches most defects before production volume begins.
7. Can precision casting parts be used in medical device manufacturing?
Yes. this method are used in surgical instruments, implant housings, and diagnostic equipment. Medical applications require ISO 13485-certified manufacturing, full material traceability, biocompatibility verification for the alloy used, and comprehensive inspection documentation. Stainless steel and titanium investment castings are the most common choices for medical precision parts due to their corrosion resistance and biocompatibility.
8. What is a typical lead time for precision casting parts?
Lead times vary by process and complexity. New tooling for die casting typically takes 4-8 weeks; investment casting tooling runs 2-4 weeks. Production lead times after tooling approval are generally 3-6 weeks for investment casting and 2-4 weeks for die casting at standard volumes. Parts requiring extensive secondary CNC machining, heat treatment, or surface finishing add 1-3 weeks. Communicating your timeline early allows the supplier to schedule resources accordingly.
Conclusion
this strategy sit at the intersection of geometric complexity and dimensional accuracy, offering capabilities that neither machining nor standard casting can match on their own. The process works best when design, material selection, tooling, and inspection are treated as a single integrated system rather than sequential handoffs between departments or suppliers.
The gap between a casting that passes first article inspection and one that causes field failures often comes down to decisions made in the first two weeks of a project: tolerance assignment, DFM review, datum selection, and supplier qualification. Get those right, and precision casting delivers reliable, repeatable parts at a cost that machining from billet simply can’t match at volume.
GC INDUS produces this approach in aluminum, magnesium, iron, steel, and stainless steel, with secondary CNC machining, heat treatment, surface finishing, and full inspection protocols under one roof. We hold tolerances to ±0.001mm on critical features and operate under ISO 9001 and ISO 13485 quality management systems. Whether you need a single prototype or a high-volume production run, our team is ready to review your design and provide a fast, detailed quote.
