How to Set Quality Control Checkpoints That Work

Why Quality Control Checkpoints Make or Break Your Production

The fastest way to destroy a production run is to discover a defect at the end of it. That’s exactly why manufacturers who implement quality control checkpoints at defined stages consistently outperform those who rely on end-of-line inspection alone. A checkpoint-based approach catches problems while they’re still cheap to fix, before labor, materials, and time have been piled onto a part that was never going to pass.

This guide walks you through a practical, step-by-step process for setting up quality control checkpoints in a manufacturing environment. You’ll learn how to map critical control points (CCPs), define measurable acceptance criteria, design inspection procedures, train personnel, and use data to improve over time. The process applies whether you’re running CNC machining, die casting, injection molding, or sheet metal fabrication. This is particularly relevant for implement quality control checkpoints.

Difficulty level: Intermediate. Time to implement a basic checkpoint system: two to four weeks for a single production line. Time to see measurable defect reduction: typically within the first production cycle after rollout.

What You’ll Need: Prerequisites and Tools

Before you implement quality control checkpoints, you need a clear picture of your process, your standards, and your measurement capability. Missing any of these three foundations produces checkpoints that look good on paper but fail in practice.

Knowledge and Documentation Prerequisites

• A current process flow diagram or value stream map of your production line
• Engineering drawings or specifications for the part or product being manufactured
• Applicable industry standards (ISO 9001:2015 for general manufacturing, ISO 13485 for medical devices, IATF 16949 for automotive)
• Historical defect data, customer complaints, or nonconformance reports from previous production runs
• Defined tolerance ranges for all critical dimensions (e.g., ±0.001mm for tight-tolerance machined parts)

Tools and Equipment You’ll Need

• Precision measurement instruments: calipers, micrometers, CMMs (coordinate measuring machines), optical comparators, or surface profilometers, depending on your tolerance requirements
• Statistical process control (SPC) software or a structured spreadsheet for recording and charting inspection data
• A digital or paper-based checklist template for each checkpoint stage
• A nonconformance management system (NCR forms or a quality management software module)
• Trained inspection personnel with documented competency records

According to Avila University’s project management quality control guide, successful QC begins with comprehensive quality planning that clearly defines requirements and establishes measurable quality criteria before production starts [1]. Skipping this planning phase is the single most common reason checkpoint systems fail in their first month.

Step 1: Map Your Production Process and Identify Critical Control Points

Mapping your process is the foundation of every effective quality control checkpoint system. You can’t place a checkpoint where you don’t know what’s happening, and you can’t prioritize inspection effort without understanding where defects actually originate.

How to Build Your Process Map

1. List every production operation in sequence, from raw material receipt through final packaging or shipment.
2. Identify transformation steps where the part physically changes (machining, casting, forming, coating, assembly).
3. Mark handoff points where a part moves between operators, machines, or departments.
4. Flag historical failure points using your nonconformance reports or customer complaint data.
5. Classify each step as low, medium, or high risk based on defect frequency and downstream impact.

A critical control point (CCP), in manufacturing quality management, is any step where a failure to meet specification will directly result in a nonconforming product reaching the next stage or the customer. Not every operation is a CCP. Trying to inspect everything equally spreads your inspection resources too thin and actually reduces overall quality assurance effectiveness. When considering implement quality control checkpoints, this point stands out.

Pro Tip: Use a simple risk matrix to score each process step: multiply defect probability (1-5) by severity of impact (1-5). Any step scoring 15 or above should automatically receive a dedicated checkpoint. This keeps your system lean and focused on what actually matters.

According to SafetyCulture’s guide on in-process quality control, strategically selecting checkpoints to monitor key variables at critical stages is more effective than blanket inspection across all operations [2]. The goal is maximum defect detection with minimum inspection overhead.

A precision manufacturing client we worked with recently had a 4% scrap rate on a CNC-turned stainless steel component. After mapping their process, they discovered that 80% of their scrap originated from a single turning operation where tool wear wasn’t being monitored. One targeted checkpoint, checking tool condition every 50 cycles, dropped their scrap rate to under 0.5% within a month.

Step 2: Define Measurable Quality Standards and Tolerances

Every quality control checkpoint must have a numeric, objective pass/fail criterion. Vague standards like “good surface finish” or “acceptable dimensions” produce inconsistent inspection results and make it impossible to track improvement over time.

Setting Quantitative Acceptance Criteria

For each CCP identified in Step 1, define the following:

• Nominal value: the target dimension, weight, hardness, or functional parameter
• Tolerance range: the maximum allowable deviation in either direction (e.g., ±0.001mm for tight-tolerance machined features)
• Measurement method: the specific instrument and procedure used to verify the characteristic
• Sample size and frequency: how many parts are checked and how often (every part, every 10th part, every shift)
• Disposition rule: what happens when a part fails (rework, scrap, quarantine, engineering review)

Industry analysts consistently note that tolerance definition is where most quality plans break down. The Six Sigma quality control plan framework emphasizes that measurable control limits are the backbone of any effective QC plan, because they convert subjective judgment into objective data [3].

Aligning Standards to Your Certification Requirements

Your acceptance criteria must align with the regulatory framework that governs your product:

• ISO 9001:2015: requires documented criteria for product acceptance at planned stages
• ISO 13485:2016: adds specific requirements for medical device manufacturers, including traceability and sterility verification checkpoints
• IATF 16949:2016: automotive-specific requirements including FMEA-driven control plans and MSA (measurement system analysis)
• AS9100D: aerospace standard requiring first article inspection and configuration management at checkpoints

At GC INDUS, we’ve found that clients who arrive with fully defined tolerance specifications and clear acceptance criteria reduce their first-article approval time by an average of 40%. The clearer your standards, the faster and more accurately we can validate parts against them.

Pro Tip: Run a Gauge R&R (Repeatability and Reproducibility) study on your measurement instruments before finalizing your acceptance criteria. If your measurement system variation exceeds 10% of the tolerance range, your checkpoint data won’t be reliable regardless of how well-designed the rest of your system is.

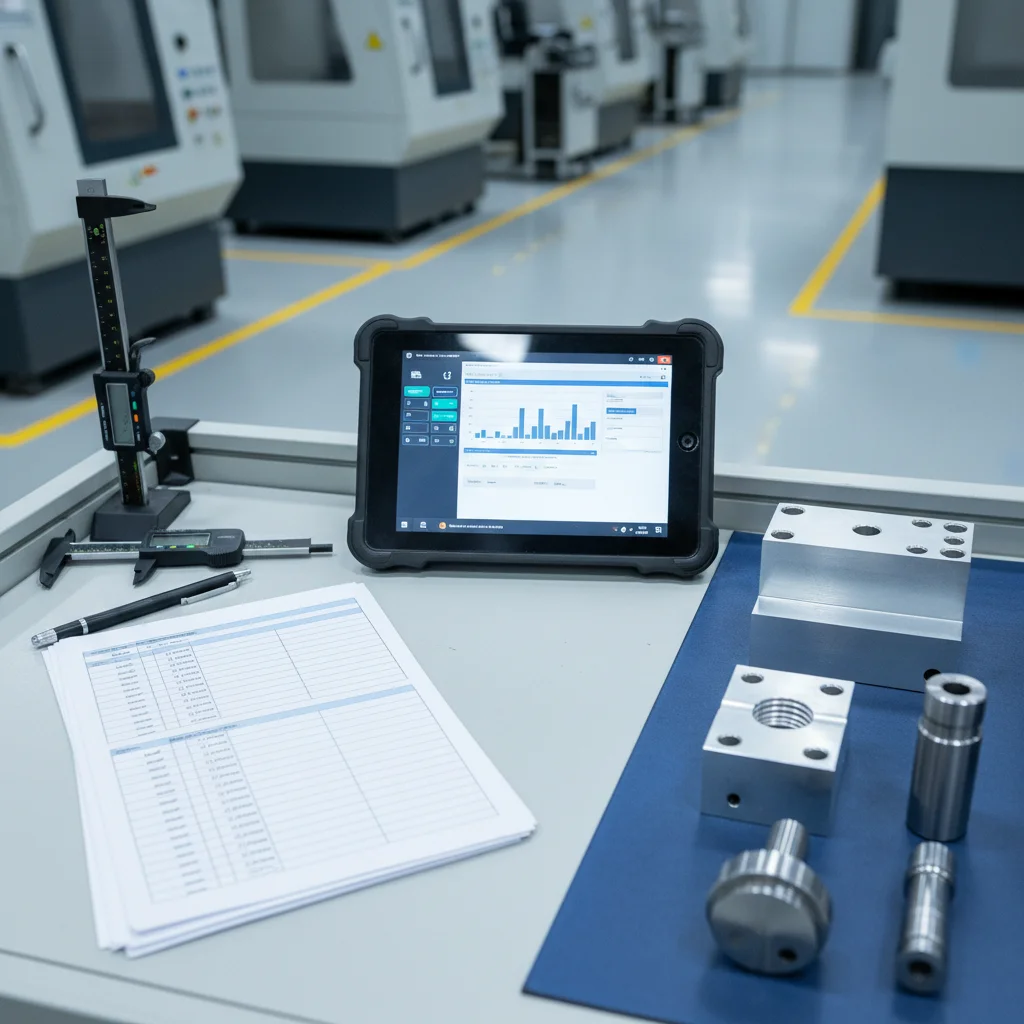

Step 3: Design and Document Each Quality Control Checkpoint

Designing a quality control checkpoint means creating a structured, repeatable inspection procedure that any trained inspector can execute consistently, shift after shift, without relying on individual judgment or memory. For those exploring implement quality control checkpoints, this matters.

The Anatomy of a Well-Designed Checkpoint

Each checkpoint document should contain the following elements:

• Checkpoint ID and name: a unique identifier tied to your process map (e.g., CNC-CP-03 for the third CNC machining checkpoint)
• Location in process: the specific operation or machine where the checkpoint occurs
• Characteristics to inspect: a numbered list of dimensions, surface conditions, or functional parameters to verify
• Measurement instruments required: specific tool models or calibration IDs where relevant
• Acceptance criteria: the pass/fail limits defined in Step 2
• Inspection frequency and sample size: based on risk level and production volume
• Recording method: the form, software field, or digital checklist where results are logged
• Escalation procedure: who to notify and what action to take on a failure

The GoAudits SOP development guide recommends digitizing checklists wherever possible to improve data capture speed, reduce transcription errors, and enable real-time reporting to supervisors [4]. Paper-based systems aren’t inherently wrong, but they create bottlenecks in data analysis and make trend identification slower.

Linking Checkpoints to Your Control Plan

A control plan, as defined by the AIAG (Automotive Industry Action Group) APQP methodology, is the master document that ties all checkpoints together into a coherent quality system. Your control plan should list every checkpoint in sequence, with cross-references to the relevant engineering drawings, FMEAs (Failure Mode and Effects Analyses), and inspection procedures.

According to QualityInspection.org’s guide on quality control plans, a complete control plan maps roles, responsibilities, process workflows, and performance criteria into a single reference document that production and quality teams use daily [5]. Without this integration, individual checkpoints operate in isolation and miss systemic quality trends. This directly impacts implement quality control checkpoints outcomes.

Step 4: Train Your Team and Assign Checkpoint Ownership

A checkpoint system is only as reliable as the people executing it. Training isn’t a one-time event; it’s an ongoing process that builds both technical competency and a quality-first mindset across your production floor.

Structuring Your Training Program

1. Identify all personnel who will perform, supervise, or review checkpoint inspections.
2. Develop role-specific training modules covering measurement techniques, instrument use, checklist completion, and escalation procedures.
3. Conduct hands-on practice sessions using actual parts and instruments from your production line, not just classroom theory.
4. Verify competency through a practical assessment where each inspector demonstrates the correct inspection procedure for each checkpoint they’ll own.
5. Document training records with dates, assessors, and results, as required by ISO 9001 Clause 7.2.
6. Schedule refresher training whenever inspection procedures change, new instruments are introduced, or a recurring nonconformance suggests a training gap.

Assigning Checkpoint Ownership

Every checkpoint needs a named owner: a specific person or role responsible for executing the inspection, recording results, and initiating escalation when failures occur. Ownership without accountability is just paperwork.

• Machine operators typically own in-process checkpoints at their own workstation
• QC inspectors own incoming material, first article, and final inspection checkpoints
• QC engineers or managers own the data review, trend analysis, and corrective action initiation

The MDI manufacturing QA checklist highlights that investing in training and building a quality culture is one of the highest-leverage actions a manufacturer can take, because it transforms checkpoints from a compliance exercise into a genuine defect-prevention system [6].

Pro Tip: Pair new inspectors with experienced ones for their first 20 inspections before allowing solo execution. Inter-rater reliability, meaning two inspectors reaching the same pass/fail conclusion on the same part, should exceed 95% before either inspector works independently. If it doesn’t, your checkpoint procedure needs more specificity.

Step 5: Execute Inspections and Record Results Systematically

Execution is where your checkpoint system produces real value. Consistent, accurate inspection data is the raw material for every quality improvement decision you’ll make going forward. This is particularly relevant for implement quality control checkpoints.

Running Inspections Correctly

When executing a quality control checkpoint inspection:

1. Verify instrument calibration status before beginning. An out-of-calibration gauge invalidates every measurement taken with it.
2. Follow the checkpoint procedure exactly as documented. Deviations, even well-intentioned ones, introduce variability that corrupts your data.
3. Record actual measured values, not just pass/fail notations. Raw data enables trend analysis; binary pass/fail records don’t.
4. Segregate and tag nonconforming parts immediately using a physical quarantine area and a nonconformance tag or NCR form.
5. Complete the inspection record in real time, not from memory at the end of a shift.

According to Quality Magazine’s analysis of quality-first process control strategies, in-process inspections that record actual measurement values (rather than just pass/fail) enable manufacturers to detect drift before it produces defects, which is the defining advantage of a proactive checkpoint system [7].

Using SPC to Detect Drift Before Defects Occur

Statistical Process Control (SPC) is a methodology that uses control charts to monitor process output over time and signal when a process is trending toward its tolerance limits before parts actually go out of spec. Key SPC tools include:

• X-bar and R charts: monitor the mean and range of measured values over time
• Cpk (process capability index): quantifies how well your process fits within the tolerance range (a Cpk of 1.33 or higher is the general industry target)
• Control limits: statistically derived upper and lower bounds (typically ±3 sigma) that trigger investigation when crossed

In one project we handled for a medical device component manufacturer, adding SPC charts to three in-process checkpoints identified a gradual spindle wear trend that would have produced out-of-tolerance parts within 48 hours. The early warning allowed a scheduled tool change rather than an emergency production stop and scrap event. When considering implement quality control checkpoints, this point stands out.

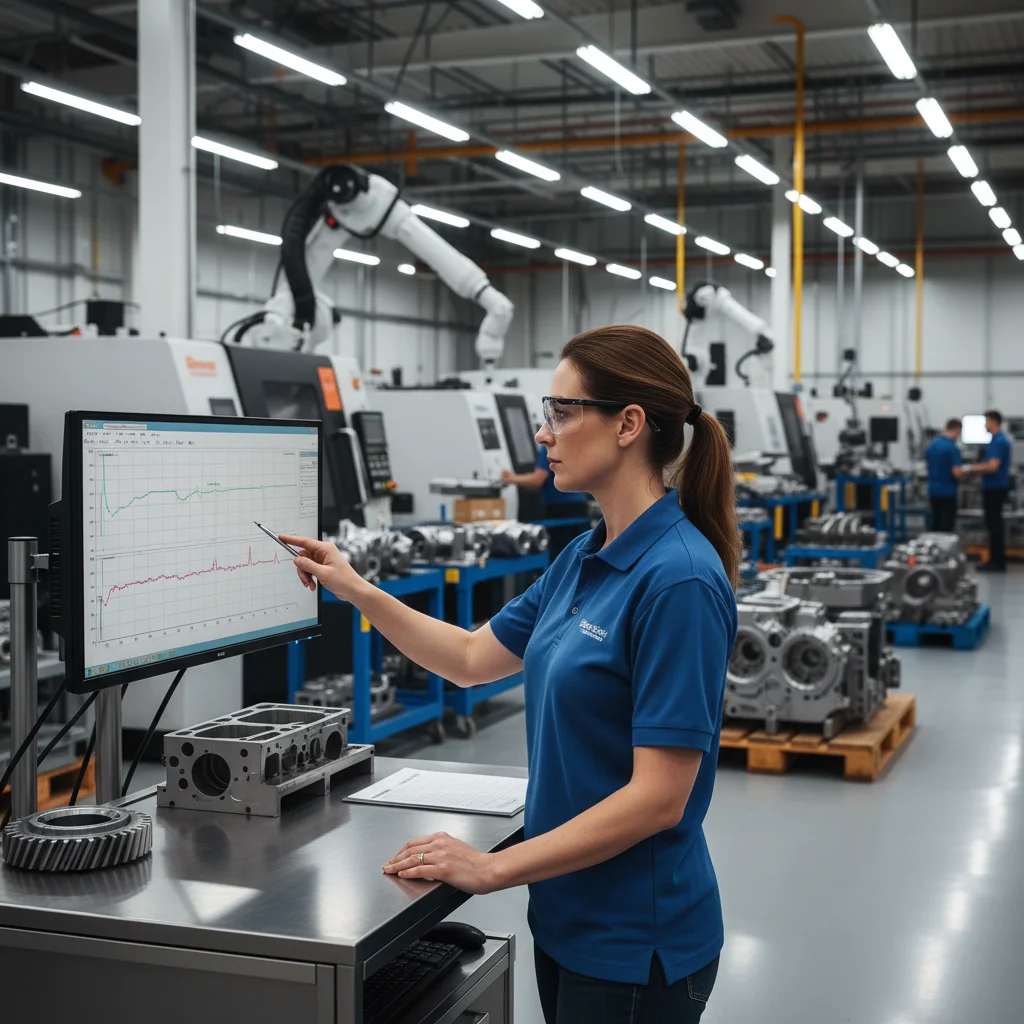

Step 6: Analyze Data and Drive Continuous Improvement in 2026

Collecting checkpoint data without analyzing it is the manufacturing equivalent of taking a patient’s temperature and then throwing the thermometer reading away. The data your checkpoints generate is your most valuable quality improvement asset.

Structuring Your Quality Review Cadence

• Daily: review SPC charts and nonconformance counts from the previous shift; address any out-of-control signals immediately
• Weekly: review defect trends by checkpoint, part number, and operator; identify the top three recurring nonconformances
• Monthly: conduct a formal quality review meeting with production, engineering, and quality leadership; review Cpk trends and corrective action status
• Quarterly: assess overall checkpoint system effectiveness; update control plans based on new data and any engineering changes

Applying Root Cause Analysis to Checkpoint Failures

When a checkpoint repeatedly catches the same defect type, the correct response isn’t to increase inspection frequency. It’s to eliminate the root cause. Use structured root cause analysis tools:

• 5-Why analysis: ask “why” five times in sequence to trace a defect back to its systemic origin
• Fishbone (Ishikawa) diagram: categorize potential causes across the 6M framework (Machine, Method, Material, Man, Measurement, Mother Nature)
• FMEA update: revise your FMEA to reflect newly identified failure modes and update control plan checkpoint requirements accordingly

The ZEISS metrology quality control guide notes that adding checkpoints at different production stages lets manufacturers separate and repair defects before they propagate, but root cause elimination is what permanently reduces defect rates rather than just catching them more efficiently [8].

Research published on IEEE Xplore regarding quality assurance checkpoints in the project lifecycle confirms that systematic checkpoint data review, benchmarked against defined quality targets, is the mechanism that converts a static inspection system into a dynamic improvement engine [9]. For those exploring implement quality control checkpoints, this matters.

Common Mistakes to Avoid When You Implement Quality Control Checkpoints

Most checkpoint system failures aren’t caused by bad intentions. They’re caused by predictable, avoidable design and execution errors that repeat across facilities and industries.

The Most Costly Checkpoint Mistakes

• Placing checkpoints only at the end of the line. Final inspection catches defects after all production value has been added. Moving checkpoints upstream to in-process stages reduces the cost of each defect caught by 60-80% on average, because rework or scrap is performed before additional machining, coating, or assembly has been applied.
• Using vague acceptance criteria. “Good appearance” or “within spec” without a numeric definition produces inspector-to-inspector variation that makes your checkpoint data meaningless. Every criterion must be quantified.
• Skipping measurement system validation. A common mistake is assuming that because a caliper is calibrated, it’s fit for purpose. Gauge R&R studies confirm whether your measurement system has sufficient resolution and repeatability for the tolerance you’re trying to verify.
• Treating checkpoints as a compliance exercise. When operators see checkpoints as paperwork rather than defect prevention, they rush through them, record estimated values, or skip steps under production pressure. This requires a culture intervention, not a procedure update.
• Failing to close the loop on nonconformances. Catching defects at checkpoints without initiating formal corrective actions (8D, CAPA) means the same defects recur indefinitely. Every NCR needs a root cause and a verified corrective action.
• Not updating checkpoints after engineering changes. One pitfall to watch for is a checkpoint system that was designed for last year’s part revision and hasn’t been updated to reflect the current drawing. Outdated checkpoints can approve parts that don’t meet current specifications.

The Manifestly production line quality control checklist framework emphasizes that effective checkpoints require both the right structure and consistent execution discipline, and that neither alone is sufficient [10].

Sources and References

1. Avila University, “Project Managers Guide to Quality Control in Management,” 2026
2. SafetyCulture, “A Guide to In Process Quality Control,” 2026
3. 6Sigma.us, “How to Create an Effective Quality Control Plan in Six Sigma,” 2025
4. GoAudits, “How to Develop and Implement QA and QC SOPs,” 2026
5. QualityInspection.org, “Quality Control Plan: Definition, Examples, and How to Write One,” 2026
6. MDI, “QA Checklist: Prevent More, Fix Faster in Manufacturing,” 2026
7. Quality Magazine, “Implementing a Quality-First Process Control Strategy,” 2026
8. ZEISS Metrology, “5 Steps to Identify and Improve Quality Control Issues,” 2026
9. IEEE Xplore, “Setting Quality Assurance Checkpoints within the Project Life Cycle,” 2022
10. Manifestly, “Production Line Quality Control Checklist,” 2026

Frequently Asked Questions

1. What is a quality control checkpoint?

A quality control checkpoint is a predetermined, documented stage within a production or service process where inspectors verify that work-in-progress meets defined specifications before advancing to the next operation. Unlike end-of-line inspection, checkpoints are positioned at multiple stages, including incoming material, first article, and in-process production, so defects are caught when they’re still inexpensive to correct. Each checkpoint has explicit acceptance criteria, a designated inspector, and a defined response procedure for failures.

2. How do you create a quality control checklist?

Start by identifying the specific part, process, or operation the checklist will govern, then list every characteristic that must be verified at that stage (dimensions, surface finish, material properties, functional performance). For each characteristic, specify the measurement method, the instrument required, the acceptance tolerance, and the sample size. Assign a responsible inspector, define the pass/fail recording format, and include an escalation path for nonconformances. Digitizing the checklist improves data capture speed and enables real-time trend analysis. Validate the checklist with a pilot run before deploying it in production. This directly impacts implement quality control checkpoints outcomes.

3. What are the 4 pillars of quality assurance?

The four pillars of quality assurance are Quality Planning (defining standards and processes before production begins), Quality Assurance (systematic process audits to confirm procedures are being followed correctly), Quality Control (inspection and testing of actual outputs against defined acceptance criteria), and Quality Improvement (using data from audits and inspections to permanently eliminate root causes of defects). These four pillars work as a cycle: planning sets the target, assurance monitors the method, control verifies the output, and improvement raises the baseline for the next cycle. ISO 9001:2015 structures its requirements around all four pillars.

4. What are QC checkpoints in manufacturing?

In manufacturing, QC checkpoints are structured inspection gates embedded throughout the production sequence rather than concentrated only at the end. They typically include incoming material inspection (verifying raw material or purchased component conformance), first article inspection (confirming the first part produced from a new setup meets all drawing requirements), in-process inspection (monitoring dimensions and characteristics during machining, forming, or assembly), and final or pre-shipment inspection (verifying finished goods against customer specifications before release). The goal is to implement quality control checkpoints that prevent defective parts from accumulating added-value operations, which reduces the total cost of quality significantly.

5. How often should quality control checkpoints be performed?

Checkpoint frequency depends on the risk level of the operation, the historical defect rate, and the cost of a defect escaping to the next stage. High-risk operations with tight tolerances (such as CNC turning of medical device components to ±0.001mm) may require inspection of every part or every fifth part. Lower-risk operations with a stable process history may use AQL-based sampling, inspecting a statistically defined sample from each production lot. As of 2026, many manufacturers use SPC data to dynamically adjust inspection frequency: when a process is stable and capable (Cpk above 1.67), sampling frequency can be reduced; when control chart signals indicate drift, frequency increases automatically.

Conclusion: Build a Checkpoint System That Actually Works

The steps covered here give you a complete framework to implement quality control checkpoints that catch defects early, generate actionable data, and drive measurable improvement over time. The process isn’t complicated, but it does require discipline: clear standards, documented procedures, trained personnel, and a genuine commitment to closing the loop on every nonconformance.

To summarize the six steps:

1. Map your process and identify critical control points
2. Define numeric acceptance criteria and tolerance ranges
3. Design and document each checkpoint procedure
4. Train your team and assign clear ownership
5. Execute inspections consistently and record actual values
6. Analyze checkpoint data and use it to eliminate root causes

Our team at GC INDUS recommends this approach because it’s the same framework we apply internally across our CNC machining, die casting, and injection molding operations. We hold tolerances to ±0.001mm and maintain ISO 9001 and ISO 13485 certifications because our checkpoint system isn’t a compliance formality. It’s the operational backbone of every part we ship. If you’re sourcing precision components and want a manufacturing partner whose quality gates are this rigorous, GC INDUS is ready to demonstrate that with data. This is particularly relevant for implement quality control checkpoints.
