Automotive Zinc Die Casting Parts: A Complete Guide

Your OEM client just sent over a component drawing with a wall thickness of 0.8mm, a complex undercut geometry, and a surface finish requirement that rules out most casting methods. Automotive zinc die casting parts are the answer. These are precision-engineered metal components produced by injecting molten zinc alloy under high pressure into hardened steel dies, used throughout vehicle interiors, drivetrains, safety systems, and increasingly in electric vehicle (EV) platforms. They combine dimensional accuracy, excellent surface quality, and cost efficiency in a way few other manufacturing processes can match.

This guide covers everything you need to know: how the process works, which alloys to specify, where zinc outperforms aluminum, what pitfalls to avoid when sourcing, and what best practices leading manufacturers follow as of 2026.

What Are Automotive Zinc Die Casting Parts?

Automotive zinc die casting parts are metal components made by forcing molten zinc alloy into precision steel molds at pressures between 1,000 and 30,000 psi, producing near-net-shape parts with tight tolerances and excellent surface detail. The process is governed by standards including SAE J469, which defines zinc die casting alloy compositions and mechanical properties [1].

Where These Parts Appear in a Vehicle

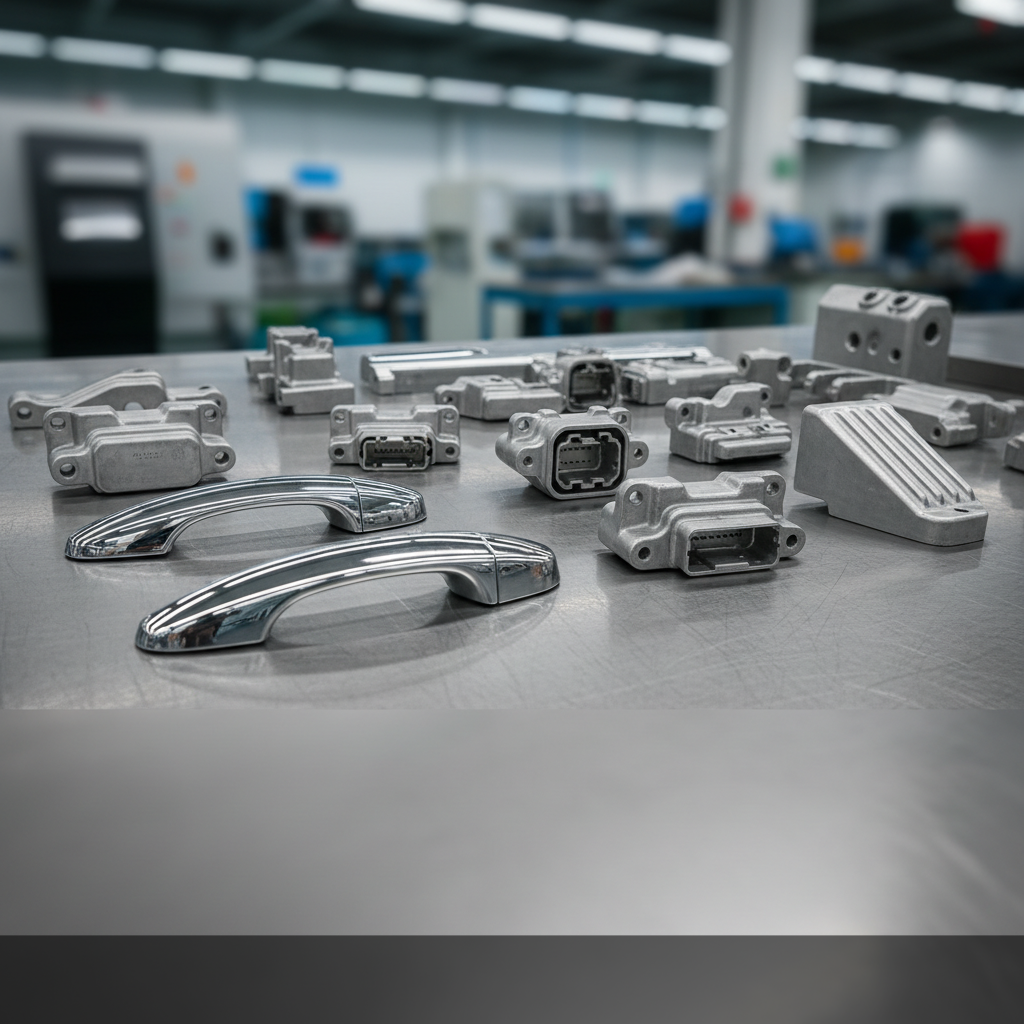

Zinc die castings appear throughout a modern vehicle. The range is wider than most engineers initially expect.

• Interior hardware: Door handles, window lift mechanisms, seat belt buckles, instrument panel bezels, and steering column components
• Exterior trim: Grille badges, mirror housings, roof rail brackets, and decorative moldings
• Safety systems: Lock cylinders, anti-theft locking mechanisms, airbag sensor housings, and seatbelt retractor parts
• Powertrain and underhood: Fuel pump bodies, carburetor components (in non-EV applications), and transmission valve bodies
• EV-specific applications: Connector housings, motor sensor brackets, charging port hardware, and battery management system enclosures

According to the North American Die Casting Association’s automotive archives, zinc die cast components have long been used in gearbox shift levers and locking systems, with some parts originally designed in aluminum later converted to zinc for improved machinability and tighter tolerances [2].

The Alloys Behind the Parts

The Zamak family (from the German acronym for zinc, aluminum, magnesium, and copper) dominates automotive zinc die casting. Each grade serves a different purpose.

Industry analysts note that Zamak 3 accounts for roughly 70% of all zinc die casting production globally, largely because of its balance between castability, dimensional stability, and post-process finishing compatibility [3].

How Zinc Die Casting Works: The Process Explained

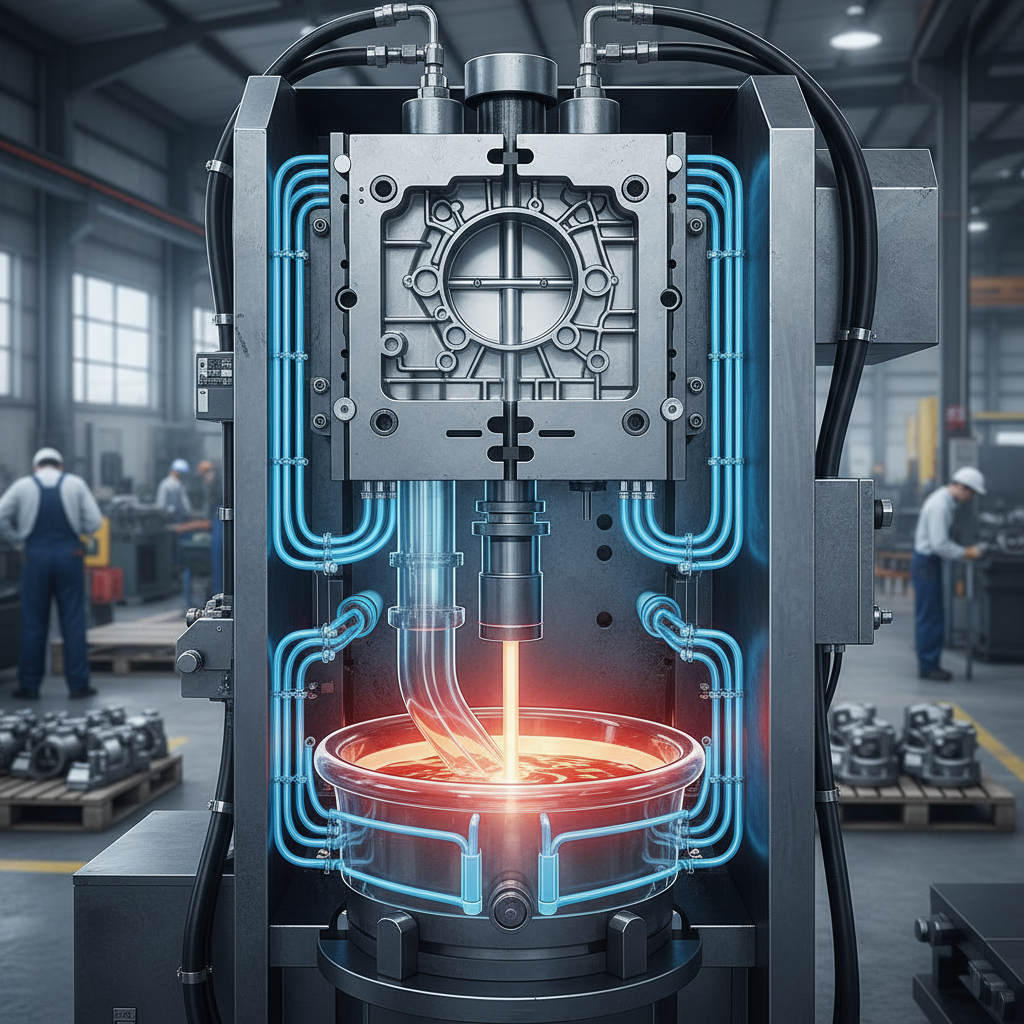

Zinc die casting uses the hot chamber process, where the injection mechanism sits submerged in molten zinc alloy, enabling fast, automated cycles with cycle times as short as a few seconds per part. This is the fundamental reason zinc die casting delivers lower per-unit costs than most competing metal forming methods.

Step-by-Step: Hot Chamber Die Casting

1. Alloy preparation: Zinc ingots are melted in a furnace attached to the casting machine, held at approximately 420°C (788°F). Precise temperature control prevents oxidation and maintains alloy chemistry within SAE J469 specifications [1].
2. Injection: A hydraulic piston forces molten zinc through a gooseneck channel and nozzle into the hardened H13 tool steel die at high pressure. Fill times are typically 10-100 milliseconds.
3. Solidification: The zinc solidifies rapidly in the water-cooled die. Zinc’s low melting point means short cooling cycles, typically 5-30 seconds depending on part geometry and wall thickness.
4. Ejection: Ejector pins push the solidified casting from the die. The part retains the exact geometry of the die cavity, including fine surface texture and lettering if specified.
5. Trimming: Flash (thin excess material at parting lines) is removed by trimming dies or manual deflashing.
6. Post-processing: Parts move to CNC machining for critical bore diameters or threaded features, then to surface treatment (plating, painting, powder coating) as required.

According to the Die Casting organization’s zinc resource guide, zinc castings can be manufactured with smooth or textured surfaces and are compatible with a wide range of finishing processes including chrome plating, powder coating, and anodizing [4].

Tooling and Die Life

Zinc’s low casting temperature significantly extends die life compared to aluminum or magnesium. A well-maintained zinc die casting tool can produce 500,000 to 1,000,000 shots before requiring refurbishment. This amortizes tooling cost across large production volumes, making the per-part cost highly competitive for medium-to-high volume automotive programs.

Pro Tip: Specify H13 hot work tool steel for your zinc die casting dies and request a die life guarantee in your supplier contract. A reputable manufacturer should commit to a minimum shot count before die repair is needed — typically 500,000+ for zinc.

The Wikipedia entry on die casting confirms that zinc is noted for promoting long die life among all castable metals, a direct consequence of its relatively low processing temperatures [5].

Key Benefits of Automotive Zinc Die Casting Parts

Automotive zinc die casting parts offer a combination of dimensional precision, surface quality, production speed, and finishing versatility that is difficult to match with any other metal forming process at equivalent part complexity.

Performance and Production Advantages

• Thin-wall capability: Zinc can be cast in wall thicknesses as thin as 0.4mm, enabling lightweight, compact designs that aluminum cold chamber casting cannot reliably achieve at equivalent complexity.
• Near-net-shape production: Parts come out of the die with minimal material removal required, reducing machining costs and material waste.
• Excellent surface finish: As-cast surface roughness of Ra 0.8-1.6μm is achievable, making zinc ideal for visible interior trim and chrome-plated exterior components [4].
• High impact strength: Zamak alloys deliver impact strength values that outperform most aluminum die casting alloys at equivalent wall thickness.
• Dimensional stability: Zinc does not shrink significantly upon solidification, which means parts hold their specified dimensions reliably across production runs.
• Fast cycle times: Hot chamber processing produces parts in seconds, supporting high-volume automotive supply schedules.
• Excellent machinability: Post-cast CNC operations (boring, threading, reaming) are fast and produce long tool life, reducing secondary operation costs.

Research from PHB Inc.’s analysis of zinc die casting in automotive highlights that zinc’s high fluidity allows manufacturers to fill intricate die geometries that would trap air or cold-shut in less fluid alloys, directly enabling more complex part designs [6].

Finishing and Aesthetic Flexibility

Zinc’s surface quality makes it the preferred substrate for decorative automotive finishes. The Zinc Die Casting finishes resource notes that zinc castings can be finished to resemble solid gold, weathered brass, stainless steel, and even leather textures through electroplating and specialty coatings [7]. This is why zinc dominates automotive interior hardware where appearance matters as much as function.

Pro Tip: If your automotive part requires chrome electroplating, specify Zamak 7. Its higher purity and ductility produce a smoother plating substrate, reducing plating defect rates and rejection costs compared to Zamak 3 or Zamak 5.

In one project we handled at GC INDUS, an automotive interior supplier needed door handle escutcheons with chrome plating that had to pass 96-hour salt spray testing per ISO 9227. Switching from Zamak 3 to Zamak 7 and optimizing gate location reduced plating rejects by over 30%, cutting the client’s total cost per part despite the slightly higher alloy cost.

Zinc vs. Aluminum Die Casting for Automotive Applications

Zinc and aluminum are the two dominant die casting metals in automotive manufacturing, and choosing between them depends on part size, wall thickness, mechanical requirements, and finishing needs. Neither is universally superior — the right choice is application-specific.

A Direct Comparison

For automotive engineers sourcing connector housings, locking mechanisms, or interior trim hardware, zinc is typically the right choice. For suspension brackets or engine structural components where weight reduction is the primary driver, aluminum wins. In practice, many vehicle programs use both — zinc for the hardware and aluminum for the structure.

Manufacturers looking for specialized zinc die casting expertise for automotive brackets and hardware can also explore resources at senejac.com, which provides additional context on precision metal component sourcing for automotive supply chains.

At GC INDUS, we’ve found that the most common material selection mistake is specifying aluminum for small, complex parts under 200 grams simply because “aluminum is lighter.” For parts in that size range, the weight difference is negligible, but the tooling cost, cycle time, and surface finish advantages of zinc are significant.

Common Challenges and How to Avoid Them in 2026

Automotive zinc die casting parts face several recurring quality and process challenges that, if not addressed early, result in costly rework, delayed launches, or field failures. Understanding these pitfalls is as important as understanding the process itself.

Process and Material Pitfalls

• Zinc pest (intergranular corrosion): Zinc pest is a form of corrosion that occurs when zinc alloys contain excessive lead, cadmium, or tin impurities. Affected parts develop cracks and disintegrate over time. The fix is strict alloy purity control — specify “Special High Grade” (SHG) zinc feedstock and verify supplier certificates of conformance. SAE J469 defines acceptable impurity limits [1].
• Porosity: Trapped gas or shrinkage voids weaken parts and cause plating defects. Porosity is controlled through gate and runner design, vacuum-assisted die casting, and proper venting. Request X-ray or CT scanning inspection for safety-critical parts.
• Cold shuts: These are linear defects caused by two metal flow fronts meeting before fully solidifying. They result from incorrect injection speed, die temperature, or gate location. Simulation software (such as MAGMASOFT or ProCAST) identifies cold shut risk before tooling is cut.
• Dimensional drift over production life: As dies wear, critical dimensions can drift outside tolerance. Implement statistical process control (SPC) with regular dimensional audits — at minimum every 50,000 shots.
• Corrosion in humid environments: Zinc alloys are susceptible to corrosion in salt spray and high-humidity conditions without adequate surface protection. For underhood or exterior applications, specify appropriate plating or coating thickness per the vehicle’s environmental specification.

Sourcing and Supply Chain Risks

• Suppliers without ISO 9001 certification often lack the documented process controls needed to maintain consistent alloy chemistry and dimensional repeatability across high-volume automotive runs.
• Low-cost suppliers may use recycled zinc with uncontrolled impurity levels, creating zinc pest risk that only manifests years after vehicle delivery.
• Single-source tooling without a backup die creates supply chain vulnerability. For critical parts, consider dual-cavity tooling or a qualified secondary supplier.

A manufacturing client recently faced a production hold when their zinc door handle castings failed chrome adhesion testing. Root cause analysis revealed the supplier had switched to a lower-purity zinc feedstock without notification. This is exactly why incoming material certification and alloy verification should be contractual requirements, not optional.

Pro Tip: Always require a First Article Inspection (FAI) report per AS9102 or equivalent automotive PPAP (Production Part Approval Process) documentation before approving a zinc die casting supplier for series production. This catches dimensional and metallurgical issues before they reach your assembly line.

Best Practices for Sourcing Automotive Zinc Die Casting Parts in 2026

Sourcing automotive zinc die casting parts effectively in 2026 means evaluating suppliers on precision capability, quality systems, material traceability, and their ability to support your full production lifecycle from prototype to volume.

What to Look for in a Manufacturer

• ISO 9001 certification: The baseline quality management requirement. Confirms documented process control, corrective action systems, and customer satisfaction processes are in place.
• IATF 16949 certification: The automotive-specific quality standard. Suppliers with this certification have demonstrated compliance with automotive customer-specific requirements and APQP (Advanced Product Quality Planning) methodologies.
• In-house CNC machining: Many zinc castings require secondary machining for critical bores, threads, or mating surfaces. A supplier with integrated CNC capability (milling, turning, boring) reduces lead time and eliminates inter-supplier dimensional variation.
• Full inspection capability: CMM (Coordinate Measuring Machine) inspection, surface roughness measurement, and alloy verification (XRF analysis) should all be available in-house.
• Flexible MOQ: Prototype and pre-production phases require small quantities. Suppliers who enforce high minimum order quantities (MOQ) create cost barriers during development. Look for partners who accept orders from 1 piece.
• Surface treatment in-house: Plating, powder coating, and painting done at the same facility reduces logistics complexity and quality risk.

Design for Manufacturability (DFM) Checklist

Good DFM (Design for Manufacturability) practice during the design phase prevents the most common zinc die casting defects before tooling is committed.

1. Maintain uniform wall thickness where possible (target 1.5-3.0mm for most automotive zinc parts)
2. Add draft angles of at least 1-2° on all vertical walls to allow clean ejection
3. Avoid sharp internal corners — specify minimum radii of 0.5mm to reduce stress concentrations and porosity
4. Position parting lines to minimize flash on functional or visible surfaces
5. Locate gates away from critical dimensional features to avoid turbulence-induced porosity
6. Specify tolerance grades realistically — not every feature needs ±0.05mm; over-tolerancing drives up cost

Our team at GC INDUS recommends submitting a STEP or IGES file for DFM review before committing to tooling. A thorough DFM review typically identifies 3-5 design changes that reduce tooling complexity, improve part quality, or reduce cycle time — often saving more than the cost of the review itself.

According to RapidDirect’s analysis of zinc die casting in automotive, zinc auto parts are particularly compatible with hot chamber die casting due to their low melting temperature and fine surface finish requirements, making them a natural fit for interior and safety hardware applications [8].

For additional context on zinc die casting applications in the automotive supply chain, the Bruschi technical resource on zinc die casting in automotive provides a useful overview of component categories from interior aesthetics to underhood mechanical parts [9].
