Titanium Machined Components: A Complete Guide

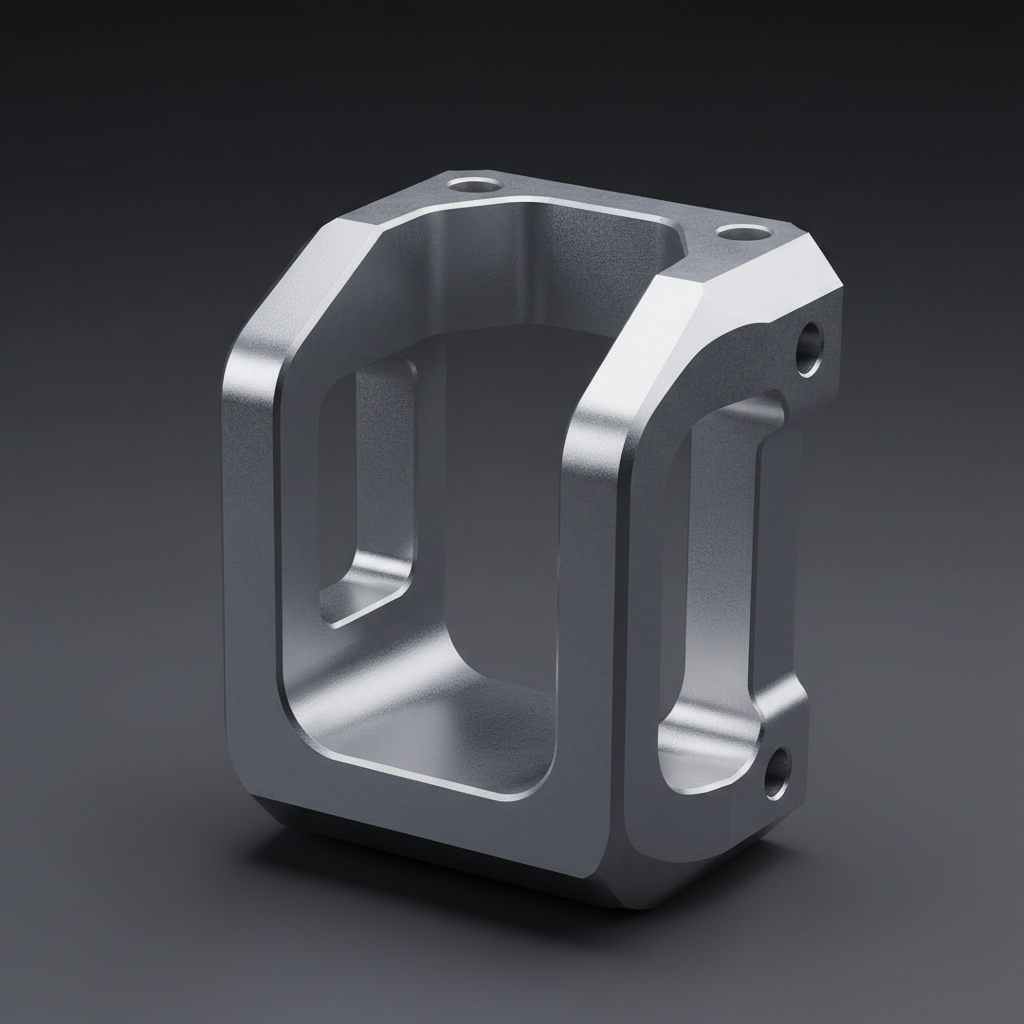

Your aerospace client just spec’d a structural bracket in Ti-6Al-4V. Your medical device OEM needs bone implants with sub-micron surface finishes. Both orders demand titanium machined components — and both will expose every weakness in your manufacturing process. Titanium machined components are precision-engineered parts produced from titanium or its alloys using CNC machining processes such as milling, turning, and 5-axis cutting. They combine titanium’s unmatched strength-to-weight ratio and corrosion resistance with the dimensional accuracy that modern industries require. This guide covers everything: grades, machining processes, real-world challenges, and the best practices that separate acceptable parts from truly excellent ones.

What Are Titanium Machined Components?

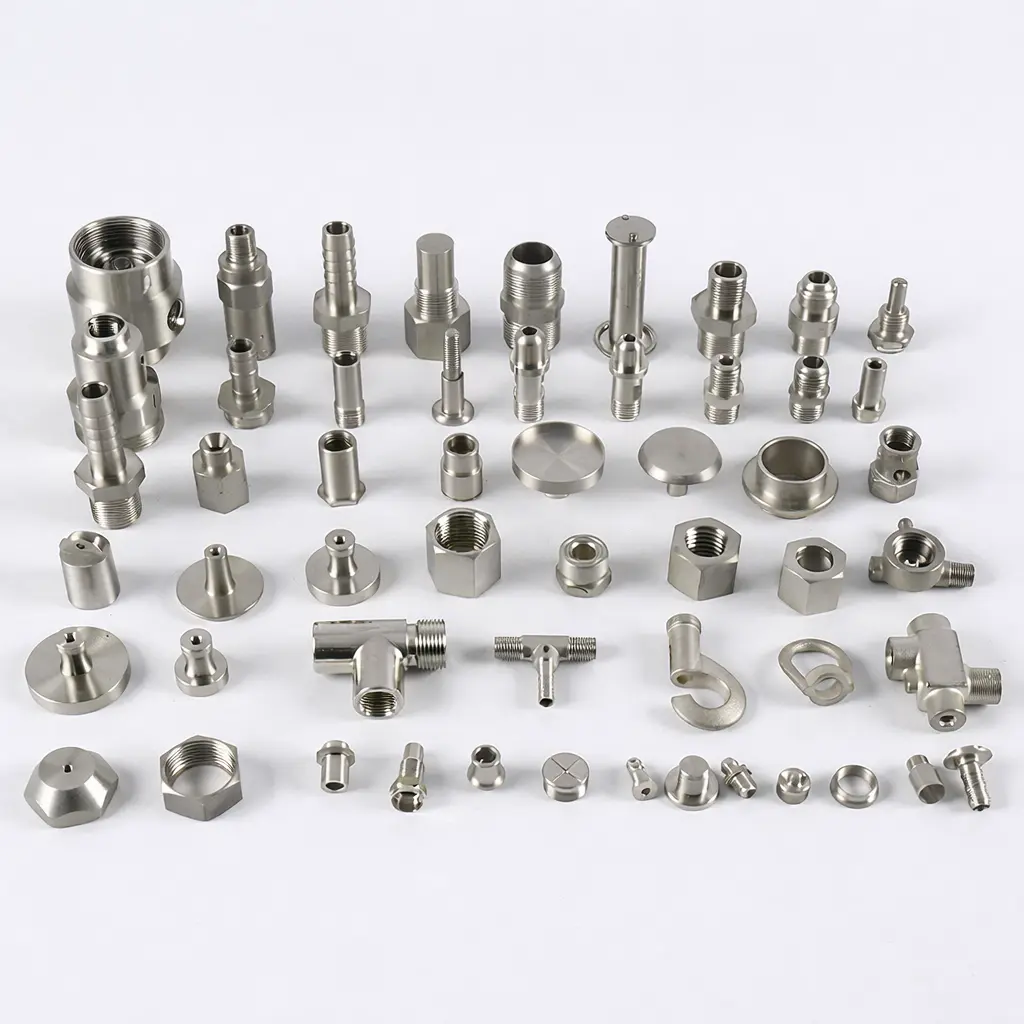

Titanium machined components are custom-engineered parts cut, milled, or turned from titanium stock using precision CNC equipment. They serve demanding applications where other metals simply don’t measure up — from aircraft bulkheads to orthopedic implants.

Definition and Material Context

Titanium (Ti, atomic number 22) is a transition metal prized for its exceptional strength-to-weight ratio, outstanding corrosion resistance, and biocompatibility. As a raw material for machining, it comes in several commercially pure grades and alloy grades, each with distinct properties [1].

The most widely machined grades include:

• Grade 1 (CP Ti): Softest, most ductile, used in chemical processing and marine applications.
• Grade 2 (CP Ti): The most common commercially pure grade, balancing strength and workability.
• Grade 4 (CP Ti): Highest strength among commercially pure grades; used in medical implants and aerospace fasteners.
• Grade 5 (Ti-6Al-4V): The industry workhorse — 6% aluminum, 4% vanadium — accounting for roughly 50% of all titanium use globally [2].
• Grade 23 (Ti-6Al-4V ELI): Extra-low interstitial variant of Grade 5, preferred for surgical implants due to improved fracture toughness.

Industries That Rely on Titanium Parts

Demand for titanium machined components spans multiple sectors. Each industry values different properties of the material:

According to the Society of Manufacturing Engineers (SME), more difficult titanium grades such as Ti-10-2-3 and Ti-5-5-5-3 are increasingly being machined as manufacturers push performance boundaries in aerospace and defense [3].

How Titanium Machining Works

Machining titanium requires specialized processes, cutting parameters, and tooling strategies that differ significantly from working with aluminum or stainless steel. The material’s unique physical properties drive every decision on the shop floor.

Core Machining Processes Used for Titanium

Most titanium machined components are produced using one or more of the following CNC processes [4]:

1. CNC Milling: Rotary cutting tools remove material from a fixed workpiece. Multi-axis milling (3-axis to 5-axis) allows complex geometries. 5-axis CNC is particularly effective for titanium aerospace parts that require undercuts and compound angles.
2. CNC Turning: The workpiece rotates against a stationary cutting tool. Used for cylindrical titanium parts such as shafts, bushings, and fasteners.
3. Swiss Lathe Machining: A Swiss-type lathe guides the workpiece through a guide bushing, enabling extremely tight tolerances on long, slender titanium parts like surgical screws and pins.
4. EDM (Electrical Discharge Machining): Uses controlled electrical sparks to erode material without mechanical cutting forces. Particularly useful for hard titanium alloys where conventional tooling struggles.
5. Grinding: Abrasive wheel finishing achieves tight dimensional tolerances and fine surface finishes on titanium components after primary machining.
6. Wire Cutting (Wire EDM): Cuts intricate profiles in titanium plate with high precision, ideal for dies, fixtures, and complex 2D profiles.

Pro Tip: For titanium parts with deep cavities or thin walls, 5-axis CNC machining reduces the number of setups required. Fewer setups mean fewer opportunities for cumulative positional error — which matters enormously when you’re holding tolerances of ±0.001mm.

Cutting Parameters and Tooling

Titanium demands conservative cutting speeds. Research published in the National Institutes of Health (PMC) confirms that titanium alloys are difficult to machine due to their low thermal conductivity and high chemical reactivity with tool materials [5]. Heat doesn’t dissipate into the chip — it concentrates at the cutting edge, accelerating tool wear.

Effective tooling strategies for titanium include:

• Carbide end mills with sharp edges and appropriate coatings (TiAlN or AlCrN coatings resist heat buildup)
• High-pressure coolant delivery (70+ bar) to flush chips and manage heat at the cutting zone
• Lower cutting speeds (typically 30–60 m/min for Ti-6Al-4V) compared to aluminum (300–600 m/min)
• Higher feed rates relative to depth of cut to keep the cutting edge engaged and avoid work hardening
• Positive rake angle geometry tools to minimize cutting forces

According to the ASM International Digital Library, titanium’s tendency to spring back elastically after cutting also contributes to dimensional inaccuracies if not properly compensated for in the machining program [6].

Key Benefits of Titanium Machined Components

Titanium machined components offer a combination of mechanical and chemical properties that no other single material can match across such a broad range of operating conditions. That’s why engineers specify titanium even when it costs more.

Performance Advantages That Justify the Cost

• Exceptional strength-to-weight ratio: Titanium delivers tensile strengths comparable to many steel alloys at roughly 45% of the weight. For aerospace and automotive applications, this translates directly into fuel savings and payload capacity.
• Superior corrosion resistance: Titanium forms a stable, self-repairing oxide layer that resists attack from seawater, chlorine, acids, and biological fluids. This makes it the material of choice for marine hardware and implantable medical devices [4].
• Biocompatibility: Titanium is non-toxic and osseointegrates naturally with bone tissue. Grade 5 and Grade 23 titanium are extensively used in orthopedic implants, dental fixtures, and surgical instruments.
• High-temperature performance: Titanium retains its mechanical properties at elevated temperatures (up to approximately 600°C for Ti-6Al-4V), making it suitable for jet engine components and exhaust systems [2].
• Excellent fatigue resistance: Titanium has a high fatigue limit relative to its ultimate tensile strength, making it reliable in cyclically loaded applications such as aircraft structural components and prosthetic limbs.
• Non-magnetic properties: Titanium is non-ferromagnetic, which matters for MRI-compatible medical devices and certain electronics applications.

Economic and Lifecycle Considerations

The upfront cost of titanium raw stock is higher than aluminum or steel. However, in practice, the total lifecycle cost often favors titanium. Longer service life, reduced maintenance, and elimination of protective coatings (which titanium doesn’t need) offset initial material costs.

Research from Clemson University’s Open Research Repository notes that while titanium’s machinability is poor compared to aluminum, the performance gains in automotive applications justify the increased processing cost in performance-critical components [7].

Pro Tip: When evaluating titanium vs. alternative materials, compare total cost of ownership — not just raw material price. Factor in coating costs, replacement intervals, and weight-related energy savings over the product’s service life. In many aerospace and medical applications, titanium wins on total cost even when it loses on unit price.

Common Challenges in Titanium Machining

Titanium machined components are harder to produce correctly than parts made from most other common engineering metals. Understanding the specific failure modes helps manufacturers avoid costly rework and scrapped parts.

The Top Machining Challenges Engineers Face

A common mistake is treating titanium like aluminum in terms of cutting parameters. That approach destroys tooling fast and often produces out-of-tolerance parts. Here are the primary challenges:

• Heat generation and poor thermal conductivity: Titanium conducts heat roughly 6 times less effectively than steel. Heat accumulates at the cutting zone, softening the tool and causing built-up edge (BUE), where workpiece material welds to the cutting edge.
• Work hardening: Titanium work-hardens rapidly during machining. If the cutting tool dwells or rubs without cutting, the surface hardens and becomes even more difficult to machine on subsequent passes.
• Tool wear and chemical reactivity: Titanium reacts chemically with many tool materials at elevated temperatures. Carbide tools can experience diffusion wear, and tool life is significantly shorter than when machining aluminum or mild steel [5].
• Chatter and vibration: Titanium’s low modulus of elasticity (roughly half that of steel) means workpieces deflect more under cutting forces. This leads to chatter, which degrades surface finish and dimensional accuracy.
• Chip control: Titanium produces long, stringy chips that can wrap around the tool, cause re-cutting, and create surface damage. Proper chip breaking strategies are essential.
• Fire risk: Fine titanium chips and dust are flammable. Proper coolant management and chip disposal protocols are a safety requirement, not just a quality concern.

A Real-World Scenario

A medical device manufacturer recently approached us with a batch of Ti-6Al-4V bone plate components that had failed dimensional inspection. The root cause: their previous supplier had used standard carbide tooling without high-pressure coolant, causing work hardening on the first pass. Subsequent passes couldn’t hold the specified ±0.005mm profile tolerance on the screw hole pattern.

The fix required re-specifying cutting parameters, switching to coated carbide with TiAlN coating, and introducing 80-bar coolant delivery. From experience, this combination resolves most thermal-related titanium machining problems — but it requires upfront process engineering investment that many job shops skip.

One pitfall to watch for: assuming that slower feed rates always improve quality with titanium. In practice, feeds that are too slow allow the tool to rub rather than cut, accelerating work hardening and tool wear simultaneously [6].

Best Practices for Titanium Machining in 2026

As of 2026, the most effective titanium machining operations combine advanced CNC equipment, rigorous process engineering, and comprehensive quality assurance protocols. Here’s what separates reliable production from inconsistent results.

Process Engineering Fundamentals

1. Select the right grade early: Work with your engineer or supplier to confirm the titanium grade before programming begins. Grade 5 (Ti-6Al-4V) is the most common choice, but Grade 23 is required for implantable medical devices per ISO 5832-3 standards.
2. Optimize cutting parameters for each operation: Use manufacturer-recommended starting parameters for your specific tooling, then dial in through test cuts. Don’t transfer aluminum parameters to titanium jobs.
3. Invest in high-pressure coolant: Minimum 70 bar at the cutting zone is recommended for most titanium milling operations. This reduces tool temperature, extends tool life, and improves chip evacuation.
4. Use sharp tooling and replace proactively: Dull tools accelerate work hardening. Establish tool change intervals based on cut time or part count — not visual inspection alone.
5. Design for machinability: Where possible, specify radii on internal corners (minimum 0.5mm), avoid excessively thin walls (under 0.8mm), and specify achievable tolerances. Unnecessarily tight tolerances on non-functional features drive cost without adding value.

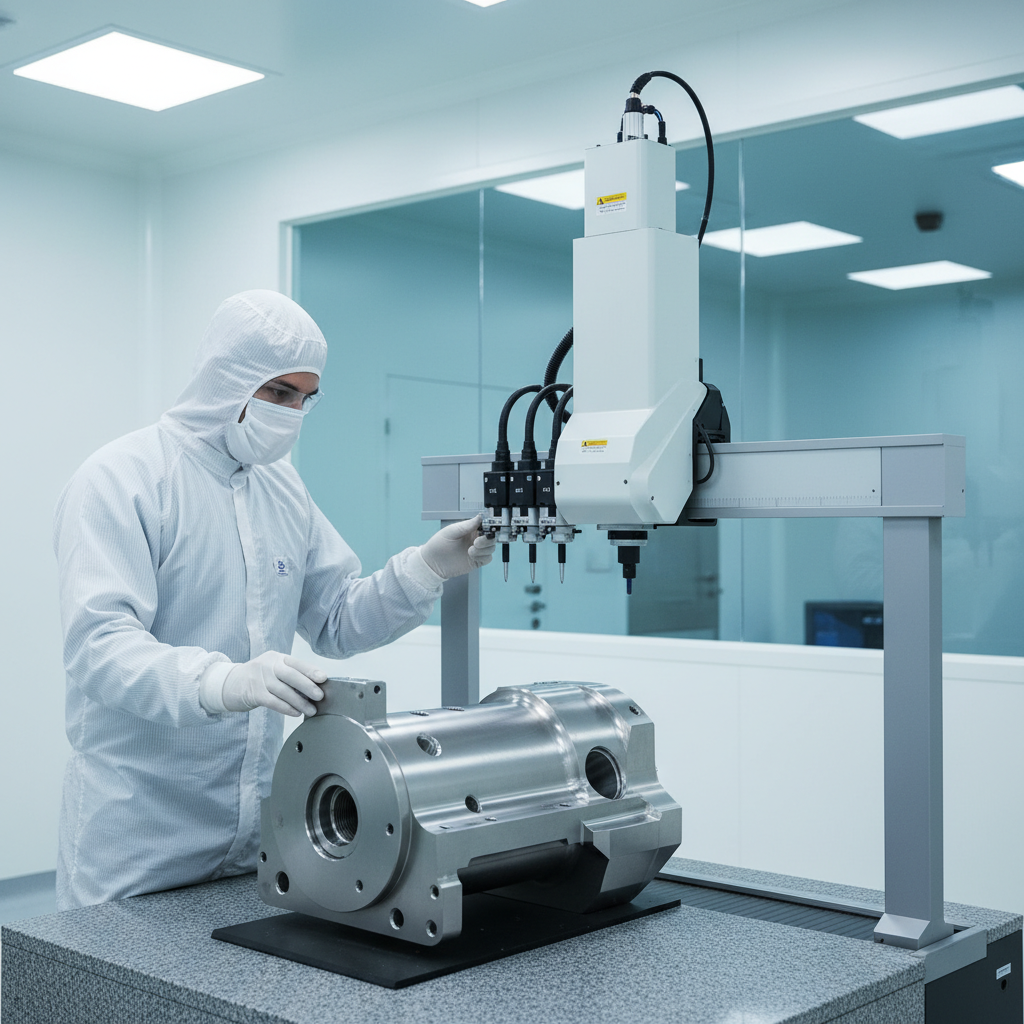

6. Implement in-process inspection: Use probing systems on the CNC machine to verify critical dimensions between operations. Catching drift early avoids scrapping finished parts.

Quality Assurance Standards That Matter

Quality assurance for titanium machined components isn’t optional in regulated industries. Two certifications define the baseline:

• ISO 9001:2015: The international quality management system standard. It establishes process controls, documentation requirements, and continuous improvement frameworks applicable to all precision machining operations.
• ISO 13485:2016: The medical device quality management standard. Required for manufacturers supplying titanium components for implants, surgical instruments, or diagnostic equipment. It adds traceability, risk management, and design control requirements beyond ISO 9001.

At GC INDUS, we’ve found that customers sourcing titanium parts for medical or aerospace applications consistently prioritize suppliers with both certifications. Holding ISO 9001 and ISO 13485 simultaneously signals that quality isn’t a separate function — it’s embedded in every step of production.

Pro Tip: When requesting quotes for titanium machined components, always ask your supplier for their First Article Inspection (FAI) process and Cpk data from previous titanium runs. A supplier who can’t provide process capability data is telling you something important about how they manage variation.

Industry analysts suggest that by 2026, additive manufacturing (AM) hybrid approaches — where titanium parts are near-net-shape printed and then finish-machined to final tolerances — are gaining traction in aerospace [5]. This reduces raw material waste (titanium buy-to-fly ratios in aerospace can exceed 10:1 with conventional machining) while maintaining the dimensional precision that only CNC machining can deliver.

Sources & References

1. ASM International Digital Library, “Machining and Chemical Shaping of Titanium,” ASM Technical Books
2. Protolabs, “Titanium CNC Machining | Service for Custom Parts,” 2026
3. Society of Manufacturing Engineers (SME), “The Evolution of Titanium Machining,” SME.org
4. Peerless Precision, “What It Takes to Excel at Titanium Machining,” Peerless Precision Blog
5. National Institutes of Health (PMC), “The State of the Art in Machining Additively Manufactured Titanium,” PMC10095803
6. ASM International, “Machining and Chemical Shaping of Titanium,” Chapter 2455493
7. Clemson University Open Research Repository, “Investigation of the Machining of Titanium Components,” auto_eng_pub/53
8. MakerVerse, “CNC Machining with Titanium Explained,” MakerVerse Resources
9. Miller CNC, “Precision CNC Machining for Titanium,” MillerCNC.com
10. Cox Manufacturing Company, “Titanium Swiss Screw Machined Parts,” CoxManufacturing.com

Frequently Asked Questions

1. How much is 2 lb of titanium worth?

As of 2026, the raw material cost of 2 lb of titanium varies significantly by grade. Commercially pure Grade 1 and Grade 2 titanium typically runs $6–$10 per pound, putting 2 lb at roughly $12–$20. Grade 5 (Ti-6Al-4V), the most widely used alloy for titanium machined components, commands $10–$16 per pound — so 2 lb costs approximately $20–$32 at the billet level. These are raw stock prices; finished machined parts cost considerably more once you factor in machining time, tooling wear, and quality inspection. Specialty grades like Grade 23 (Ti-6Al-4V ELI) for implants carry a further premium due to tighter chemical composition controls.

2. Where does the US get most of its titanium?

The United States relies heavily on imports for titanium raw materials. As of 2026, the U.S. sources titanium sponge (the primary refined form) primarily from Japan, Kazakhstan, and China, with smaller volumes from Ukraine and other suppliers. The U.S. does not maintain titanium in the National Defense Stockpile, creating supply chain vulnerability that has prompted ongoing domestic production investment. Domestically, ilmenite and rutile (the primary titanium ores) are mined in limited quantities. The aerospace and defense sectors have pushed for supply chain diversification, with some reshoring initiatives underway for critical titanium alloy production as of 2026.

3. What tolerances can be held on titanium machined components?

With advanced 5-axis CNC machining and rigorous process controls, tolerances as tight as ±0.001mm are achievable on titanium parts. Standard CNC turning and milling on titanium typically holds ±0.01mm to ±0.025mm for production runs. Achieving tighter tolerances requires controlled thermal environments, in-process probing, and careful management of titanium’s elastic springback. The specific tolerance achievable depends on part geometry, feature location, and the machining process used — grinding and honing can achieve tighter results than milling alone on critical bore diameters.

4. What is the best titanium grade for CNC machining?

Grade 5 (Ti-6Al-4V) is the most commonly machined titanium alloy, accounting for roughly 50% of all titanium use. It offers an excellent balance of strength, machinability (relative to other titanium alloys), and availability. For medical implants, Grade 23 (Ti-6Al-4V ELI) is preferred due to its improved fracture toughness and biocompatibility per ISO 5832-3. Commercially pure Grade 2 is the easiest to machine and suits applications where maximum strength isn’t required, such as chemical processing equipment and heat exchangers.

5. Why is titanium harder to machine than aluminum?

Titanium is significantly harder to machine than aluminum for three primary reasons. First, titanium’s thermal conductivity is roughly 6 times lower than aluminum’s, so heat generated during cutting stays at the tool-workpiece interface rather than dissipating through the chip. Second, titanium reacts chemically with most tool materials at elevated temperatures, causing accelerated diffusion wear on carbide tools. Third, titanium’s tendency to work-harden means that rubbing — rather than cutting — rapidly increases surface hardness and makes subsequent passes more difficult. These factors combine to make titanium machining roughly 5–10 times slower than aluminum machining at comparable material removal rates.

6. What surface finishes are achievable on titanium machined components?

Surface finish on titanium machined components ranges from Ra 3.2 µm (standard milling) down to Ra 0.2 µm or better with grinding and polishing. For medical implants, surface finish specifications are often defined by ISO 21534 or device-specific standards, with some implant surfaces intentionally textured to promote osseointegration. Anodizing, PVD coating, and passivation are common post-machining surface treatments that enhance corrosion resistance and, in the case of anodizing, add color-coded identification to titanium surgical instruments.

7. How do I choose a reliable supplier for titanium machined components?

Look for suppliers with verified ISO 9001 certification as a baseline, and ISO 13485 if your application is medical. Ask specifically about their titanium machining experience — not just general CNC capability. Request examples of titanium parts they’ve produced in your target grade, and ask for First Article Inspection (FAI) reports and Cpk data. Confirm they have high-pressure coolant capability and 5-axis machining if your parts require it. Flexible minimum order quantities (ideally from 1 piece) matter for prototyping. Finally, verify that they perform full dimensional inspection with calibrated equipment, not just spot checks.

Conclusion

Titanium machined components sit at the intersection of material science and precision manufacturing. They’re not easy to produce — but that difficulty is precisely why they deliver performance that other materials can’t match. From aerospace bulkheads to orthopedic implants, the combination of strength, low weight, corrosion resistance, and biocompatibility makes titanium the specification of choice when failure isn’t an option.

Getting titanium parts right requires the right grade selection, appropriate cutting strategies, high-pressure coolant, sharp tooling, and a quality system that catches problems before they become scrap. It also requires a manufacturing partner who has done this before — repeatedly, under real production conditions.

Our team at GC INDUS recommends working with a supplier who holds both ISO 9001 and ISO 13485 certifications, has documented 5-axis CNC capability, and can support you from a single prototype through full production runs. We machine titanium machined components to tolerances as tight as ±0.001mm, with full inspection protocols and flexible MOQs starting from 1 piece. If you’re specifying titanium parts and need a manufacturing partner who understands the material as well as the deadline, we’re ready to help.
